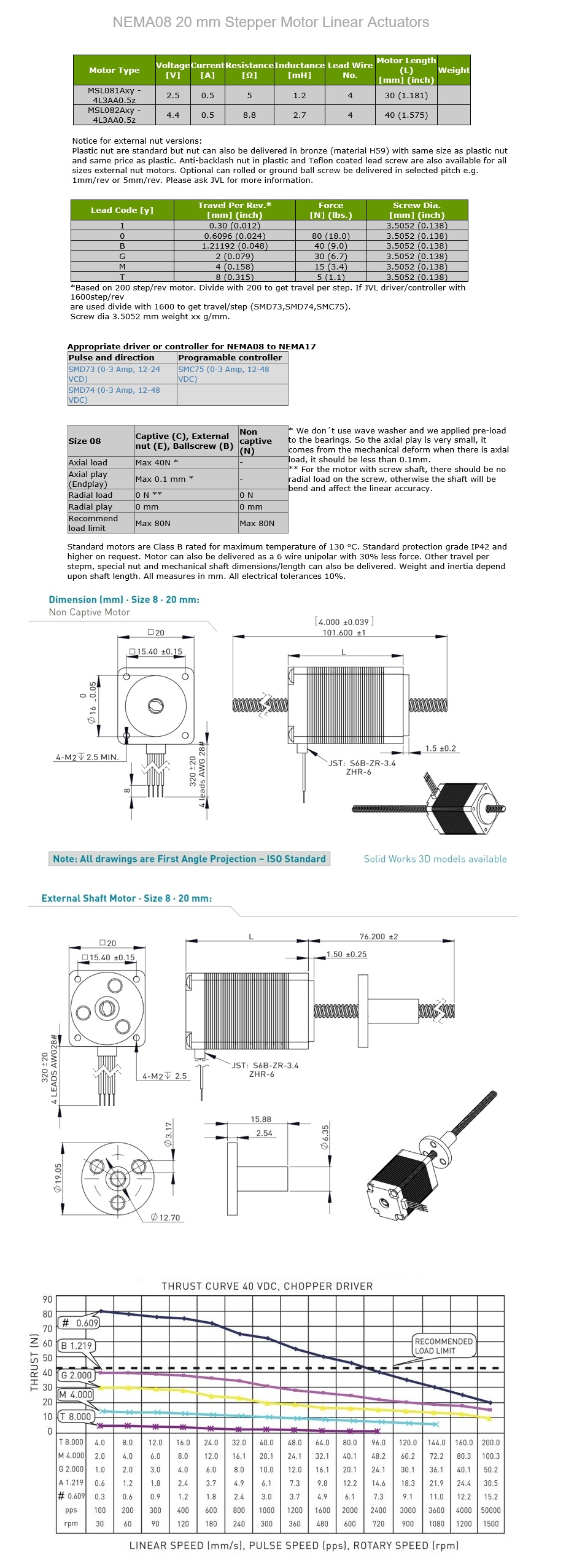

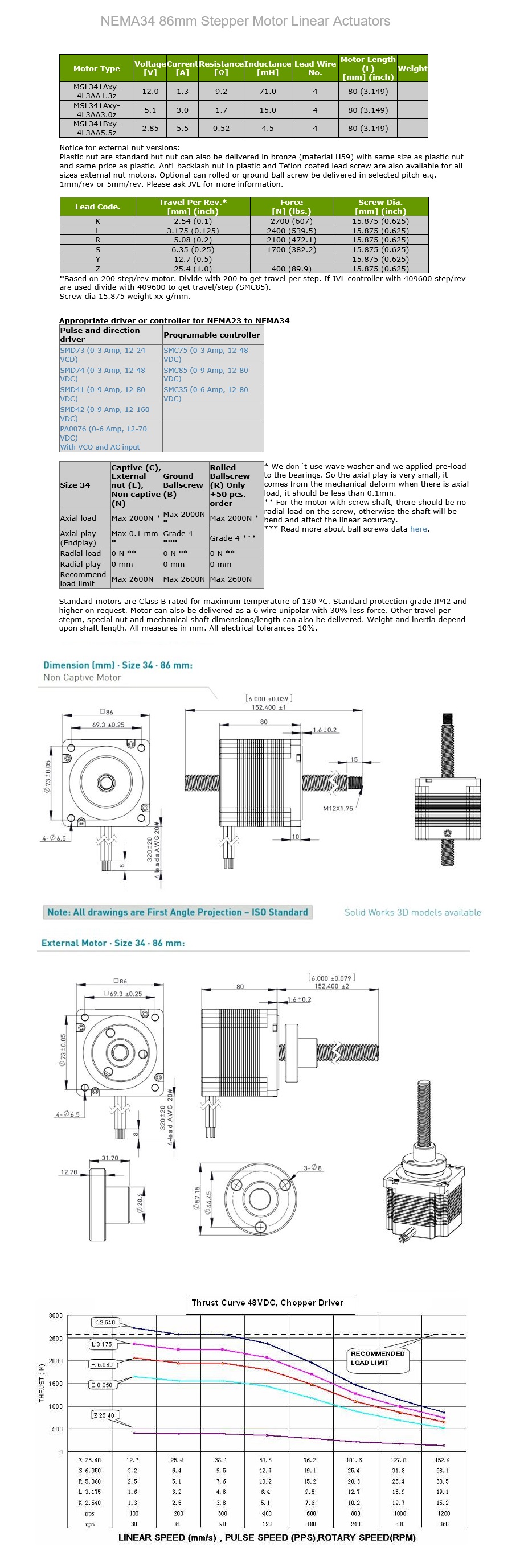

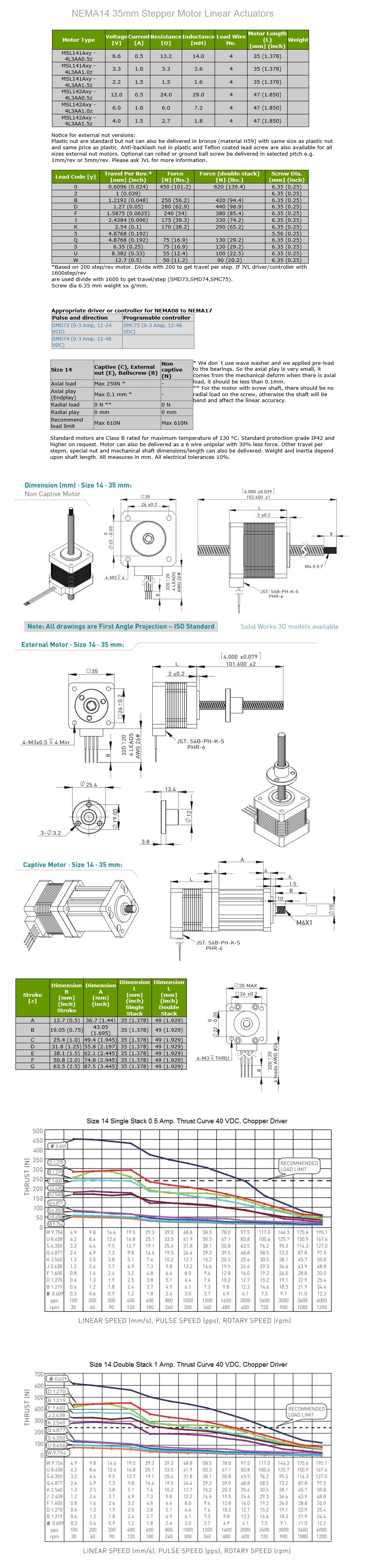

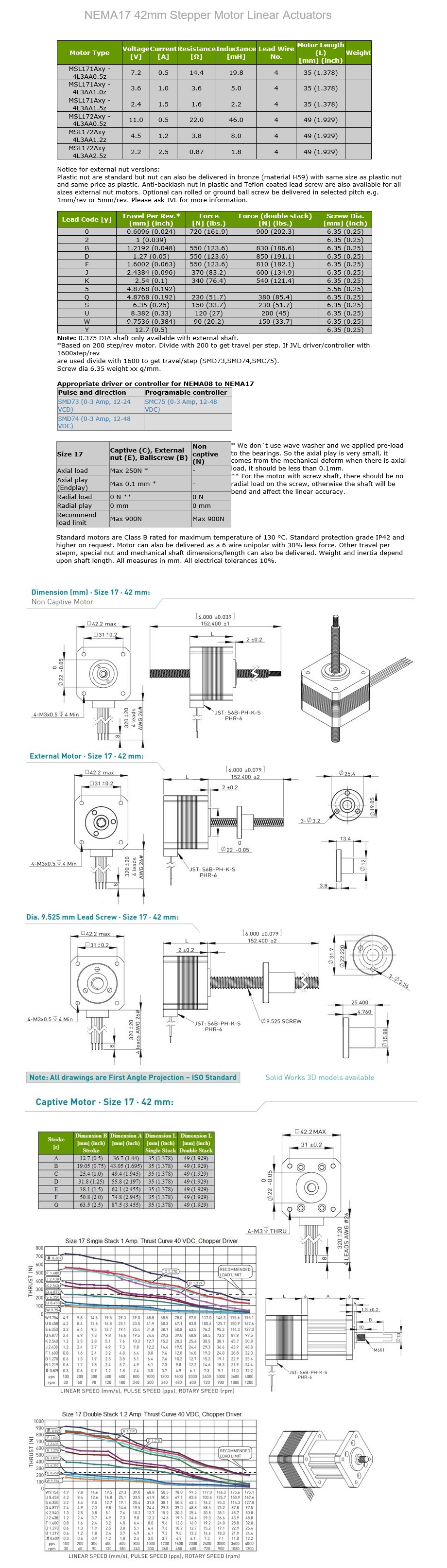

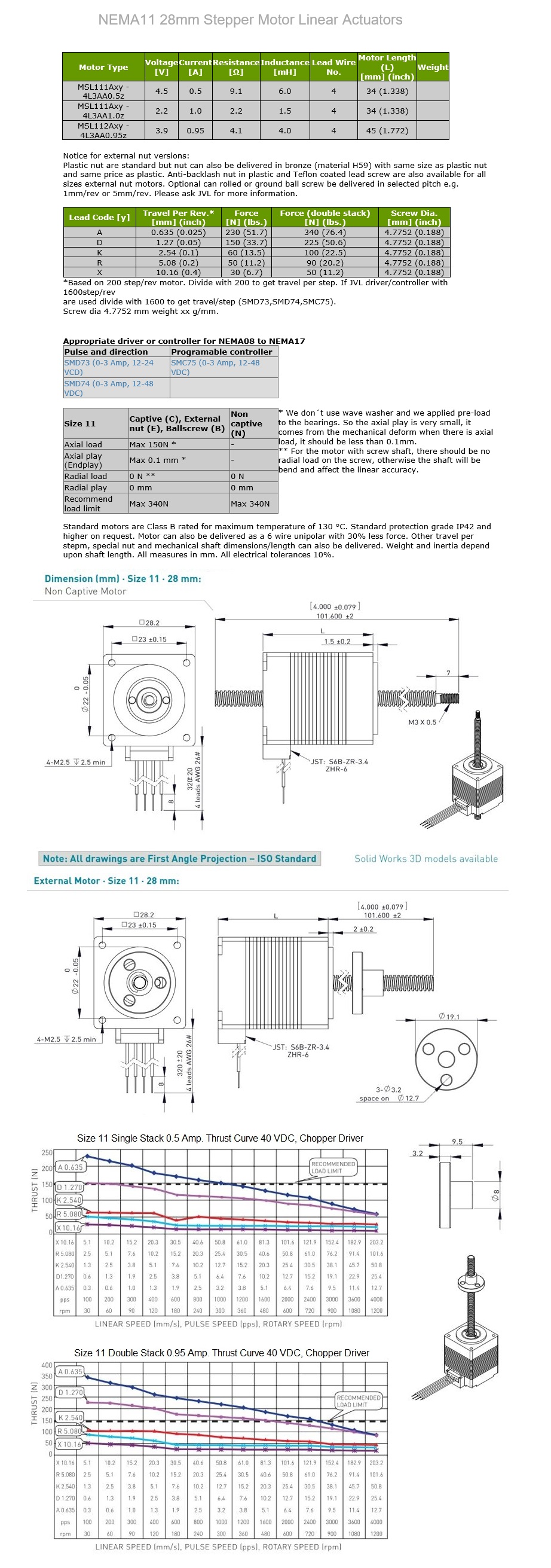

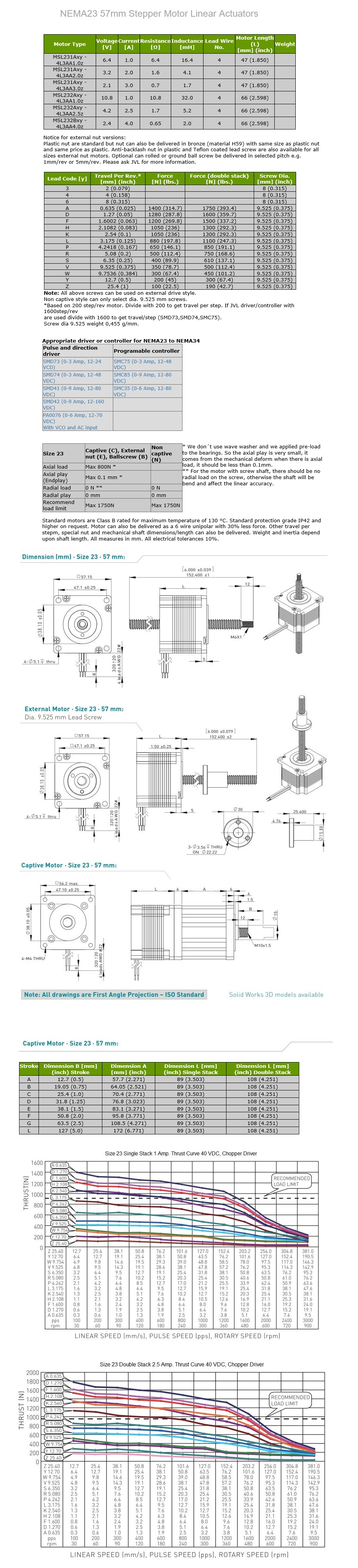

Specifications and Drawings

JVL: Integrated Stepper Motor with Linear Actuator (MSL Series)

Linear stepper motors can dramatically reduce cost and save space. There is no coupling, no additional bearing support and no assembly work required. This not only reduce cost but also reduce failure rate due to the less number of components and more simple construction. In applications with small load ratings a linear guide is also not required. The special design and material of the nut secure long life operation.

Below versions can be delivered upon request

Non-Captive linear actuator with nut inside motor. Linear moving part can rotate so it should be fixed.
External linear actuator. Nut is mounted on lead screw.
Captive (will be available for NEMA34 in the future) and External linear actuator in NEMA size 23 and 34 can be delivered with integrated driver or controller.
Different shaft and stroke length
Precision ball screw
Special nut design
Higher IP protection
