Panasonic: AC Servo Motors (MSMD A4 Series)
Panasonic: AC Servo Motors (MSMD A4 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MSMD


Model No.:

.
Description Specifications and Drawings


Panasonic: AC Servo Motors (MSMD A4 Series)

MSMD-MINAS A4 Series (100-200V)

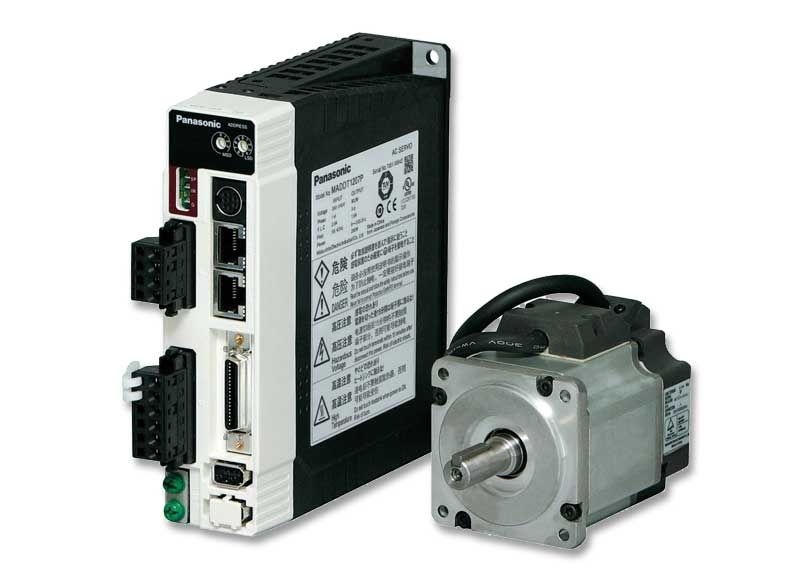

Panasonic’s MINAS A4 series corresponds to even variation of load inertia. Offers real automatic gain tuning to low and high stiffness machines with a combination of an adaptive filter. Supports the vertical axis application where the load torque is different in rotational direction. Prevents the machine from over-traveling during automatic gain tuning with over-travel detecting function. Enables you to set and check while monitoring real-time automatic gain tuning conditions on the front panel.


Features:

  • Power Supply Capacity (kVA): 0.3-1.3

  • Rated Output (W): 50-750

  • Rated Torque (N.m): 0.16-2.4

  • Momentary Max. Peak Torque (N.m): 0.48- 7.1

  • Rated Current (Arms): 1.1- 4.6

  • Max. Current (Ao-p): 4.7- 19.5

  • Rated Rotational Speed (r/min): 3000

  • Max. Rotational Speed (r/min): 4500-5000

  • Static Friction Torque (N.m): 0.29-2.45

  • Engaging Time (ms): 35-70

  • Releasing Time (ms): 20-50

  • Exciting Current (DC) (A): 0.30-0.42

  • Releasing Voltage: DC1V or more

  • Exciting Voltage: DC 24 V ± 5%

  • Mass without Brake (kg): 0.32-2.3


Model No.: MSMD011P1, MSMD011S1, MSMD012P1, MSMD012S1, MSMD021P1, MSMD021S1, MSMD022P1, MSMD022S1, MSMD041P1, MSMD041S1, MSMD042P1, MSMD042S1, MSMD082P1, MSMD082S1, MSMD5AZP1, MSMD5AZS1


Catalog

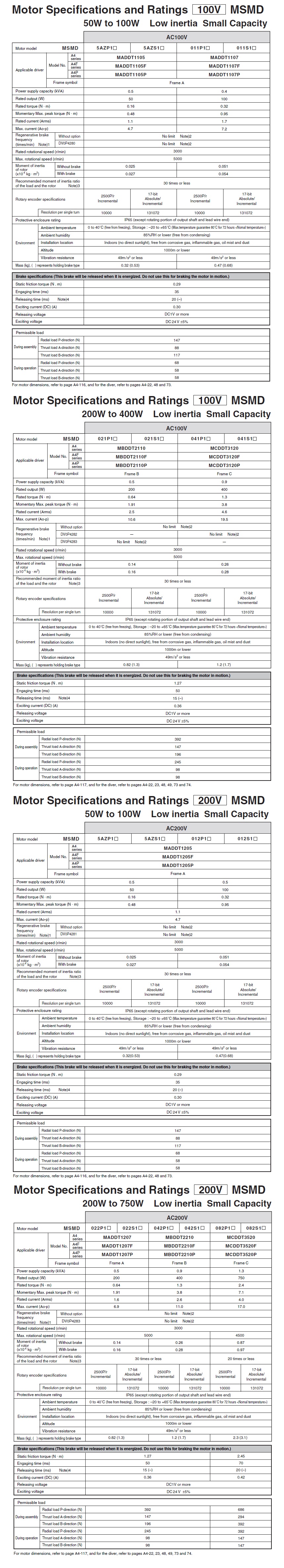

MSMD Specs

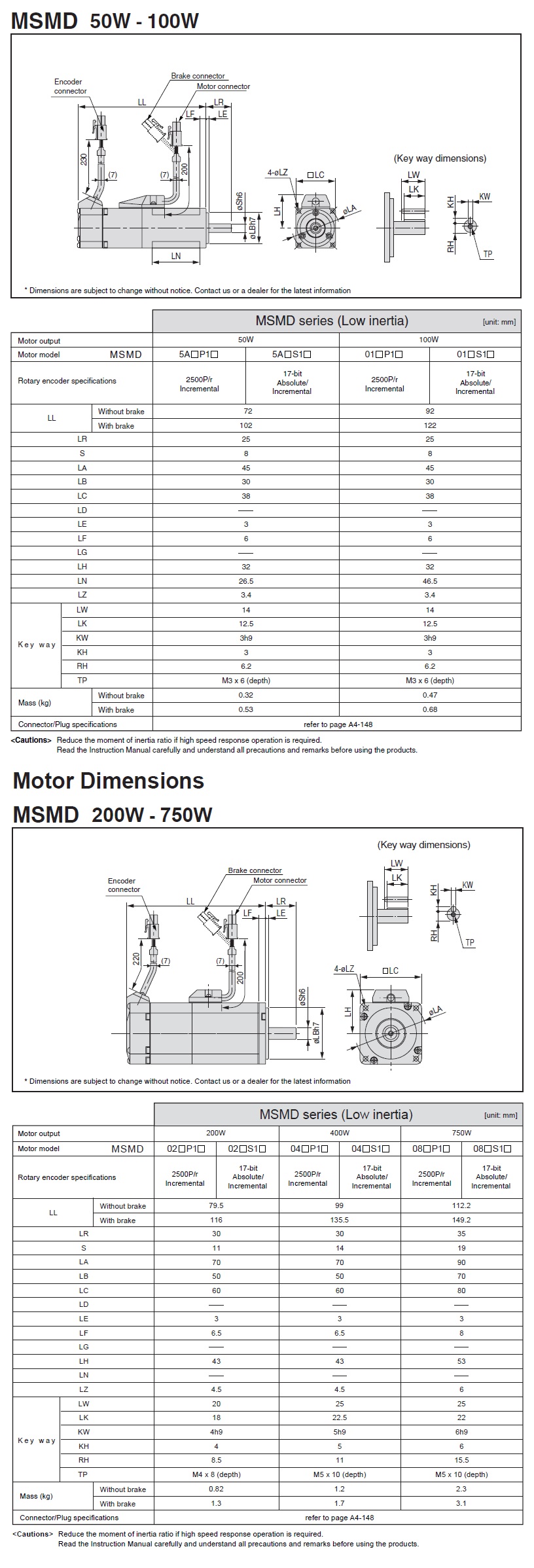

MSMD CAD

Wiring Diagram (1) (2)

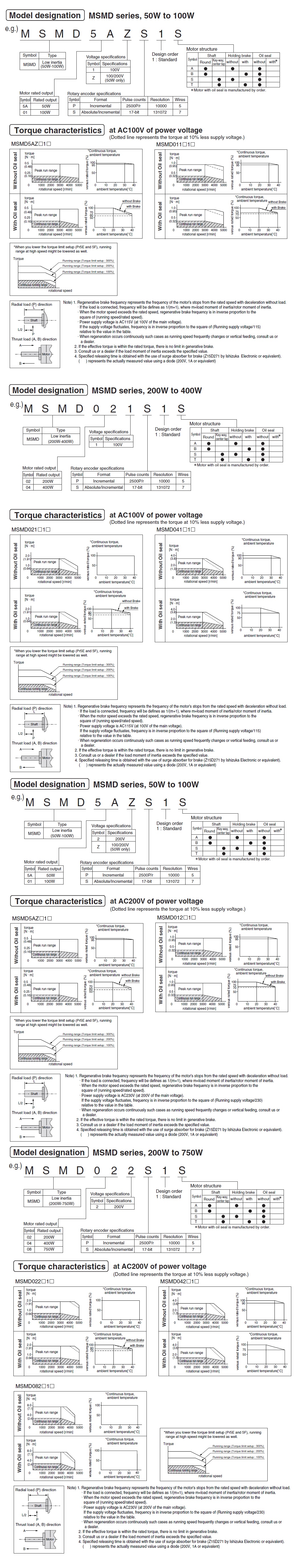

Buying Guide
