Panasonic: AC Servo Motors (MSMF A6 Series) -- Low Inertia, 50W to 5.0kW
Panasonic: AC Servo Motors (MSMF A6 Series) -- Low Inertia, 50W to 5.0kW

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MSMF-A6
.

Description Ordering Information Specifications and Drawings

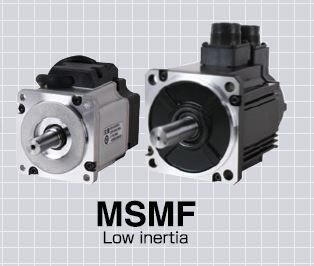

Panasonic: AC Servo Motors (MSMF A6 Series)

The MINAS A6 family of advanced AC servomotors is changing the landscape of industrial machinery.


Features:

Motor 80 mm sq. or less:
1) Small capacity
2) Suitable for high speed application
3) Suitable for all applications


Motor 100 mm sq. or more:

1) Middle capacity
2) Suitable for the machines directly coupled with ball screw and high stiffness and high repetitive application.


Applications:

Motor 80 mm sq. or less:
1)Bonder
2)Semiconductor production equipment
3)Packing machines, etc...


Motor 100 mm sq. or more:

1) SMT machines
2) Food machines
3) LCD production equipment, etc...
