* ND 1100 QUADRA-CHEK Successor/Replacement Products (08/2019)
Heidenhain: Evaluation Electronics (ND 1100 QUADRA-CHEK)
Evaluation Electronics for Metrological Applications
Evaluation Electronics for metrological applications offer numerous functions for measured data acquisition and statistical evaluation of measured values.
QUADRA-CHEK evaluation electronics for profile projectors, measuring microscopes, 2-D and video measuring machines as well as CMMs measure points on 2-D contours, depending on the version either automatically or manually by crosshairs, by optical edge detection or by video camera with real-time display of the live image and integrated image processing. For 3-D contours, such as planes, cylinders, cones and spheres, the measurement points are saved by probing with a touch probe.
In the optional CNC version, they also operate as full-fledged controls for axis positioning and can automatically execute measuring programs.

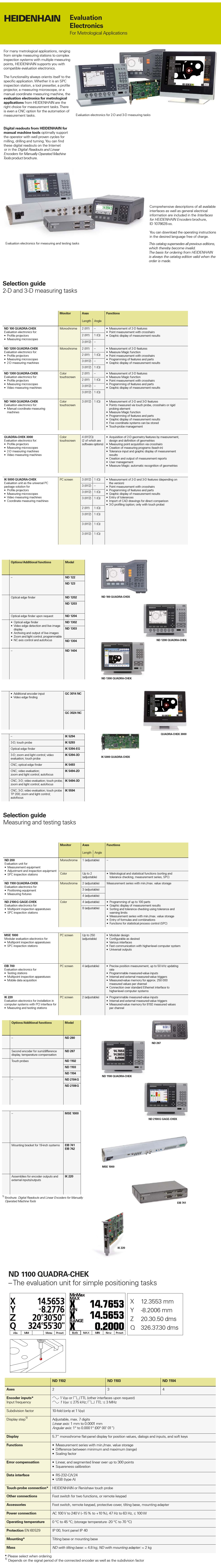

ND 1100 QUADRA-CHEK | The evaluation unit for simple positioning tasks
The ND 1100 QUADRA-CHEK evaluation units can support up to four axes. They are mainly suited to positioning tasks on positioning equipment and measuring fixtures, as well as for retrofitting on measuring machines for data acquisition and relaying to a PC.
The ND 1100 QUADRA-CHEK evaluation electronics have a monochrome fl at-panel screen for displayed values, dialogs, inputs and soft keys. The robust, die-cast aluminum enclosure meets the demands of metrology and production control.
The logical placement of the function keys and soft keys permits innovative operator guidance, which supports you when using the diverse functions.
Along with the usual functions of evaluation electronics, such as zeroing and setting of reference values, the ND 1100 QUADRA-CHEKs have numerous other useful functions:
Each axis can be configured for linear or angular display
Minimum/maximum value storage
Simple switching between counting directions
Continuous data output via internal clock, or upon probing
You use the data interfaces to output measured points as well as to save settings and compensation values. The ND 1100 has an RS-232-C/V.24 serial interface for communication with a PC. You can connect printers or memory media directly to the USB port.
Depending on the type of encoder connected, you can define linear or angular display individually for each axis.
Minimum/Maximum Value Storage
The ND 1100 is capable of minimum/ maximum value storage in any selectable axis. The largest and smallest measured values of a measurement series as well as the difference are stored and can be output via the data interface. This function is particularly advantageous during concentricity testing.
The ND 1100 units feature a connection for touch probes. The evaluation unit automatically reads the current position value during probing, and also takes the radius of the stylus into account.

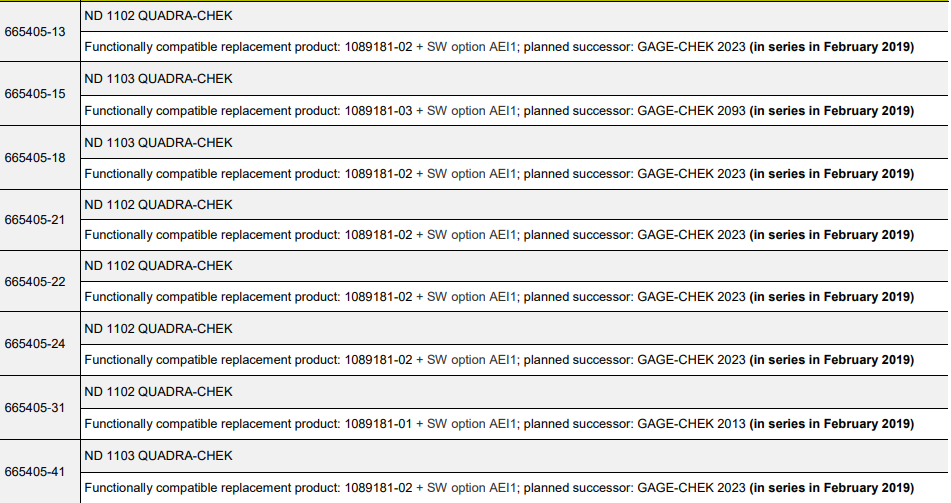

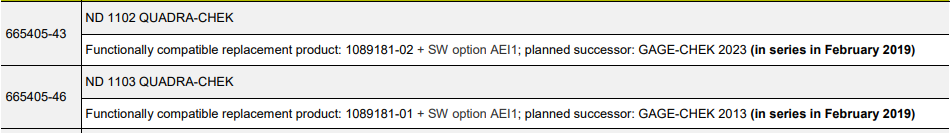

Model No.: ND 1102, ND 1103, ND 1104
