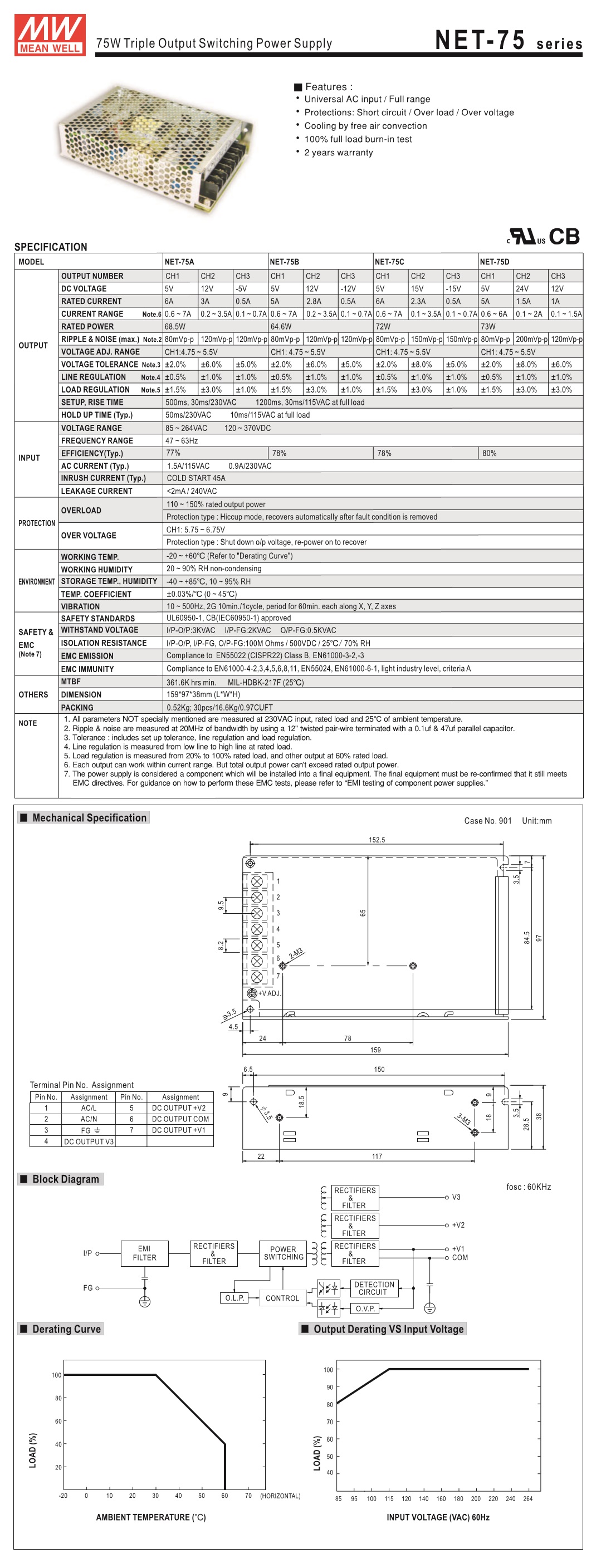

Mean Well: Enclosed Switching Power Supply (NET-75 Series)
Features:
Universal AC input / Full-Range (NES/D-100, NES-150 AC input selectable by switch)
Protections: Short circuit / Overload / Over voltage
Built-in over temperature protection for NES-15
Cooling by free air convection
Small size, high power density
Low cost, high reliability
100% full load burn-in test
Most economical low wattage solution with safety certificates
2 year warranty
Operating Temperature: -20~+60°C
Dimensions (Inches): 6.25” x 3.81” x 1.49”
Weight (Kg): 0.52
Model No.: NET-75A (CH1), NET-75A (CH2), NET-75A (CH3), NET-75B (CH1), NET-75B (CH2), NET-75B (CH3), NET-75C (CH1), NET-75C (CH2), NET-75C (CH3), NET-75D (CH1), NET-75D (CH2), NET-75D (CH3)
