MotiCont: 5.2 Micron Optical Encoder Module (OEM-00520U-01 Series)
MotiCont: 5.2 Micron Optical Encoder Module (OEM-00520U-01 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: OEM-00520U-01
.

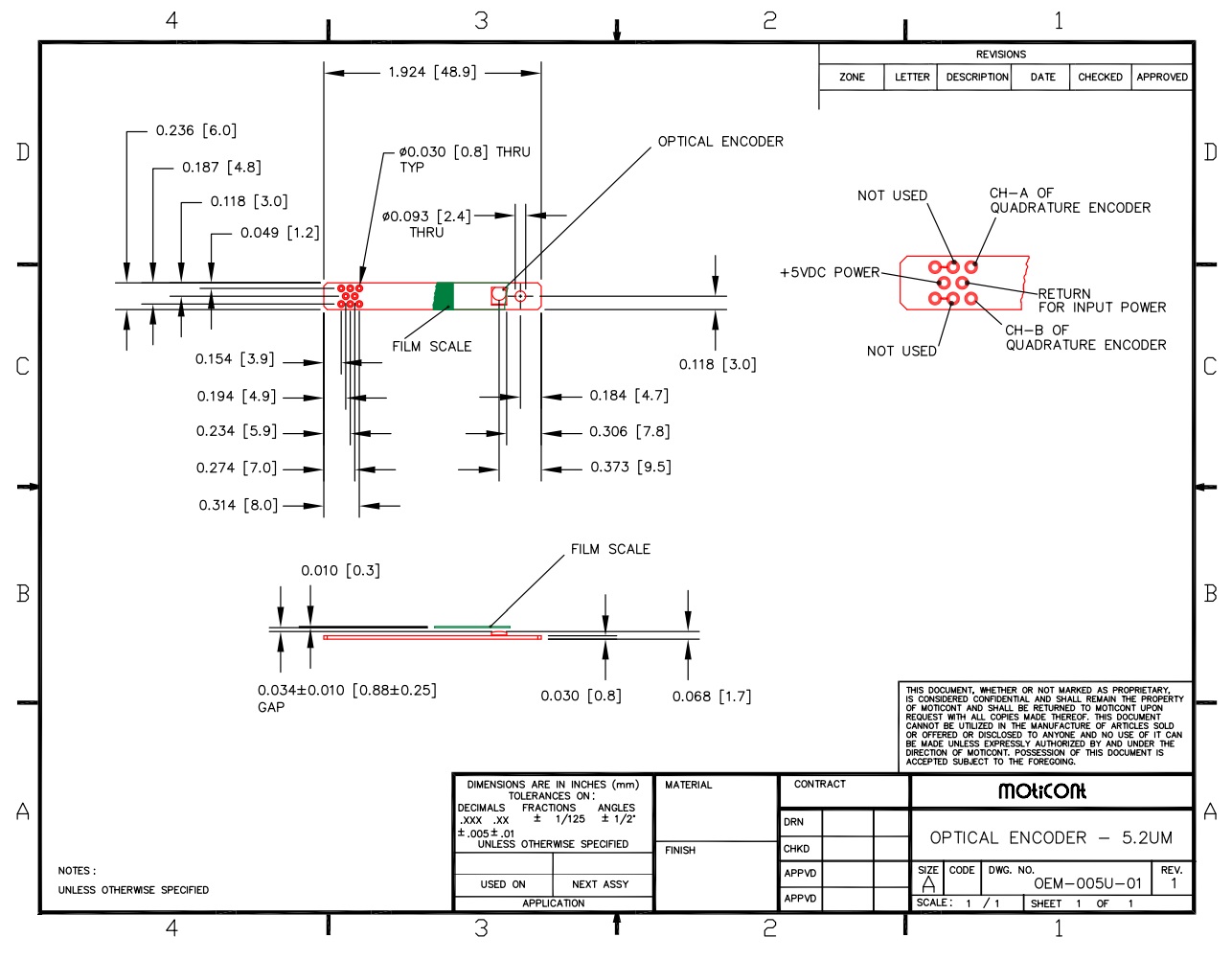

Description Specifications and Drawings


MotiCont: 5.2 Micron Optical Encoder Module (OEM-00520U-01 Series)

Features:

  • Small Size: 1.924" (48.8 mm) by 0.236" (5.99 mm)

  • Low Profile: 0.07" (1.78 mm)

  • Low Power

  • High Resolution, 0.0002", 5.2 Micron

  • TTL Quadrature Outputs

  • Single +5 VDC Supply


Compatible Linear S
cale (LS-00520U-01 Series)

  • 5.2 um (0.0002") Quadrature Resolution

  • 0.24" (6 mm) Wide, 0.01" (0.3 mm) Thick with PSA Adhesive

  • Low Cost

  • This product is sold in 3.00 inch (76.2 mm) length. Other lengths are available upon request
