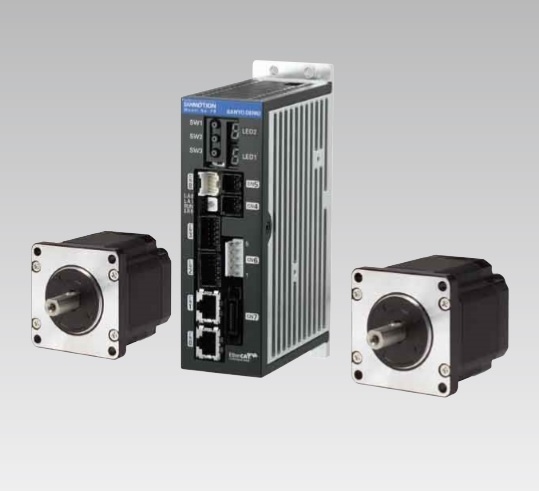

Sanyo Denki: Closed Loop Stepping Systems with EtherCAT Interface (PB Series)

SANMOTION Model No.PB

Combines the advantages of our AC servo system and stepping motors. This series has achieved high-speed, acceleration, and deceleration, and is compact and superior in terms of cost-performance. For use in semiconductor manufacturing equipment, general industrial machinery and conveying machines.

Specification:

  • Input voltage: DC24V / 48V

  • High-Speed Field-Bus EtherCAT Interface: EtherCAT is a field-bus system that allows 100Mbps high-speed and highly reliable communication. With this interface, response speed is boosted up, and takt time is greatly reduced.

  • Space-Saving: Now one driver can control 2 motors, installation space will be reduced by 30% when compared to the case with controlling by our 2 conventional drivers*. *SANMOTION Model No.PB DC power input type (Model No.: PB3D003M20□)

  • Also Ideally Suited for Equipment Requiring Synchronizing Operation: The driver can perform dual-axis synchronizing operation. (While in profile position mode)

  • Encoder Available According to Use: In addition to an incremental encoder, an absolute encoder is also available that does not require zero-return/push operation when the power is turned on.
