Sanyo Denki: Closed Loop 4-Axis Stepping Systems (PB Series)
Sanyo Denki: Closed Loop 4-Axis Stepping Systems (PB Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: PB4D003P340
.

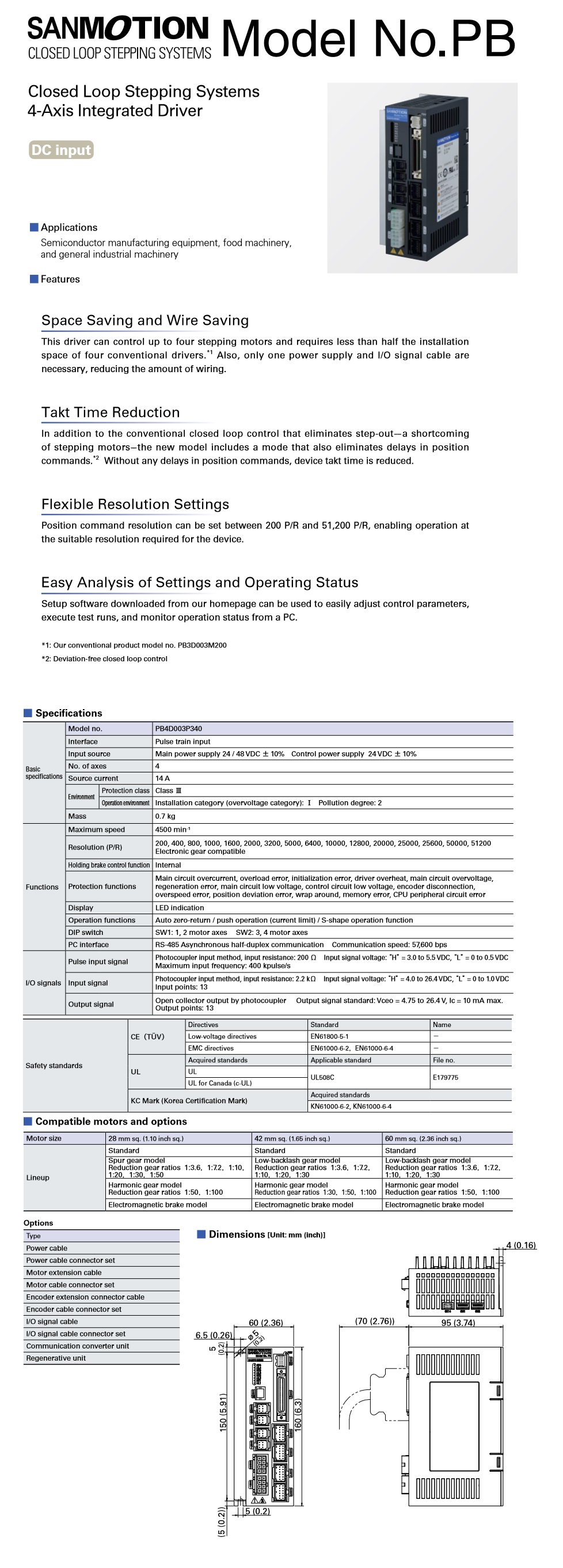

Description Specifications and Drawings

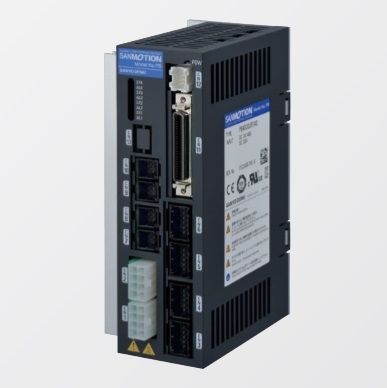

Sanyo Denki: Closed Loop Stepping Systems (PB4D003P340 Series)

SANMOTION Model No.PB

Combines the advantages of our AC servo system and stepping motors. This series has achieved high-speed, acceleration, and deceleration, and is compact and superior in terms of cost-performance. For use in semiconductor manufacturing equipment, general industrial machinery and conveying machines.

Applications:

  • Semiconductor manufacturing equipment

  • Food machinery

  • General industrial machinery

Features:

  • Space Saving and Wire Saving: This driver can control up to four stepping motors and requires less than half the installation space of four conventional drivers.*1 Also, only one power supply and I/O signal cable are necessary, reducing the amount of wiring.

  • Takt Time Reduction: In addition to the conventional closed loop control that eliminates step-out--a shortcoming of stepping motors-- the new model includes a mode that also eliminates delays in position commands.*2 Without any delays in position commands, device takt time is reduced.

  • Flexible Resolution Settings: Position command resolution can be set between 200 P/R and 51,200 P/R, enabling operation at the suitable resolution required for the device.

  • Easy Analysis of Settings and Operating Status: Setup software downloaded from our homepage can be used to easily adjust control parameters, execute test runs, and monitor operation status from a PC.

*1: Our conventional product model no. PB3D003M200

*2: Deviation-free closed loop control
