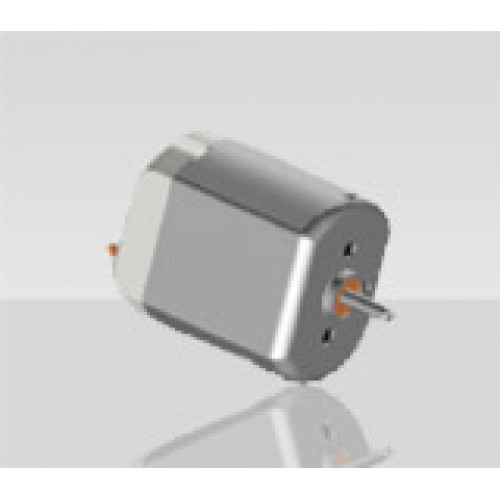

Transmotec DC Motors (no gear) ø24 [PC-280 Series]
Transmotec DC Motors (no gear)  ø24 [PC-280 Series]


Price: (Members Only)


Order #: PC-280




Qty:

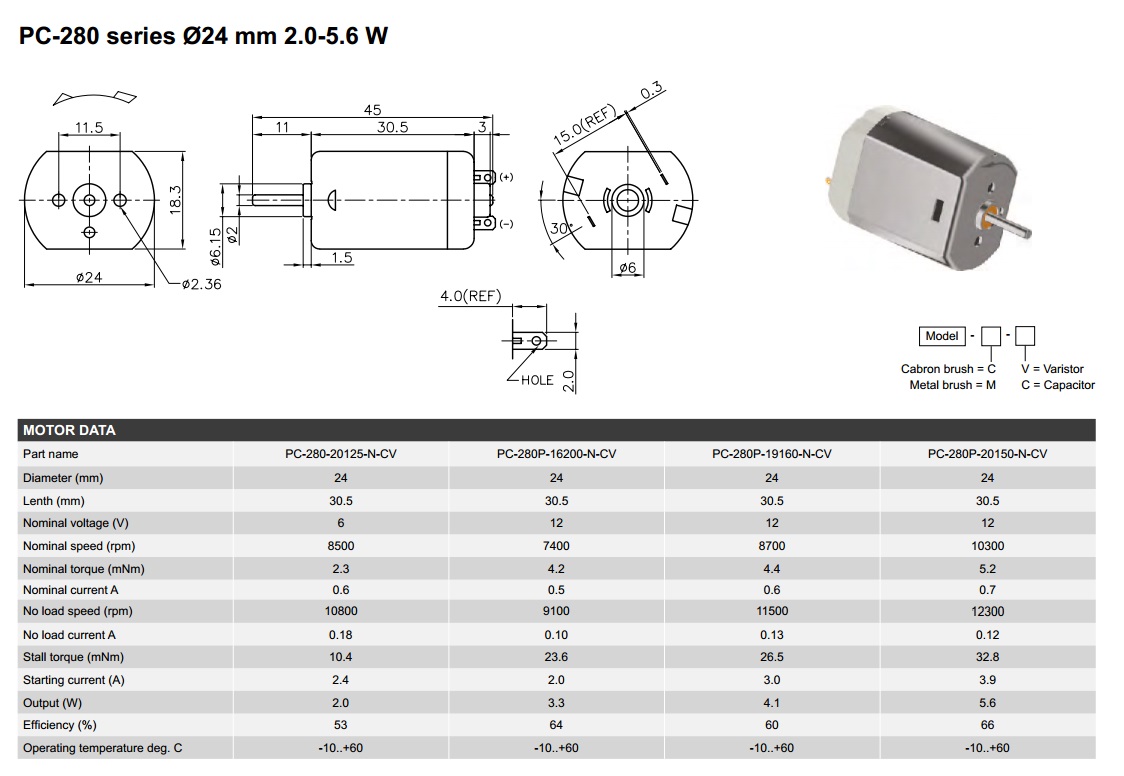

Description Specifications and Drawings


PC-280 Series (Ø24 mm 2.0-5.6 W)

The DC-motors (brush type) are low voltage and designed especially for low cost and mass production. The motors are available with carbon or metal brushes and with integral emc filters as varistor and or capacitors. Part codes are shown in price list. Applications include scanners, mirrors, locks, toys, consumer goods, automotive, cameras, medical, HVAC, fans, vending machines, office machines, pumps, tools etc. The motors are also available with gear heads and are customizable.

Features:

  • Low cost
  • Integral emc filter varistor capacitor
  • Sleeve bearings
  • Carbon or metal brush
  • Ambient operating temperature -10..+60°C
  • Customizable
  • Nominal Voltage (V): 6-12
  • Nominal Speed (rpm): 7400-10300
  • Nominal Torque (mNm): 2.3-5.2
  • Nominal Current (A): 0.5-0.7
  • No load speed (rpm): 9100-12300
  • No load current (A): 0.10-0.18
  • Stall torque (mNm): 10.4-32.8
  • Starting current (A): 2.0-3.9
  • Output (W): 2.0-5.6
  • Efficiency (%): 53-66
  • Dimensions (mm): Ø24.0 x 30.5

Models:

  • PC-280-20125-N-CV
  • PC-280P-16200-N-CV
  • PC-280P-19160-N-CV
  • PC-280P-20150-N-CV

DC Motor (0.1 W to 198 W) Catalog
