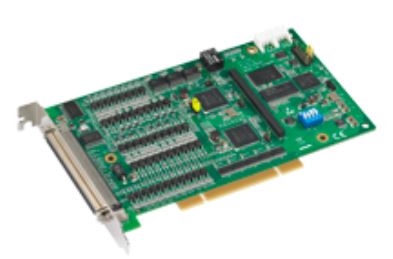

Advantech:4 Axis DSP Base Pulse Motion Controller PCI-1245-AE
Advantech:4 Axis DSP Base Pulse Motion Controller PCI-1245-AE


Price: (Members Only)


Order #: PCI-1245-AE


Accessories:

Qty:
Description Specifications and Drawings

  1. 4 Axis DSP Base Pulse Motion Controller PCI-1245-AE
  3. Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
  4. Pulse output up to 5 Mpps
  5. Memory buffer (10K points) for trajectory planning which is designed in DSP
  6. Supports E-Gear, and helical interpolation
  7. Supports E-CAM providing 256 points to describe the CAM profiles which buffers located in DSP
  8. Hardware emergency input
  9. Watchdog timer
  10. Position latch via ORG & index signal
  11. Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP

Accessory Products


Part No.DescriptionUnit Price
ADAM-3920-AE20-Pin Flat Cable Terminal, DIN-rail Mount$28.00
ADAM-3952-AECIRCUIT BOARD, PCI-1240 Wiring Terminal, DIN-rail Mount $72.00
ADAM-3955-AECIRCUIT MODULE, 2-Axis 50-pin SCSI DIN-rail motion wiring board $76.00
PCL-10120-1EIDC-20 Flat Cable, 1m$10.00
PCL-10120-2EDC-20 Flat Cable, 2m$10.00
PCL-10251-3E100Pin to two 50Pin SCSICable for PCI-1240,3M $92.00
PCL-10153MJ3-2ECABLE, DB26 to SCSI-50 Cable for Mitsubishi J3S, 2m $22.00
PCL-10153PA5-2ECABLE, DB26 to SCSI-50 Cable for Panasonic A5, 2m $22.00
PCL-10153YS5-2ECABLE, DB26 to SCSI-50 Cable for Yaskawa Sigma 5, 2m $22.00
