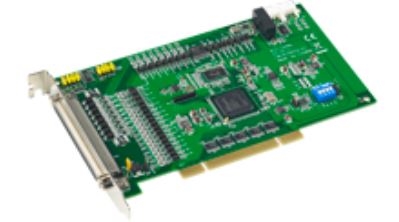

Advantech:4 Axis DSP Base Pulse Motion Controller PCI-1245L-AE
Advantech:4 Axis DSP Base Pulse Motion Controller PCI-1245L-AE


Price: (Members Only)


Order #: PCI-1245L-AE


Accessories:

Qty:
Description Specifications and Drawings

  1. 4 Axis DSP Base Pulse Motion Controller PCI-1245L-AE
  2. Encoder input is 4 MHz for 4xAB mode, 1 MHz for CW/CCW mode
  3. Pulse output up to 1 Mpps and the output type can be switched to differential or single-end by jumper setting
  4. Supports 2 axis linear interpolation
  5. Supports T/S-curve
  6. Supports speed override
  7. Hardware emergency input
  8. Watchdog timer

Accessory Products


Part No.Description Unit Price
ADAM-3952-AECIRCUIT BOARD, PCI-1240 Wiring Terminal, DIN-rail Mount$72.00
ADAM-3955-AECIRCUIT MODULE, 2-Axis 50-pin SCSI DIN-rail motion wiring board $76.00
PCL-10152-1ECABLE, 50-pin SCSI M-M Shielded Cable, 1m$24.00
PCL-10152-3E CABLE, 50-pin SCSI M-M Shielded Cable, 3m$42.00
PCL-10251-3E 100Pin to two 50Pin SCSICable for PCI-1240,3m $92.00
PCL-10153DA2-2E CABLE, DB26 to SCSI-50 Cable for Delta A2, 2m$22.00
PCL-10153MJ3-2E CABLE, DB26 to SCSI-50 Cable for Mitsubishi J3S, 2m$22.00
PCL-10153PA5-2E CABLE, DB26 to SCSI-50 Cable for Panasonic A5, 2m$22.00
PCL-10153YS5-2E CABLE, DB26 to SCSI-50 Cable for Yaskawa Sigma 5, 2m$22.00


Support Links

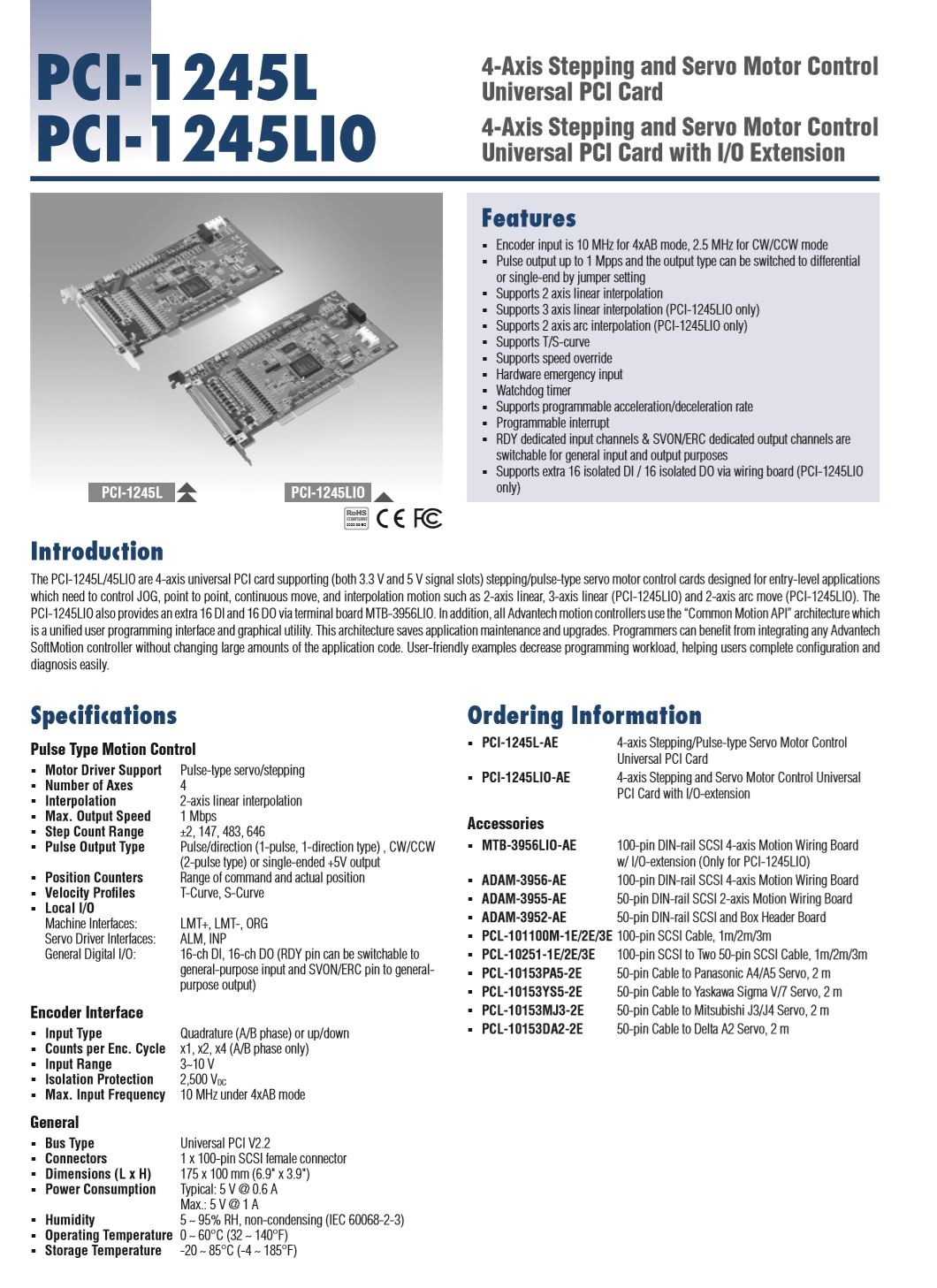

Datasheet | Download | Drive | Manual
