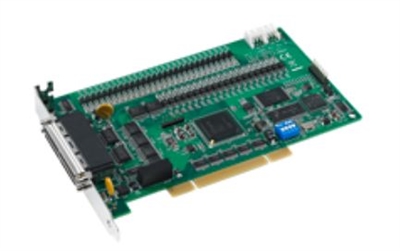

Advantech:8 Axis DSP Base Pulse Motion Controller PCI-1285-AE
Advantech:8 Axis DSP Base Pulse Motion Controller PCI-1285-AE


Price: (Members Only)


Order #: PCI-1285-AE


Accessories:

Qty:

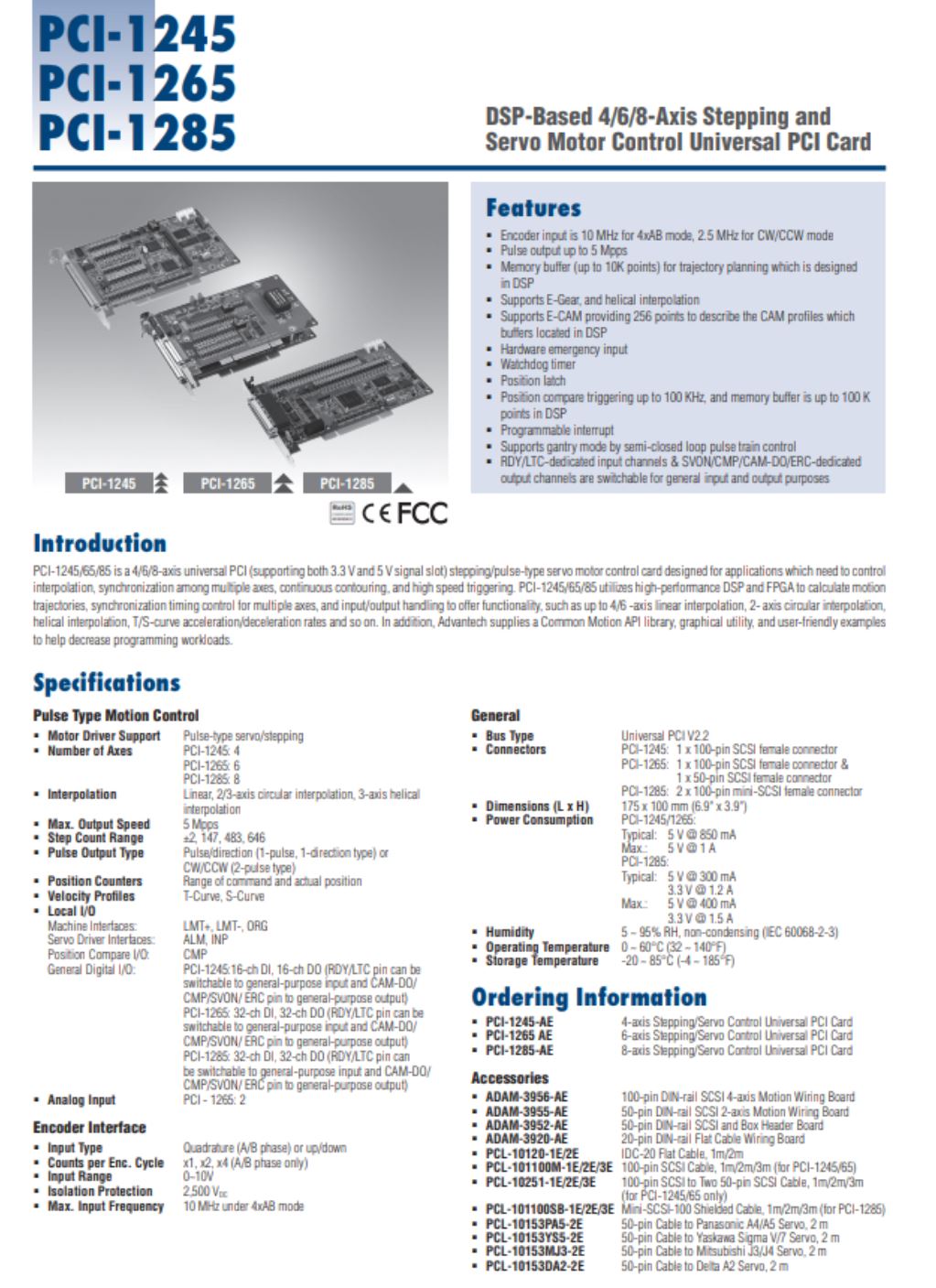

Description Specifications and Drawings

  1. 8 Axis DSP Base Pulse Motion Controller PCI-1285-AE
  4. Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
  5. Pulse output up to 5 Mpps
  6. Memory buffer (10K points) for trajectory planning which is designed in DSP
  7. Supports E-Gear, and helical interpolation, E-CAM providing 256 points to describe the CAM profiles which buffers located in DSP
  8. Watchdog timer, Position latch
  9. Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP
  10. Supports gantry mode by semi-closed loop pulse train control
  11. RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes

Accessory Products

Part No.DescriptionUnit Price
ADAM-3952-AECIRCUIT BOARD, PCI-1240 Wiring Terminal, DIN-rail Mount $72.00
ADAM-3955-AECIRCUIT MODULE, 2-Axis 50-pin SCSI DIN-rail motion wiring board$76.00
PCL-10251-3E100 Pin to two 50Pin SCSICable for PCI-1240,3M$92.00
PCL-10152-1ECABLE, 50-pin SCSI M-M Shielded Cable, 1M$24.00
PCL-10152-3ECABLE, 50-pin SCSI M-M Shielded Cable, 3M$42.00
PCL-101100M-2ECABLE, SCSI-100 Shielded Cable, 2m $95.00
PCL-101100M-1ECABLE, SCSI-100 Shielded Cable, 1m $77.00
PCL-10153DA2-2ECABLE, DB26 to SCSI-50 Cable for Delta A2, 2m $22.00
PCL-10153MJ3-2ECABLE, DB26 to SCSI-50 Cable for Mitsubishi J3S, 2m $22.00
PCL-10153PA5-2ECABLE, DB26 to SCSI-50 Cable for Panasonic A5, 2m $22.00
PCL-10153YS5-2ECABLE, DB26 to SCSI-50 Cable for Yaskawa Sigma 5, 2m $22.00
