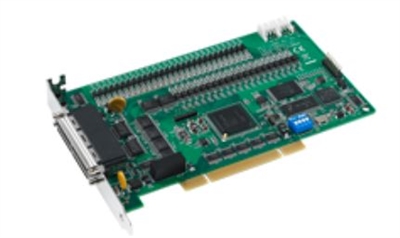

Advantech:8 Axis DSP Base Pulse Motion Controller PCI-1285E-AE
Advantech:8 Axis DSP Base Pulse Motion Controller PCI-1285E-AE


Price: (Members Only)


Order #: PCI-1285E-AE


Accessories:

Qty:
Description Specifications and Drawings

  1. 8 Axis DSP Base Pulse Motion Controller PCI-1285E-AE
  3. Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
  4. Pulse output up to 5 Mpps
  5. Memory buffer for trajectory planning (circular trajectory and auto blending are not supported)
  6. Supports E-Gear (only for PCI-1245E)
  7. Hardware emergency input
  8. Watchdog timer
  9. Position latch via ORG & index signal
  10. Programmable interrupt
  11. RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes

Accessory Products

Part No.DescriptionUnit Price
ADAM-3952-AECIRCUIT BOARD, PCI-1240 Wiring Terminal, DIN-rail Mount$72.00
ADAM-3955-AECIRCUIT MODULE, 2-Axis 50-pin SCSI DIN-rail motion wiring board$76.00
PCL-10251-3E100Pin to two 50Pin SCSICable for PCI-1240,3m$92.00
PCL-10153MJ3-2ECABLE, DB26 to SCSI-50 Cable for Mitsubishi J3S, 2m$22.00
PCL-10153PA5-2ECABLE, DB26 to SCSI-50 Cable for Panasonic A5, 2m$22.00
PCL-10153YS5-2ECABLE, DB26 to SCSI-50 Cable for Yaskawa Sigma 5, 2m$22.00

Support Links

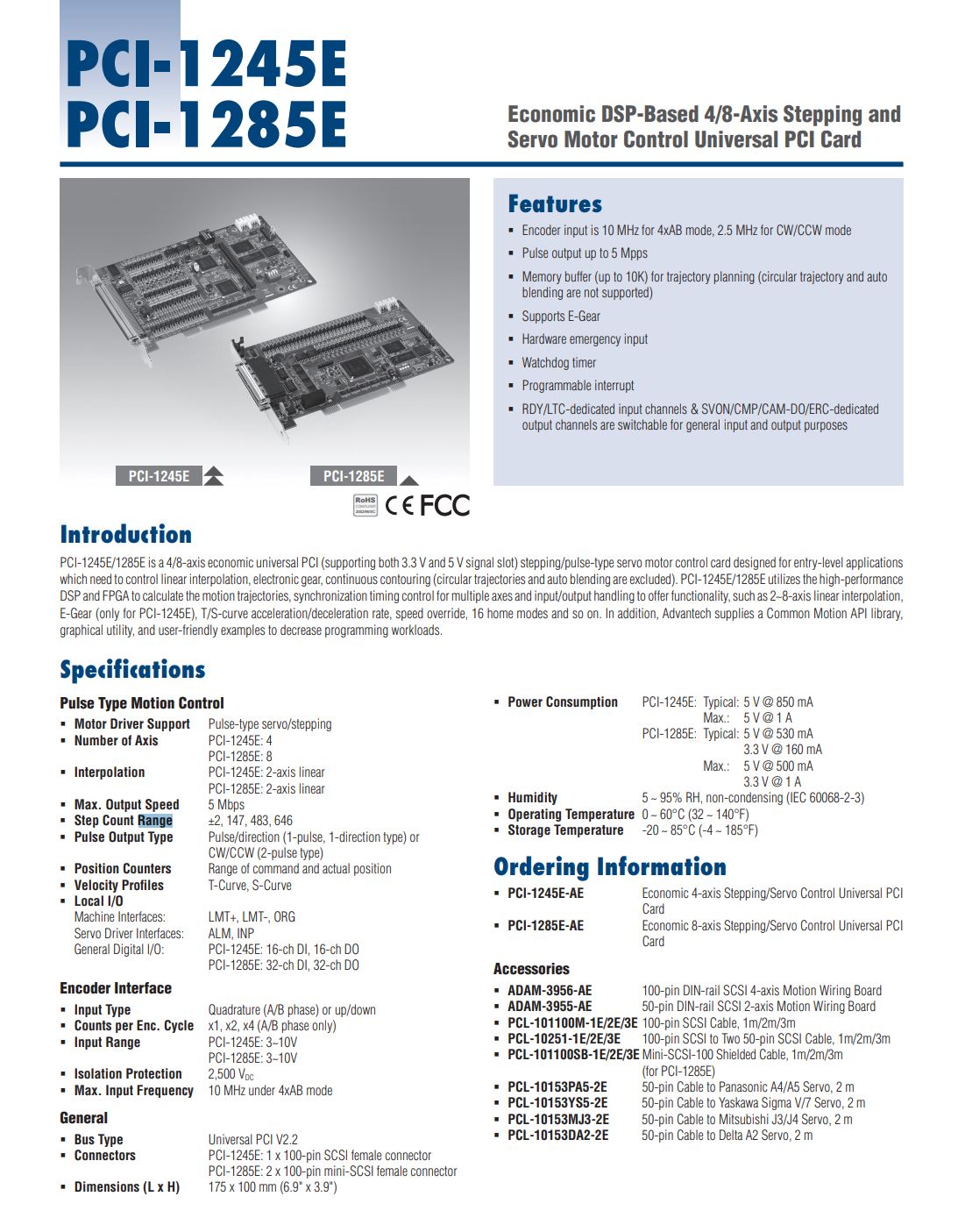

Datasheet | Download | Drive | Manual
