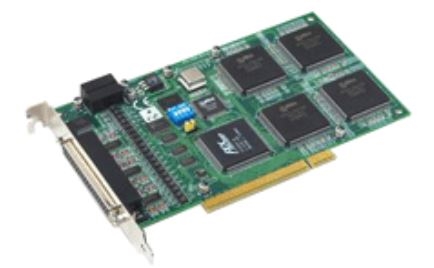

Advantech:4 axis Quadrature Encoder & Counter Card PCI-1784U-AE
Alternate View
Price:
(Members Only)
Order #:
PCI-1784U-AE
Accessories:
ADAM-3937-BE [Add (Members Only)]
PCL-10137H-3E [Add (Members Only)]
Without Accessories
Qty:
Description
Ordering Information

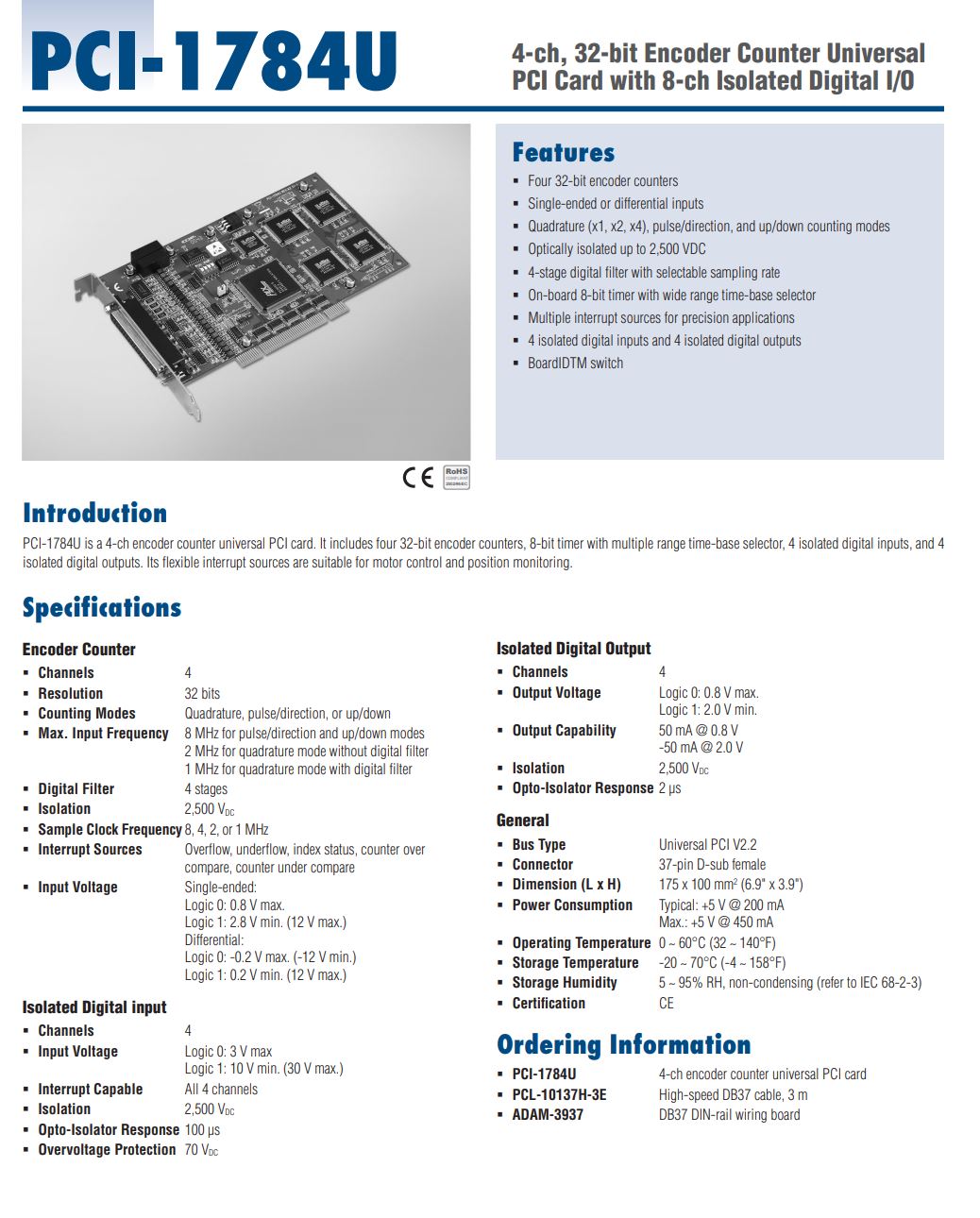

4 axis Quadrature Encoder & Counter Card PCI-1784U-AE
Four 32-bit up/down counters
Single ended or differential inputs
Pulse/direction and up/down counter
x1, x2, x4 counts for each encoder cycle
Optically isolated up to 2,500 VDC
4-stage digital filter with selectable sampling rate
On-board 8-bit timer with wide range time-base selector
Multiple interrupt sources for precision application
4 isolated digital input
4 isolated digital output
BoardID™ switch
Accessory Products
Part No.
Description
Unit Price
Qty
ADAM-3937-BE
DB37 DIN-rail Wiring Board
$46.00
PCL-10137H-3E
CABLE, DB-37 High-Speed Shielded Cable, 3m
$48.0
Support Links
Datasheet
|
Download
|
Driver
|
Manual
Support Links
4 axis Quadrature Encoder & Counter Card PCI-1784U-AE
