Powered By E-MOTION
Delta: DMCNET Masters - Standard DMCNET Motion Control Card (PCI-DMC-A02)
DMCNET stands for Delta Motion Control Network. Delta's DMCNET is a high speed and real time communication system which supports the CANopen standard CiA 402, and provides a variety of motion control functions. DMCNET is the best integrated platform capable of providing high speed, high stability and high reliability for multi-axis and synchronous motion control in a wide range of industrial applications. It is also the ultimate solution that provides effortless wiring, enhanced stability, flexible extension ability and versatile operation for industry upgrading and adding value to products.

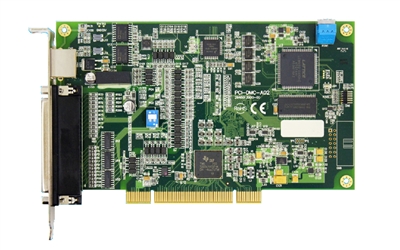

Standard DMCNET Motion Control Card
The PCI-DMC-A02 motion control card has built-in digital I/O interfaces which transfer up to 32 digital inputs and 24 digital outputs. No extra I/O card and connection are required. The good extension and rapid response it achieves saves cost and enhances the efficiency of the system. In addition, the PCI-DMC-A02 can connect to a manual pulse generator (MPG) and conduct system adjustment directly without writing programs in response to field needs.
Features:
Acts as a DMCNET master to extend connection with more servo systems and I/O modules and control the whole system more effectively
Controlling up to 12 stations that enable a 12-axis motion control
Communication can be completed by 1ms cycle time
Built-in digital I/O interfaces which transfer up to 32 digital inputs and 24 digital outputs
Supports manual pulse generator (MPG)
