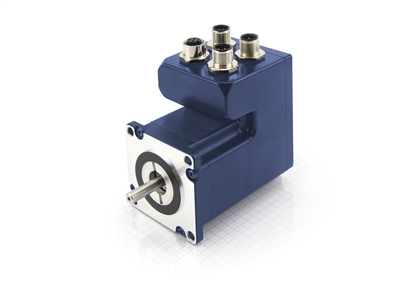

Nanotec: STEPPER MOTOR WITH INTEGRATED CONTROLLER – NEMA 23

Nanotec: STEPPER MOTOR WITH INTEGRATED CONTROLLER â€“ NEMA 23

Price: (Members Only)

Availability: Usually Ships in 3 to 5 Days
Order #: PD4-E591L42-M-65-1

Qty:

Description

Specifications and Drawings

STEPPER MOTOR WITH INTEGRATED CONTROLLER – NEMA 23

Closed-loop stepper motors are an advanced development of classical stepper motor technology. They eliminate the limitations and drawbacks of classical stepper motors:

The calculation or purchase of a safety reserve (normally up to 50%) is not required
Greater efficiency during load fluctuations and no stoppage on overload
Energy-efficient operation due to intelligent current control
Practically resonance-free
Longer service life of bearings due to less heat and vibration
Reduced acceleration times because high torque is achieved even at high rotational speeds
Precise positioning due to monitoring and correction

Ideal application areas for closed-loop stepper motors:

Multiple-axis applications (serial, Ethernet, EtherCAT, CANopen)
Positioning tasks with load changes
Winding applications
Belt drives (start/stop, positioning)
Dosing pumps, filler systems
Semiconductor mounting
Wafer production
Textile machines/industrial sewing machines
Robotics
Testing and inspection systems
Applications that require smooth operation, short settling times and precise positioning

TECHNICAL DATA

· Size - 2.2 in

· Interface - EtherCAT

· Peak Current (RMS) - 4.2 A
Rated Current (RMS) - 4.2 A

· Type of Digital Inputs - 5/24 V switchable

· Type of Analog Input - 0-20 mA/0-10 V switchable

· Type of Digital Output - open-drain (max. 24 V/100 mA)

· Encoder Type - multi-turn absolute, 18 Bit

· Length - 4.98 in

· NEMA23

· Operating Voltage - 12 VDC - 48 VDC

· Holding Torque - 264.81 oz-in
