Nanotec: BRUSHLESS DC SERVO MOTOR WITH INTEGRATED CONTROLLER IN PROTECTION CLASS IP65 – NEMA 23
Nanotec: BRUSHLESS DC SERVO MOTOR WITH INTEGRATED CONTROLLER IN PROTECTION CLASS IP65 – NEMA 23



Price: (Members Only)


Availability: Usually Ships in 3 to 5 Days
Order #: PD4-EB59CD-M-65-1
Qty:

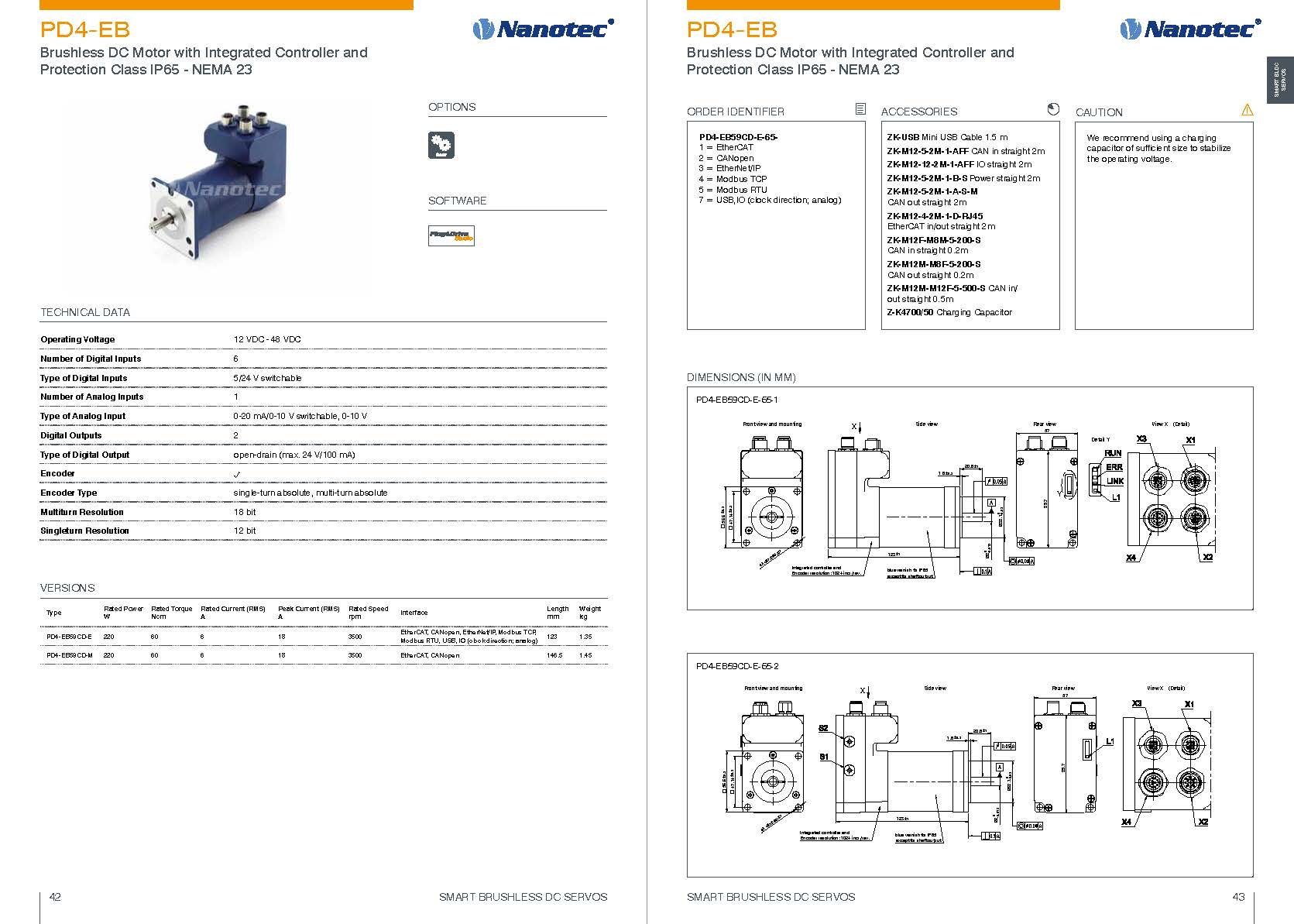

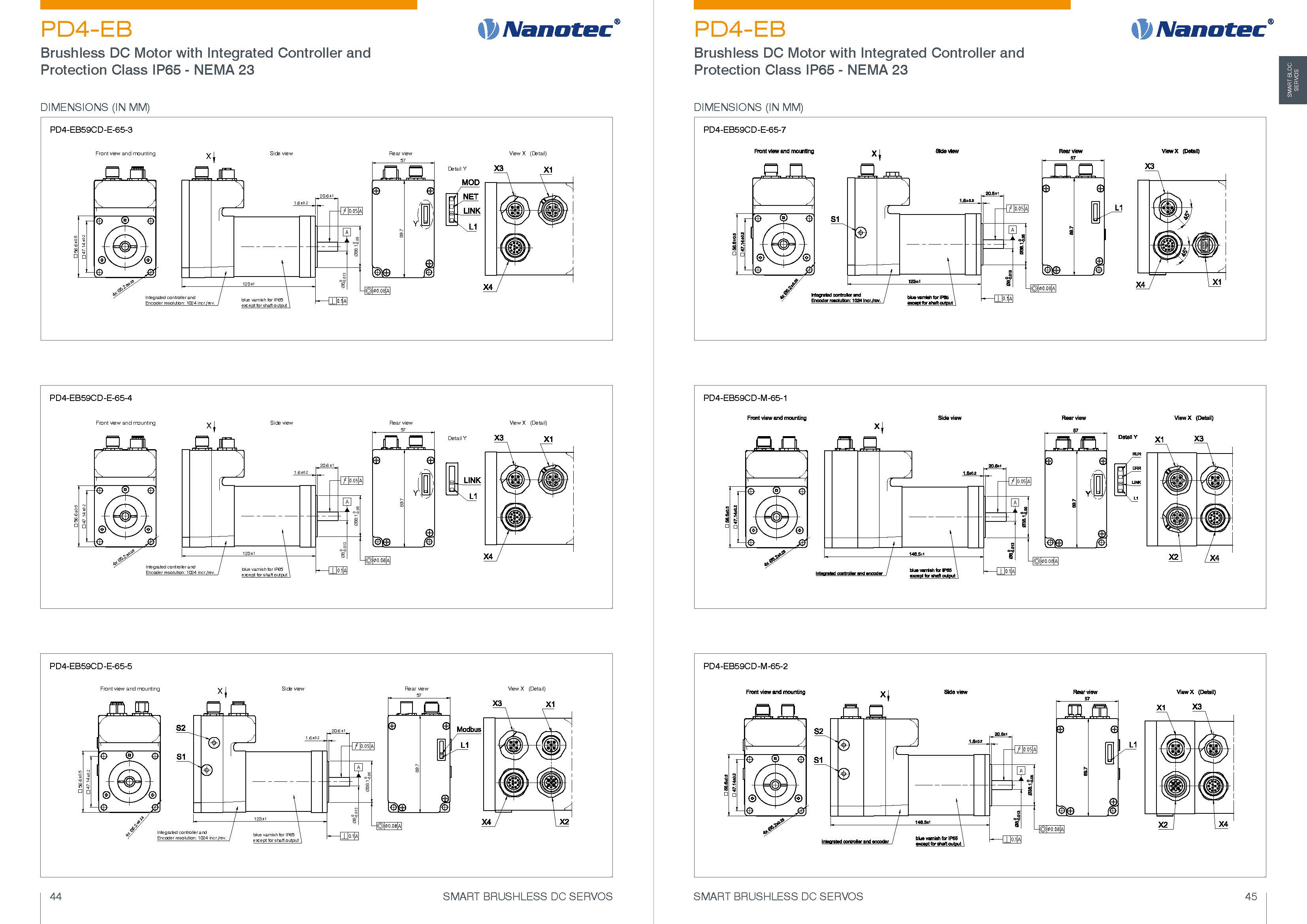

Description Specifications and Drawings

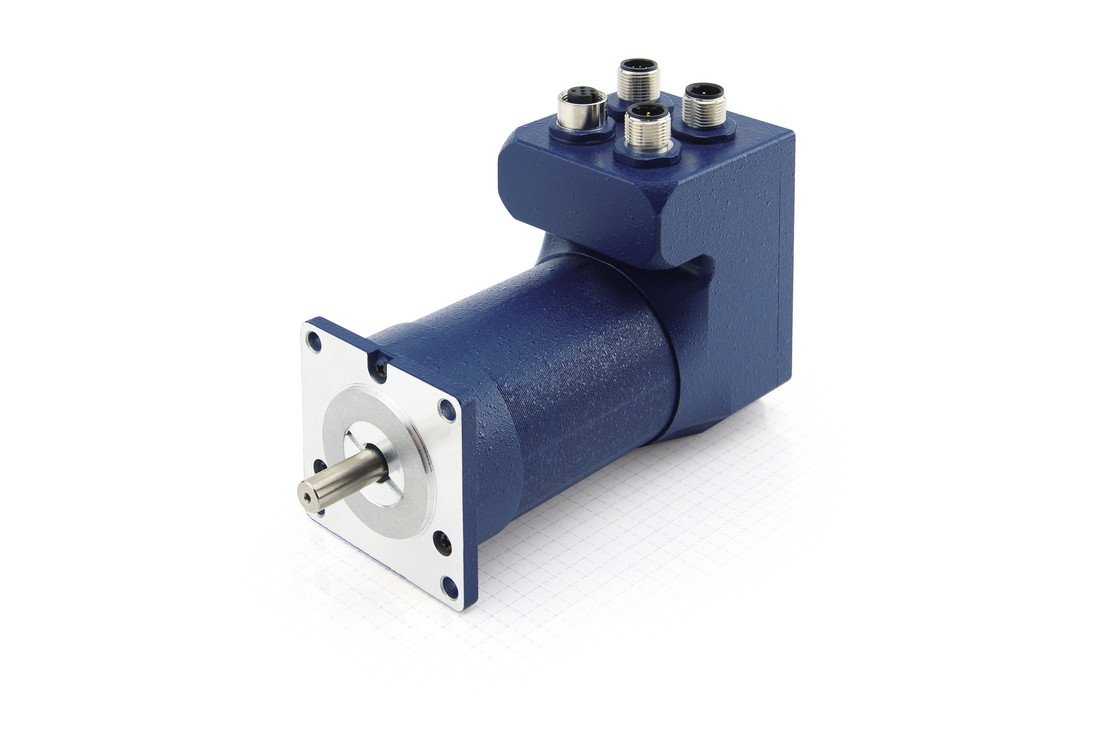

BRUSHLESS DC SERVO MOTOR WITH INTEGRATED CONTROLLER
IN PROTECTION CLASS IP65 – NEMA 23 (PD4-EB)

Smart BLDC motor with integrated controller and encoder and protection class IP65. Equipped with M12 connectors. Space-saving all-in-one servo system that simplifies installation. Flange size: 56 mm.

Features and Benefit

TECHNICAL DATA

· Size - 2.2 in

· Interface - EtherCat

· Rated Power - 220 W

· Rated Speed - 3500 rpm

· Peak Current (RMS) - 18A

· Type of Digital Inputs - 5/24V switchable

· Type of Analog Input - 0-10V

· Type of Digital Output - open-drain (max. 24 V/100 mA)

· Encoder Type - single-turn absolute, multi-turn absolute
Single-turn resolution - 12 bit
Multi-turn resolution - 18 bit

· Length - 5.77 in

· NEMA23

· Operating Voltage - 12 VDC - 48 VDC

· Rated Torque - 84.97 oz-in

· Rated Current (RMS) - 6A

· Number of Digital Inputs - 6

· Number of Analog Inputs - 1

· Digital Outputs - 2

· Encoder - Yes

· Weight - 1.45 kg
