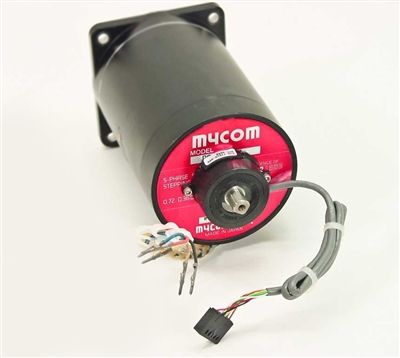

MYCOM: 5 Phase Stepper Motor (PF Series) Size 85
(Hi-Torque/Hi-Speed) [Brake Type]
Features
Five leads for easy wiring configurations
Wide selection range to suit various applications
0.3~63 kgcm Max. Holding Torque
Compact size for high Torque performance
Highly cost effective
5 Phase Stepper Motor (PF Series) PDF
Motor Part: PF 5913 HACM, PF 596 HACM, PF 599 HACM
Type
Motor
Size
(mm)
Motor Part
Max Holding
Torque
(kg-cm)
Rotor
Inertia
(gcm2)
Basic Step
Angle***
Phase
Current
(Amps)
Weight (kg)
Hi-Torque
Hi-Speed
(PF Series)
*Brake Type
60
PF 569 HACM
16.6
705
0.72º
2.8
1.6
85
PF 596 HACM
20.9
2200
2.4
PF 599 HACM
40.9
3500
3.5
PF 5913 HACM
62.9
4800
4.5
