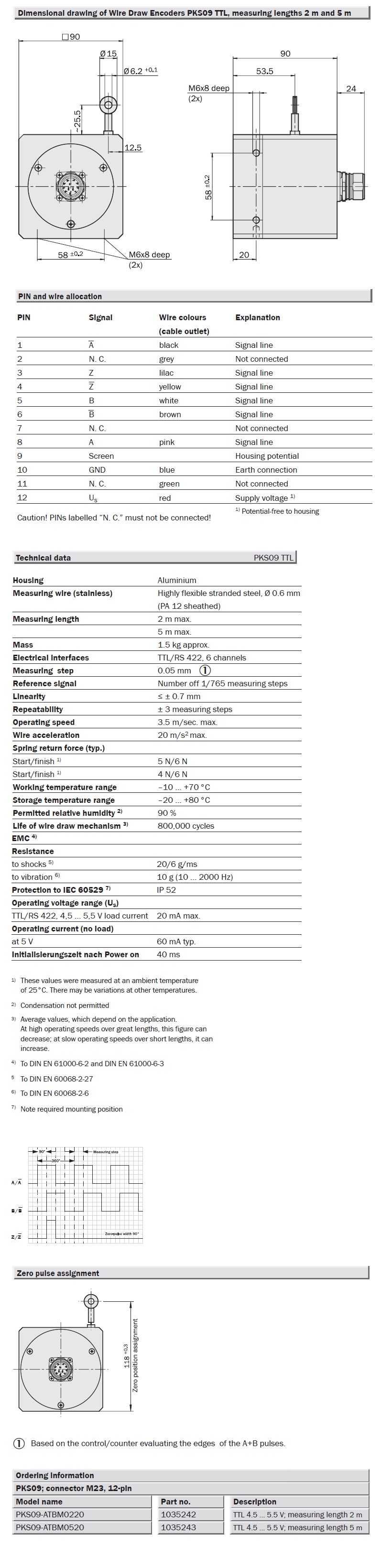

Fast and simple integration Compact housing Cost-effective design Integrated measuring system Measuring length up to 5 m High resolution
Incremental encoders Compact housing (90 x 90 x 90 mm) Encoder integrated into housing Measuring lengths from 2 to 5 m High resolution TTL interface
Industrial designed encoder integrated in an aluminum housing makes it less susceptible to external damage, saving time and reducing maintenance costs Extremely precise measurements by eliminating the coupling between the encoder and the mechanism Space-saving installation, since the encoder is directly integrated into the wire draw mechanics. Very precise measurements thanks to high resolution
Mass: 1.5 kg Measuring wire diameter: 0.6 mm Measuring wire material: Highly flexible stranded steel (PA 12 sheathed) Housing material: Aluminum Spring return force: 5 N ... 6 N 1) Life of wire draw mechanism:: 800,000 cycles 2) 3) Wire acceleration: ≤ 20 m/s²
1)These values were measred at an ambient temperature of 25 °C. 2)There may be variations at other temperatures. 3)At high operating speeds over great lengths,this figure can decrease; at slow oerating speends over short lengths, it can increase. Operating current: 60 mA (without load) Reference signal: 1/765 measuring steps Maximum load current: 20 mA Initialization time: 40 ms 1) Supply voltage: 4.5 V ... 5.5 V MTTFd: mean time to dangerous failure: 400 a (EN ISO 13849) 2)
1)Valid positional data can be read once this time has elapsed. 2)This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532. Electrical interface: 4.5 V ... 5.5 V, TTL/RS422 Connection type: Connector M23, 12-pin, radial Encoder: Incremental encoders
EMC: (according to EN 61000-6-2 and EN 61000-6-3) Enclosure rating encoder: IP 52 (according to IEC 60529), Note required mounting position Resistance to shocks: 20 g, 6 ms (according to EN 60068-2-27) Resistance to vibration: 10 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6) Storage temperature range: -20 °C ... +80 °C Relative humidity ∕ Condensation: 90 % (Condensation not permitted) Working temperature range (encoder): -10 °C ... +70 °C
Incremental encoders Compact housing (90 x 90 x 90 mm) Encoder integrated into housing Measuring lengths from 2 to 5 m High resolution TTL interface
Industrial designed encoder integrated in an aluminum housing makes it less susceptible to external damage, saving time and reducing maintenance costs Extremely precise measurements by eliminating the coupling between the encoder and the mechanism Space-saving installation, since the encoder is directly integrated into the wire draw mechanics. Very precise measurements thanks to high resolution
Mass: 1.5 kg Measuring wire diameter: 0.6 mm Measuring wire material: Highly flexible stranded steel (PA 12 sheathed) Housing material: Aluminum Spring return force: 4 N ... 6 N 1) Life of wire draw mechanism:: 800,000 cycles 2) 3) Wire acceleration: ≤ 20 m/s²
1)These values were measred at an ambient temperature of 25 °C. 2)There may be variations at other temperatures. 3)At high operating speeds over great lengths,this figure can decrease; at slow oerating speends over short lengths, it can increase. Operating current: 60 mA (without load) Reference signal: 1/765 measuring steps Maximum load current: 20 mA Initialization time: 40 ms 1) Supply voltage: 4.5 V ... 5.5 V MTTFd: mean time to dangerous failure: 400 a (EN ISO 13849) 2)
1)Valid positional data can be read once this time has elapsed. 2)This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532. Electrical interface: 4.5 V ... 5.5 V, TTL/RS422 Connection type: Connector M23, 12-pin, radial Encoder: Incremental encoders
EMC: (according to EN 61000-6-2 and EN 61000-6-3) Enclosure rating encoder: IP 52 (according to IEC 60529), Note required mounting position Resistance to shocks: 20 g, 6 ms (according to EN 60068-2-27) Resistance to vibration: 10 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6) Storage temperature range: -20 °C ... +80 °C Relative humidity ∕ Condensation: 90 % (Condensation not permitted) Working temperature range (encoder): -10 °C ... +70 °C
|
|
|
 |
|
 |
|
