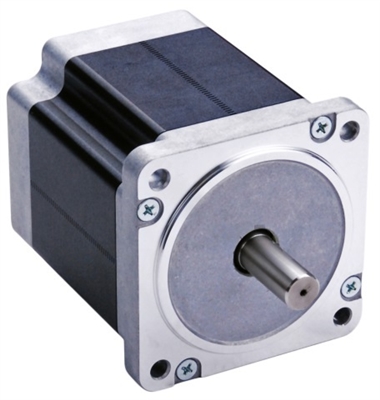

Moons: PowerPlus Torque 2 Phase Hybrid Stepper Motors (PL34HD Series) A stepper motor is an Open-loop control element which converts electrical pulse signals into angular or linear displacements, By controlling the sequence, frequency and quantity of electrical pulses working on the motor coils, we can achieve the control for the velocity, rotation and rotation angle of a stepper motor. Matching with linear motion executive module or gear box device, it will satisfying more complicated and precise linear motion controlling demands. Due to our professional technology and experience in designing, developing, manufacturing, and marketing of stepper motors, MOONS' supplies abundant stepper motor products series, with different phases and step angle for your selection. Each of the series has its unique advantages and characteristics, in order to meets the demands of different customers and different applications. MOONS' Step Motor Advantage Included are a number of improvements in performance and value: Many refinements that increase torque by an average of 20% Complete range of sizes: 8, 11, 14, 16, 17, 23, 24, 34, 42 Size 17 and larger 2 phase motors are UL recognized 0.9 degree 2 phase motors, and 3 phase motors for extra smooth, quiet, performance PowerPlus technology: for maximum efficiency and performance at all speeds Lower inertia rotors provide faster acceleration High voltage insulation for use with high voltage, high performance drives Low loss stators have better high speed performance Standard windings with high fill for more torque
PowerPlus Hybrid Stepper Motors The torque-enhanced hybrid stepper motor provides the best performance with maximum output torque. By designing the new magnetic circuit, using special materials and processes, the motor performance increases to the maximum, the output torque compared to the standard motor has been improved by 25 ~ 40%.It suits for the conditions as driver power for the customer has reached the limit that cannot be increased, or the design space has been limited to death that cannot choose a larger size of the motor but requires greater output torque at the same time. MOONS’ PowerPlus technology provides 25% to 40% more torque across the entire speed range of the motor. The increased torque is a result of higher motor efficiency, and is available without increasing the drive voltage or current. Application advantage: Reduce product development costs, improve new product development speed. Solve the existing equipment shutdown problem. Overcome drive or power supply limitations in new designs.

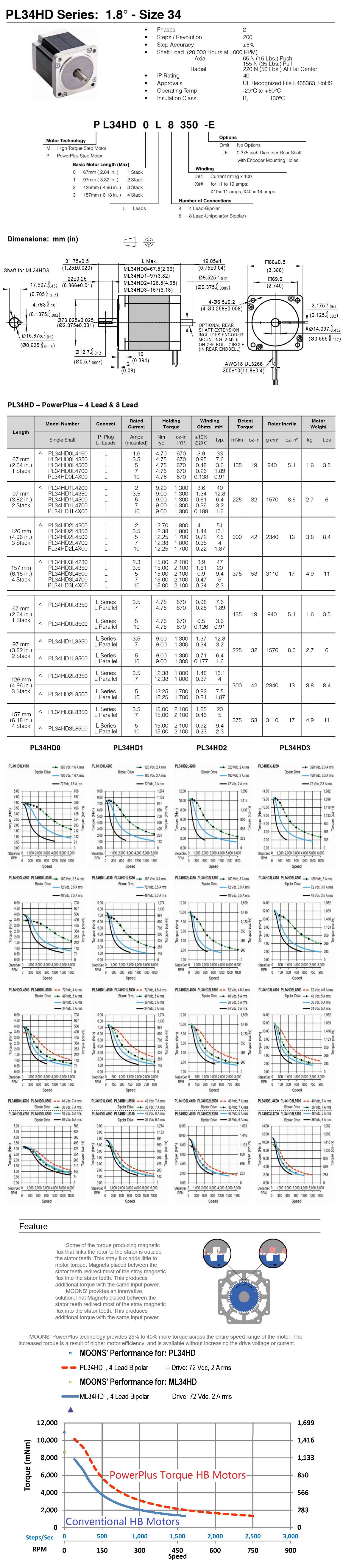

Electrical Specifications Phase: 2 Steps/ Revolution: 200 Step Angle: 1.8° Step Accuracy: ±5% Insulation Class: B, 130℃ Insulation Resistance: 100 MegOhms Axial Load: 65N (15 Lbs.) Push, 155N (35 Lbs.) Pull Radial Load: 220 N (50 Lbs.) At Flat Center Operating Temp.: -20℃~50℃ IP Rating: IP 40 Approvals: UL RecognizedFileE465363, RoHS
Model No.: PL34HD0L4160, PL34HD0L4350, PL34HD0L4500, PL34HD0L4700, PL34HD0L4X00, PL34HD0L8350, PL34HD0L8500, PL34HD1L4200, PL34HD1L4350, PL34HD1L4500, PL34HD1L4700, PL34HD1L4X00, PL34HD1L8350, PL34HD1L8500, PL34HD2L4200, PL34HD2L4350, PL34HD2L4500, PL34HD2L4700, PL34HD2L4X00, PL34HD2L8350, PL34HD2L8500, PL34HD3L4230, PL34HD3L4350, PL34HD3L4500, PL34HD3L4700, PL34HD3L4X00, PL34HD3L8350, PL34HD3L8500
|
|
