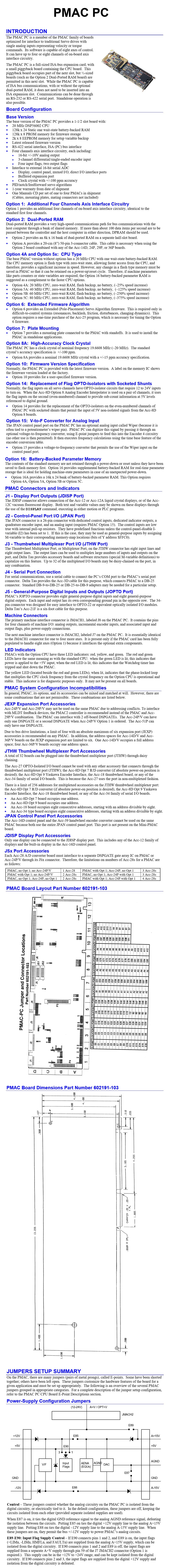

Delta Tau: Programmable Multi-Axis Controller (PMAC-PC)
The PMAC PC is a member of the PMAC family of boards optimized for interface to traditional Servo drives with single analog inputs representing velocity or torque commands. Its software is capable of eight axes of control. It can have up to four or eight channels of on-board axis interface circuitry.
The PMAC PC is a full-sized ISA-bus expansion card, with a small piggyback board containing the CPU board. This piggyback board occupies part of the next slot, but ½-sized boards (such as the Option 2 Dual-Ported RAM board) are permitted in this next slot. While the PMAC PC is capable of ISA bus communications, with or without the optional dual-ported RAM, it does not need to be inserted into an ISA expansion slot. Communications can be done through an RS-232 or RS-422 serial port. Standalone operation is also possible.
Board Configuration
Base Version | The base version of the PMAC PC provides a 1-1/2 slot board with:
20 MHz DSP56002 CPU
128k x 24 Static one wait-state battery-backed RAM
128k x 8 PROM memory for firmware storage
2k x 8 EEPROM memory for setup variable backup
Latest released firmware version
RS-422 serial interface, ISA (PC) bus interface
PID/notch/feedforward servo algorithms
1-year warranty from date of shipment
One Manuals CD per set of one to four PMACs in shipment (Cables, mounting plates, mating connectors not included)
Four channels axis interface circuitry, each including:
16-bit +/-10V analog output
3-channel differential/single-ended encoder input
Four input flags, two output flags
Interface to external 16-bit serial ADC:
Display, control panel, mixed I/O, direct I/O interface ports
Buffered expansion port
Clock crystal with +/-100 ppm accuracy
