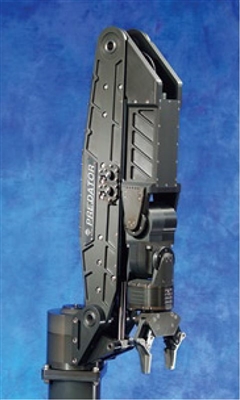

Kraft: Manipulator System (Predator Series)

Predator is a 7-function, hydraulically powered manipulator for use in both deep ocean and hazardous inland environments. Widely regarded as a leading example of state-of-the- art manipulator technology, Predator delivers unparalleled controllability and responsiveness to operator commands. With over 79 inches of reach and a lift capacity of 500 lbs, Predator delivers powerful manipulator performance in a streamlined, integrated package.

Intuitive master/slave control allows even an inexperienced operator to perform work tasks with human like motion and speed. Force feedback dramatically improves operator awareness and allows the operator to perform tasks more quickly and perform tasks of much greater complexity. In addition to improved telepresence, the compliant nature of a force feedback system greatly reduces the risk of accidental damage to both the work site and the manipulator arm.

Predator is the beneficiary of over 25 years of manipulator system development and manufacturing experience. Predator is a mature product combining field proven technology with simplicity of design. With an emphasis on overall system reliability and field serviceability, the Predator manipulator arm incorporates fewer components and is less complicated than any other manipulator in its class. By design Kraft manipulator arms minimize overall cost of ownership.

Kraft force feedback manipulator arms have achieved a remarkable track record by demonstrating exceptional performance and reliability in demanding undersea, nuclear, aerospace, electric utility, and military applications worldwide. When ease of operation and productivity at the work site are important, Predator offers outstanding performance.

Features
