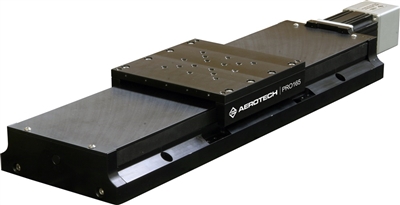

PRO165-HS Mechanical-Bearing Ball-Screw Linear Stage

Design Features

  • Seven models with travels from 100 mm to 500 mm

  • 4X speed capability of the regular PRO series – up to 1200 mm/s

  • Side-seal design with hard cover

  • Low-cost; high performance

  • NEMA 23 motor flange mount

  • Long-life linear motion guide bearing system

The PRO165-HS is a medium performance, entry-level linear stage and comes with a 20 mm/rev ball screw for high-speed applications requiring up to 1200 mm/s. It is similar in design to the PRO115-HS series, providing additional load carrying capability with larger bearings and a wider cross-section.

Rugged Construction

The hard-cover design provides protection from debris. The robust aluminum cover is hard-coated providing a scratch-resistant surface.

The side seals keep dirt and particulates out of the stage and protect the bearing surfaces from contamination. The vertical orientation of the seals easily deflects debris away from the stage. The tabletop can be outfitted with an optional brush assembly to remove any particles that collect on the hard cover. Competitive top-seal designs can ingest debris in the seal, resulting in the eventual failure and replacement of the sealing mechanism.

NEMA 23 Motor Support

The PRO165-HS has a NEMA 23 motor flange mounting interface and can be ordered with an Aerotech standard brushless rotary motor installed. Alternatively, the stage can be ordered without a motor for the attachment of third-party DC brush, brushless or stepper motors.

Highly Configurable

The stage is equipped with a ground 20 mm/rev ball screw for high-speed applications and can be outfitted with English or metric bolt-hole pattern tabletops. A stage mounted brake option is available to prevent back-driving the screw when power is removed from the servomotor. A fold-back kit is also available to effectively reduce the overall stage length for space-constrained applications.

Model No.: PRO165-HS-100, PRO165-HS-150, PRO165-HS-200, PRO165-HS-250, PRO165-HS-300, PRO165-HS-400, PRO165-HS-500
