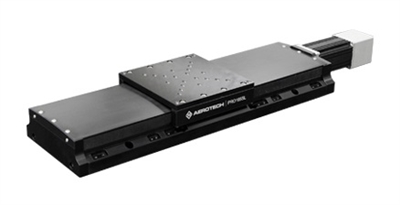

PRO165SL and SLE Mechanical Bearing, Ball-Screw Stage

Design Features

The PRO165SL and PRO165SLE are Aerotech’s second-generation PRO165 stage designs with many improvements and added features. Enhanced positioning specifications coupled with competitive pricing make the PRO165SL/SLE stage the ideal choice for both medium and high-performance applications. The design is similar to the PRO115SL/SLE series, providing additional load capacity and stiffness with larger bearings and a wider cross-section.

Rugged Mechanical Construction

A long-life recirculating linear guide bearing system and a low-friction sealing solution make the PRO165SL/SLE an attractive solution for industrial applications such as laser machining. The basic external construction of the PRO165SL/SLE design provides protection from debris while the side-seals prevent dirt and particulates from entering the stage. The curved hard-cover design provides a natural shape that prevents excessive debris from collecting on the stage.

Linear Encoder Option

For applications requiring direct-metrology of the output carriage, the PRO165SLE integrates a direct linear encoder that is protected by the stage sealing system. Amplified sine, digital TTL output, and absolute encoders are available as standard options for linear feedback.

Design and Integration Flexibility

The PRO165SL/SLE is designed with many standard features and options that make the design incredibly flexible and allow it to be easily tailored to a specific
application. The PRO165SL/SLE is available in 18 different models with travels ranging from 50 mm to 600 mm and speeds up to 300 mm/s.

The base mounting holes are accessible from the outside of the stage allowing for easy mounting. Standard mounting holes for both English and metric optical tables are present in all travels. The tabletop is available with both English and metric mounting patterns and can be ordered with brush attachments to clear any debris that may collect on the stage hardcover. Tabletops with hole patterns that allow the direct attachment of Aerotech’s ADRS, ACS-LP, ADRT, ACS, and AGR rotary stages are also available.

Aerotech BM or BMS series brushless servo motors are available with a variety of encoder options providing net electronic resolutions ranging from 0.5 μm down to sub-nm. A holding brake can be added to the motor for vertical applications. A motor foldback kit is available for space constrained applications to reduce the overall stage length.

The PRO165SL/SLE series is also available with cleanroom preparation and vacuum versions.
