Aerotech: Mechanical-Bearing Ball-Screw Linear Stage (PRO280-HS Series)
Aerotech: Mechanical-Bearing Ball-Screw Linear Stage (PRO280-HS Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: PRO280-HS


Model No.:


.

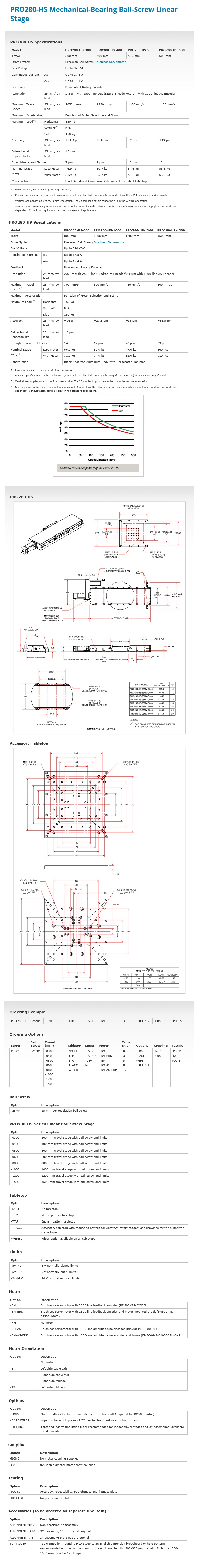

Description Specifications and Drawings


Aerotech: Linear Motor Drive Precision Stage (PRO280-HS Series)

Linear Stages

Aerotech manufactures a large selection of positioning stages including linear stage models that utilize our own brushless linear direct-drive servomotors, as well as ball-screw models driven with Aerotech brush or brushless rotary motors. Innovators in linear stage design, manufacture and integration, Aerotech builds linear positioning stages for high-performance applications in industrial robots, fiber optics and photonics, vision systems, machine tools, assembly, semiconductor equipment, medical component laser machining, laser micromachining, electronic manufacturing, and other industrial automation applications.

Aerotech linear stages are available in X, XY and XYZ combinations to meet your motion requirements.

PRO280-HS Mechanical-Bearing Ball-Screw Linear Stage

Design Features

  • Enhanced load capability versus the PRO115/165/225

  • Eight models with travels from 300 mm to 1500 mm

  • Speeds up to 1400 mm/s

  • Side-seal design with hard-cover protects from debris better than top-seal design

  • Cost effective, rugged design

  • Long-life linear motion guide bearing system

When a PRO-style stage is desired, but more load and speed capability is necessary, the PRO280-HS is ideal. The PRO280-HS comes with a 25 mm/rev ball screw for high-speed applications requiring up to 1400 mm/s and the stage features a maximum load of 150 kg. It is similar in design to the PRO225 series, providing additional load carrying capability with larger bearings and a wider cross-section.

Rugged Construction

The hard-cover design provides protection from debris. The robust aluminum cover is hard-coated providing a scratch resistant surface. The side seals keep dirt and particulates out of the stage and protect the bearing surfaces from contamination. The vertical orientation of the seals easily deflects debris away from the stage. The tabletop can be outfitted with an optional brush assembly to remove any particles that collect on the hard cover. Competitive top-seal designs can ingest debris in the seal, resulting in the eventual failure and replacement of the sealing mechanism.

NEMA 34 Motor Support

The PRO280 has a NEMA 34 motor flange mounting interface and can be ordered with an Aerotech standard brushless rotary motor installed. Alternatively, the stage can be ordered without a motor for the attachment of third-party DC brush, brushless or stepper motors.

Highly Configurable

The stage is equipped with a 25 mm/rev ball screw for all your high-speed applications and can be outfitted with English or metric bolt-hole pattern tabletops. A motor-mounted brake option is available to prevent back-driving the screw when power is removed from the servomotor. A fold-back kit is also available to effectively reduce the overall stage length for space-constrained applications.

Model No.: PRO280-HS-300, PRO280-HS-400, PRO280-HS-500, PRO280-HS-600, PRO280-HS-800, PRO280-HS-1000, PRO280-HS-1200, PRO280-HS-1500
