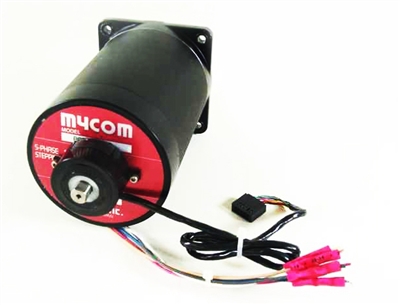

MYCOM: 5 Phase Stepper Motor (PS Series): Size 85
(Standard)
Features
Five leads for easy wiring configurations
Wide selection range to suit various applications
0.3~63 kgcm Max. Holding Torque
Compact size for high Torque performance
Highly cost effective
5 Phase Stepper Motor (PS Series) PDF
Motor Part: PS 5913A, PS 5913B, PS 596A, PS 596B, PS 599A, PS 599B
Type
Motor
Size
(mm)
Motor Part
Max Holding
Torque
(kg-cm)
Rotor
Inertia
(gcm2)
Basic Step
Angle***
Phase
Current
(Amps)
Weight (kg)
STANDARD
(PS Series)
42
PS 533 MA (B)
0.75
9
0.36º
0.11
PS 534 MA (B)
1.1
24
0.2
PS 535 MA (B)
1.4
80
0.32
60
PS 564A (B)
2.3
100
0.72º
0.5
PS 566A (B)
3.7
200
PS 569A (B)
7.6
400
1.3
85
PS 596A (B)
11.8
700
1.5
PS 599A (B)
20.9
1200
2.5
PS 5913A (B)
38.0
1800
3.5
