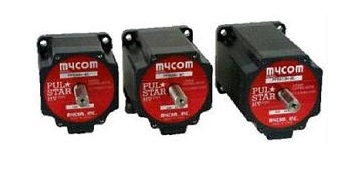

MYCOM: 2-Phase Stepper Motor (PS Series) Size 11
(Hi-Torque)
Features
Six leads for various wiring configurations
High quality bearings to ensure long life
Designed for maximum heat dissipation
Highly Cost effective
High Resolution offers maximum smoothness and improved speed stability
Custom configurations available
Designed for various machine building applications ranging from semiconductor-related equipment to CNC-type systems, from critical medical/lab room-type machinery to material handling apparatus.
Motor Part: PS211-01A, PS211-01B, PS211-04A, PS211-04B, PS211-06A, PS211-06B
Motor Part
Number
Max. Holding Torque
oz.-in. (kg-cm)
Rotor Inertia
(G-cm2)
Step Angle
(Full/Half Step)
Voltage
Rating
(V)
Phase
Current
(A)
Motor
Weight
(g)
High Torque
Size
11
PS211-01A(B)
6.9
9
1.8°/0.9°
2.6
0.95
110
PS211-04A(B)
4.8
7
0.25
PS211-06A(B)
3.6
0.5
17
PS217-02A
21.94
35
0.9°/0.45°
6
0.6
220
PS443-01A(B)
15.2
4
200
PS443-02A(B)
9.6
0.4
PS443-03A(B)
12
0.32
PS443-06A(B)
PS444-01A(B)
22.2
25
24
0.24
PS445-01A(B)
30
1.2
260
PS445-02A(B)
30.5
36
0.8
23
PS464-01A(B)
40.2
60
1.1
340
PS464-02A(B)
2.8
2
PS465-01A(B)
62
92
0.85
420
PS466-01A(B)
83.3
125
550
PS466-04A(B)
76.3
1.6
PS466-12A(B)
120
3.3
2.2
PS468-21A(B)
5.4
1.5
850
PS4610-01A(B)
150
350
1.88
1400
34
PS496-01A(B)
173
560
1.8
4.5
1450
PS496-02A(B)
173.6
5.5
1.25
PS499-01A(B)
305
1100
3.0
4.0
2600
PS499-02A(B)
306
6.0
2.0
PS4913-01A(B)
486
1800
5.0
3600
PS4913-02A(B)
12.0
High Torque/ High Resolution
Size 23
PS468M-21A(B)
PS496M-02A(B)
PS499M-01A(B)
PS4913M-02A(B)
Step Angle Accuracy
+3 min.
Insulation Class
Class B
Insulation Resistance
>100M @ 500V and normal ambient temp and humidity
Operating Temperature
0°C to +50°C
Shaft Play
Radial 0.001 in.max./1.1 lbs.load
Axial 0.003 in.max./2.2 lbs.load
Thrust Load
Size 17 = 13.9 lbs. Max.
Size 23 = 24.9 lbs. Max.
Size 34 = 49.8 lbs. Max.
Over Hang Load
Size 17 = 7.7 lbs. Max.
Size 23 = 15 lbs. Max.
Size 34 = 24.9 lbs. Max.
