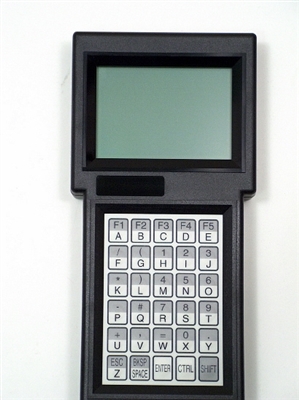

Two Technologies PTNEL30R4-H Series Rugged Handheld Terminal, Twisted Nematic Display, 30 Key Keypad, RS-422, 9-28v, Black

The HV Series is a line of ASCII terminals for use with computers, properly equipped instruments and industrial machinery.

Custom configurations and special options available, including: Custom Default Settings, Displays, Keypad Graphics, I/O Interface, Firmware, Case Color, Boot and Logo Tag

Three (3) year warranty included.

Looking for the End of Life Beijer Qterm J10 or Qterm N15 or any Legacy Terminals, HMI, or Teach Pendants? TwoTechnologies has replaced End of Life Unit in the field. The PTNEL30 is a Plug and Play replacement.

Display

• 8 Line x 24 Characters
• 16 Line x 32 Character
• 192 x 128 Pixel Liquid Crystal Graphical Display
• Supertwist Display (Standard)
• Supertwist Backlit
• Extended Temperature Supertwist Backlit FSTN

Keys & Switches

• Membrane 30-Key
• Standard or Custom Layout
• Backlit (Option)
• Phosphorescent (Option)
• Backlit Phosphorescent (Option)
• E-Stop (Option)
• LED Indicators

Power

• 9-28 VDC Regulated +/- 5%

Interface

• RS-422
• Data Rates: 300 - 19,200 and 57,600 bps

Environment

• Storage Temp: - 20° to +70°C
• Operating Temp: 0° to +50°C
• Extended Temp: -20°C to +70°C
• Humidity 5-95% (Non-Condensing)

User Selectable Options

• Baud
• Data Bits
• Parity
• Stop Bits
• Display PE
• Repeat
• Key Click
• KNP Function
• Cursor
• Cursor Blink
• XON/XOFF
• Handshake
• Echo
• Escape Mode
• CR/LF Mode
• Self-Test
• Shift Lock
• Viewing Angle
• Break Commands
• Backlight
• Scroll on Last Character

Custom Options

• Default settings
• Displays
• Keypad graphics
• I/O interface
• Firmware
• Case Color
• Logo Tag

Certifications

• FCC-Part 15 Subpart B Class A
• CENELEC EMI Standards- EN55022:1998 (CISPR22, Class A),
• EN55011 (CISPR11, Class A)
• CENELEC EMC Standards- EN50082-1:1997 General Immunity Part 1,
• EN55024:98 (CISPR24:1997)
• CENELEC SAFETY Standard EN60950

Features

• Large Display - 8 rows x 24 Characters or 16 Rows x 32 Characters (Menu or Host- Selectable) with Graphics Capabilities
• Optional E-Stop
• ANSI 3.64 (VT-100) Compatibility
• Keys Programmable as Characters or Strings
• Advanced Control Mode (ACM)
• Programmable Display Characters
• Menu or Host-Driven User Parameter Selection
• Up to 57,600 bps Communications (9,600 bps Without Handshaking)
• Height: 8.25 inches (209.6 mm)
• Width: 4.10 inches (104.1 mm)
• Depth: 1.15 inches (29.2 mm)
• Weight: 12 ounces (340 grams)
• Case: Rugged Cycolac ABS
