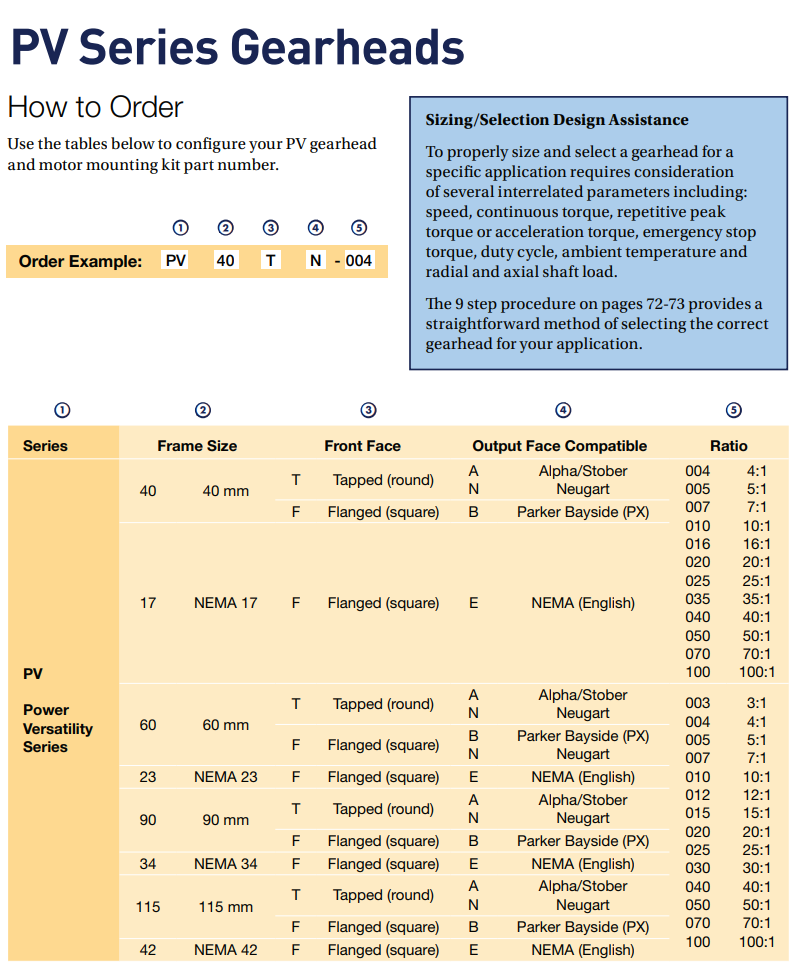

Ordering Information

Specifications and Drawings

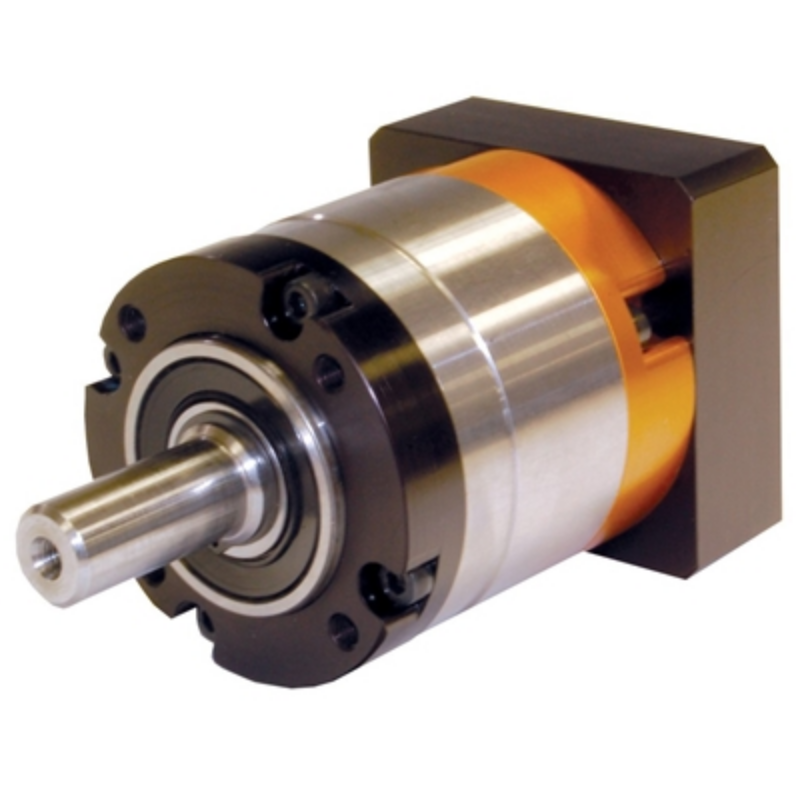

Parker: Standard Precision Inline Planetary Gearhead PV34FE-010

PV-series planetary gearheads combines power & versatility with a wide range of options, high radial load capacities and maintenance free operation.

The PV-series inline planetary gearhead combines power and versatility in an economical package. It comes in a wide range of options, including dimensional output face crossovers to the Parker PX, Alpha LP, Neugart PLE, Stober PE and standard NEMA gearheads.

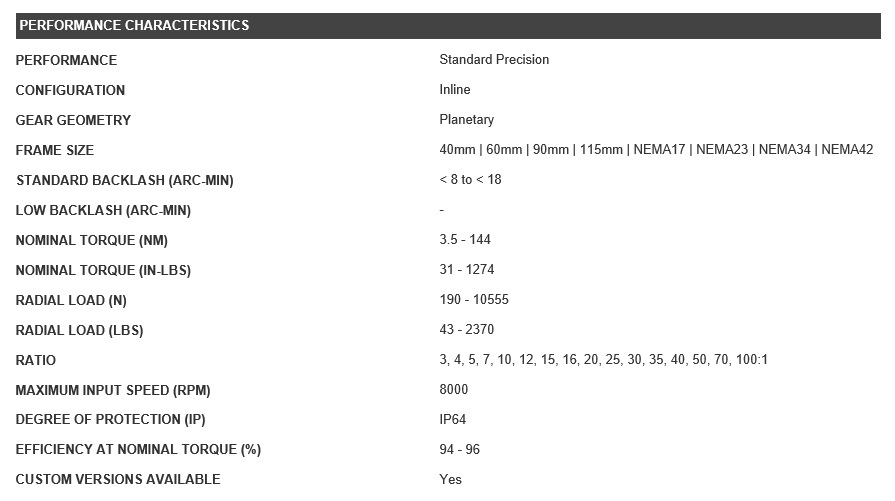

Features:

Standard Precision, Inline Planetary Gearhead
Frame Sizes: NEMA34
Ratio Options: 10:1
High Torque / Low Backlash: planetary gear geometry
Backlash: to < 8 arc-minutes (standard)
Efficiency: up to 96%
Quiet Operation: less than 70db
High Input Speeds: up to 8,000 RPM
Higher Radial Load Capacity: taper roller output bearings
High Stiffness: Integral ring gear and rigid sun gear
Higher Gear Wear Resistance: plasma nitriding heat treatment
Competitive Alternatives: Five Drop-In Output Face Options
Universal Mounting Kits: quicker deliveries and easier mounting
IP64 protection

PV34FE-010

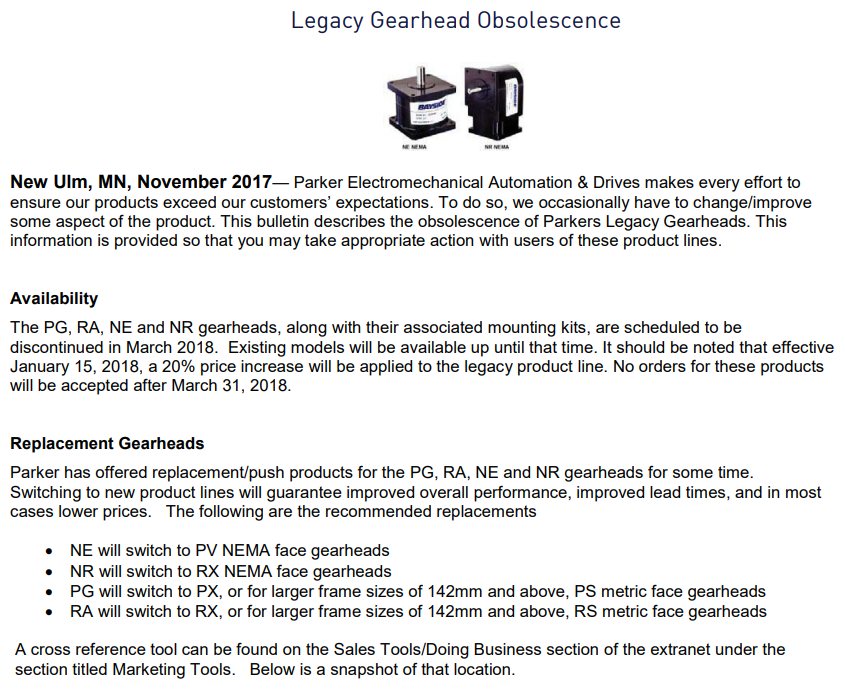

Nema34 gearbox with front flange, 10:1 ratio replaces NE34-010 Same rotation see SD1457 When ordering please provide the motor this is connecting to so we can provide the correct adapter.
