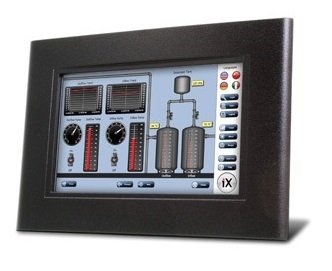

QTERM-A7

7" Rugged HMI with extended operating temperature

This rugged terminal features universal connectivity with a bright 7" (177 mm) TFT-LCD display, 800 x 480 pixels resolution and resistive touchscreen.

Environmentally rugged

The operator panel is designed to perform in environments with high levels of shock, vibration, humidity and extreme temperature ranges, and is certified and listed accordingly for hazardous areas; IP66 and NEMA 4X sealing, UL 50 Type 4X, UL 508 and UL listed Class I Div 2 certified. The operating temperature ranges from -30 to +70 °C.

Connectivity

A wide range of drivers along with Ethernet 10/100Base-T, two USB 2.0 full-speed host ports and two serial ports enables connection to nearly any device.

Choice of software

The panel comes loaded with your choice of Beijer Electronics intuitive iX software for automation control or you can program directly in the Windows® Embedded CE 6.0 environment.
