Parker Trilogy: RIPPED Ironcore Linear Motors (R5 Series)
Parker Trilogy’s RIPPED ironcore linear motors, with their patent-pending anti-cog technology, can produce the large forces needed for many industrial applications – without the roughness associated with traditional ironcore linear motors. With forces ranging from 13 lbf (57.8 N) continuous up to 1671 lbf (7433 N) peak, the RIPPED family is well suited for a broad range of extremely demanding applications.
The RIPPED motor connector modules allow quick and easy installation while reducing overall maintenance costs. Ultra-high-flex cables come standard. In addition, we offer modular magnet tracks for unrestricted travel length.
Virtually cog-free operation combined with powerful ironcore technology make the RIPPED family of motors a superior choice for high-force, ultra-smooth motion and affordability.
Features and Benefits:
RIPPED Ironcore Linear Motor for high force applications
Patent Pending ultra-smooth anti-cog technology
Connector modules allow quick and easy installation
Internal thermal cutout switch protects coil
Digital HEDs, Home & +/-Limit Sensors incorporated into Connector Module
Modular magnet tracks with flush mounted magnet separators
Built in cable strain relief
Two lengths of modular magnet tracks allow unlimited length of travel

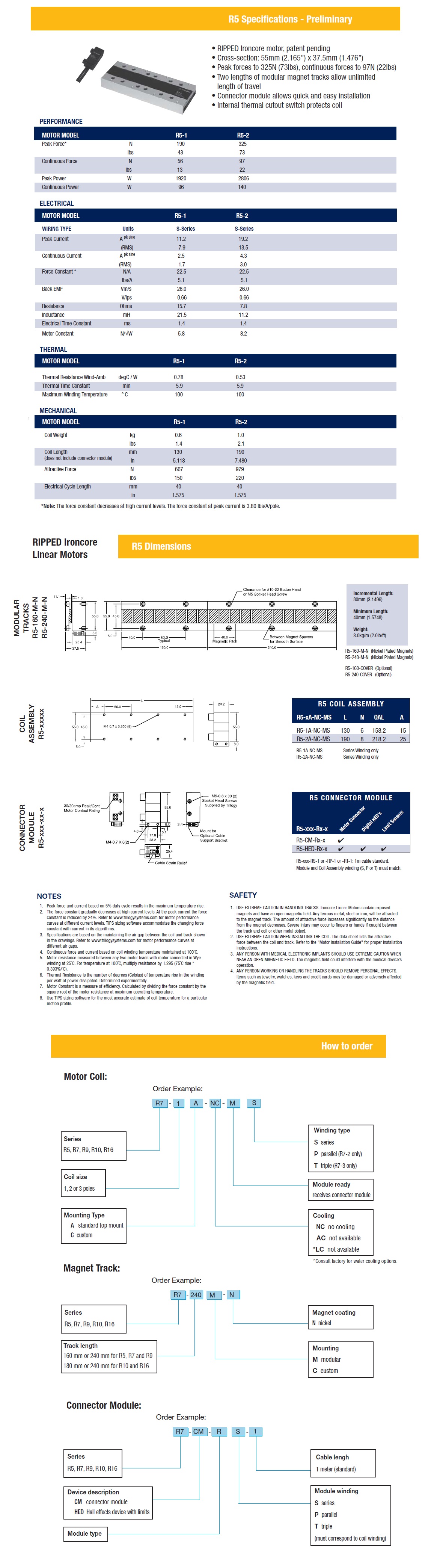

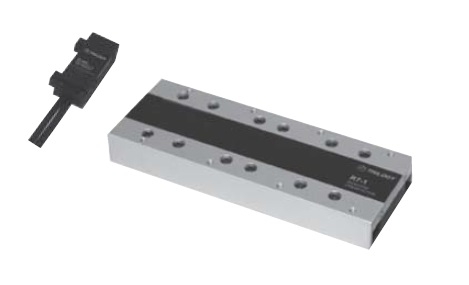

RIPPED Ironcore motor, patent pending
Cross-section: 55mm (2.165”) x 37.5mm (1.476”)
Peak forces to 325N (73lbs), continuous forces to 97N (22lbs)
Connector module allows quick and easy installation
Linear Motor Advantages
High Speeds
High Accelerations
Fast Response – 100 times that of a mechanical system
Stiffness – spring rate better than a mechanical system
Zero Backlash – direct drive technology
Maintenance Free Operation – mechanical simplicity due to reduced component count
Long Travels Without Performance Loss
Suitable for Vacuum and Extreme Environments
Applications
Semiconductor and Electronics
Flat Panel and Solar Panel Manufacturing
Medical and Life Sciences
Machine Tools
Optics and Photonics
Large Format Printing, Scanning and Digital Fabrication
Packaging and Material Handling
Automated Assembly
Parker has one of the broadest offerings in available linear motor technologies. From component or “kit” style motors, packaged positioning tables, to complete custom engineered systems, Parker can provide a solution for any linear motion requirement.
Component Motors
Ironless Motors – ultra high performance and zero cogging
Ironcore Motors – highest power per package size
Slotless Motors – good linear force, smooth translation, low cost
Industrial Grade Positioners
Pre-engineered, ready-to-run packages
Drive / amplifier connectorization
High dynamic velocity and accelerations
High precision
Precision Grade Positioners
Pre-engineered, ready to run packages
Extremely high precision
Miniature positioners available
Multi-Axis Capability
Standard transition brackets available
Custom configurations
Dowel pinning for superior orthogonality
Cable Management
Custom Engineered Systems
Let Parker’s extensive motion design experience, systematic project management process, and global infrastructure solve your most demanding motion problems.
Collaborative development cycle aligns customer goals and rigorous performance specifications with a complete engineered solution.
Model No.: R5-1, R5-2
