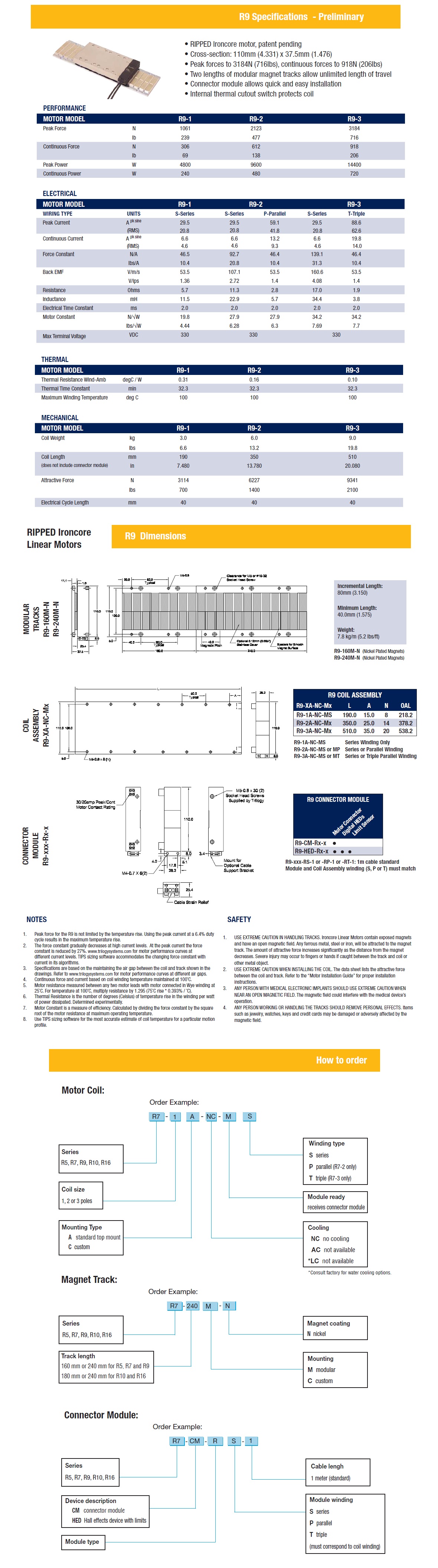

Description Specifications and Drawings

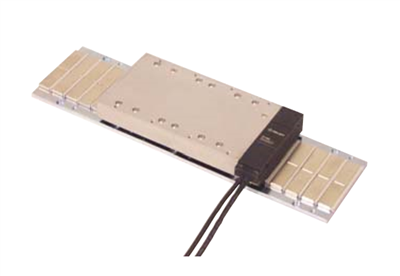

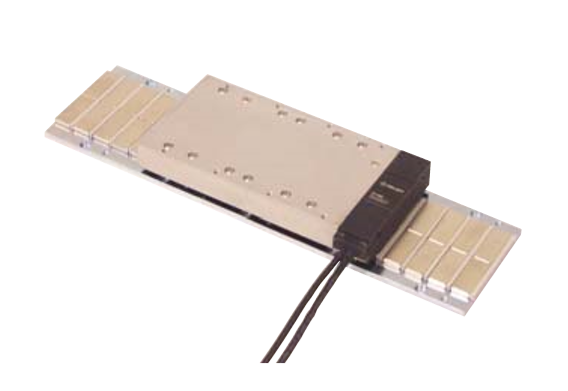

Parker Trilogy: RIPPED Ironcore Linear Motors (R9 Series)

Parker Trilogy’s RIPPED ironcore linear motors, with their patent-pending anti-cog technology, can produce the large forces needed for many industrial applications – without the roughness associated with traditional ironcore linear motors. With forces ranging from 13 lbf (57.8 N) continuous up to 1671 lbf (7433 N) peak, the RIPPED family is well suited for a broad range of extremely demanding applications.


The RIPPED motor connector modules allow quick and easy installation while
reducing overall maintenance costs. Ultra-high-flex cables come standard. In addition, we offer modular magnet tracks for unrestricted travel length.


Virtually cog-free operation combined with powerful
ironcore technology make the RIPPED family of motors a superior choice for high-force, ultra-smooth motion and affordability.


Features and Benefi
ts:

  • RIPPED Ironcore Linear Motor for high force applications

  • Patent Pending ultra-smooth anti-cog technology

  • Connector modules allow quick and easy installation

  • Internal thermal cutout switch protects coil

  • Digital HEDs, Home & +/-Limit Sensors incorporated into Connector Module

  • Modular magnet tracks with flush mounted magnet separators

  • Built in cable strain relief

  • Two lengths of modular magnet tracks allow unlimited length of travel

  • RIPPED Ironcore motor, patent pending

  • Cross-section: 110mm (4.331) x 37.5mm (1.476)

  • Peak forces to 3184N (716lbs), continuous forces to 918N (206lbs)

  • Two lengths of modular magnet tracks allow unlimited length of travel

  • Connector module allows quick and easy installation

  • Internal thermal cutout switch protects coil


Linear Motor Advantages

  • High Speeds

  • High Accelerations

  • Fast Response – 100 times that of a mechanical system

  • Stiffness – spring rate better than a mechanical system

  • Zero Backlash – direct drive technology

  • Maintenance Free Operation – mechanical simplicity due to reduced component count

  • Long Travels Without Performance Loss

  • Suitable for Vacuum and Extreme Environments


Applications

  • Semiconductor and Electronics

  • Flat Panel and Solar Panel Manufacturing

  • Medical and Life Sciences

  • Machine Tools

  • Optics and Photonics

  • Large Format Printing, Scanning and Digital Fabrication

  • Packaging and Material Handling

  • Automated Assembly


Parker has one of the broadest offerings in available
linear motor technologies. From component or “kit” style motors, packaged positioning tables, to complete custom engineered systems, Parker can provide a solution for any linear motion requirement.


Component Motors

  • Ironless Motors – ultra high performance and zero cogging

  • Ironcore Motors – highest power per package size

  • Slotless Motors – good linear force, smooth translation, low cost


Industrial Grade Positioners

  • Pre-engineered, ready-to-run packages

  • Drive / amplifier connectorization

  • High dynamic velocity and accelerations

  • High precision


Precision Grade Positioners

  • Pre-engineered, ready to run packages

  • Drive / amplifier connectorization

  • Extremely high precision

  • Miniature positioners available


Multi-Axis Capability

  • Standard transition brackets available

  • Custom configurations

  • Dowel pinning for superior orthogonality

  • Cable Management


Custom Engineered Systems

  • Let Parker’s extensive motion design experience, systematic project management process, and global infrastructure solve your most demanding motion problems.

  • Collaborative development cycle aligns customer goals and rigorous performance specifications with a complete engineered solution.


Model No.: R9-1, R9-2, R9-3
