Rotary Voice Coil Actuators (RA60 Series)

The BEI Kimco Magnetics' RA models are used in many applications, ranging from Z axis control in semiconductor lead bonding equipment to gimbal torques and pick-and-place robotics. Actuators feature maximum stroke of +/- 60 degrees, maximum torque of 20nm, through hole and set screw hole for easy shaft coupling and two through holes for field assembly mounting. Choices include arc-segment and cylindrical designs.

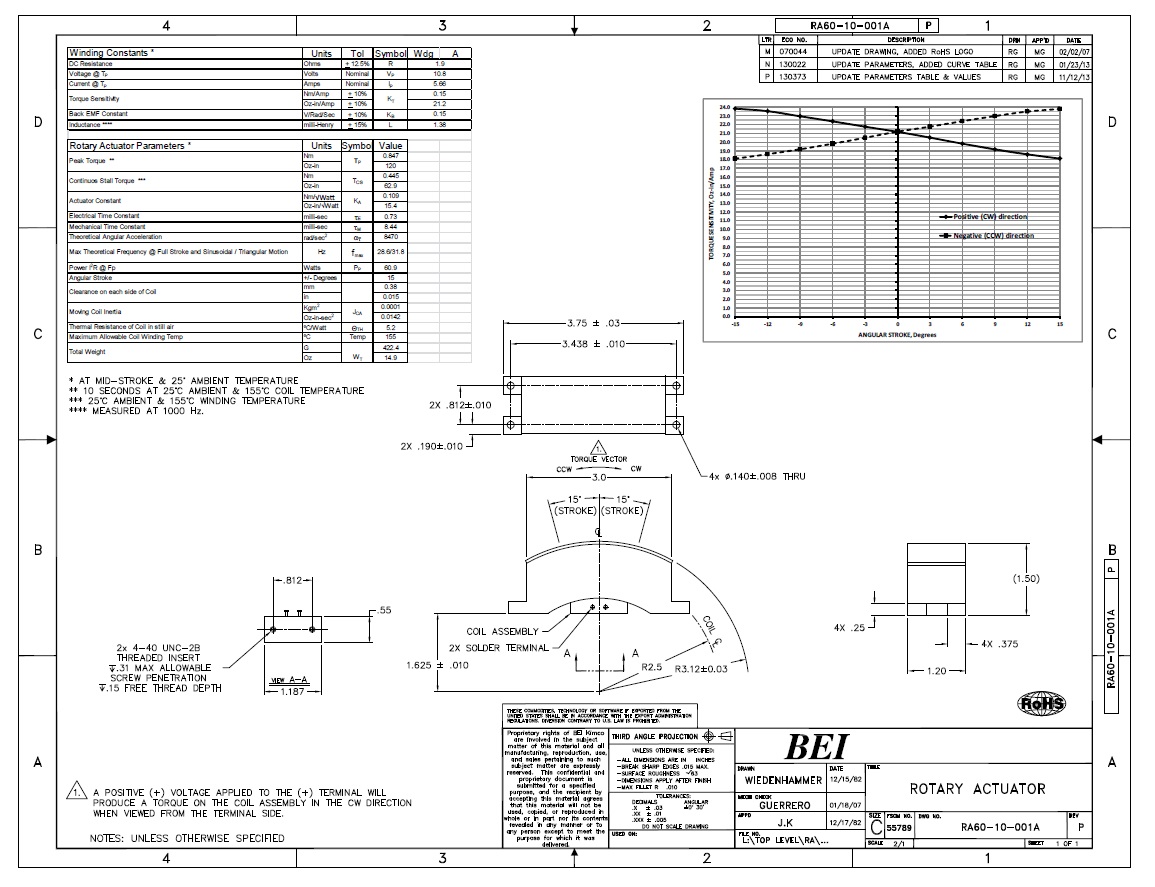

RA60-10-001A:

Peak Torque (oz-in.): 120

Continuous Stall Torque (oz-in): 56.1

Total Excursion Angle (degrees): 30

Actuator Constant (oz-in/watt): 13.8

Width (in.): 1.2

Height (in.): 1.5
