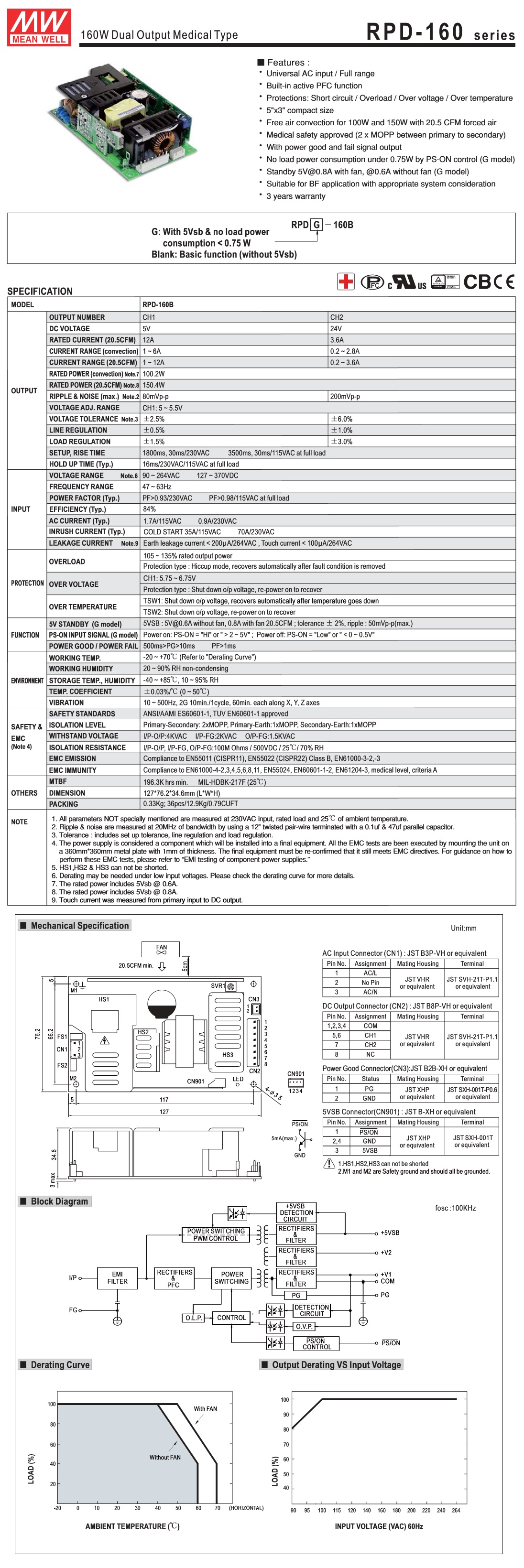

Description Specifications and Drawings

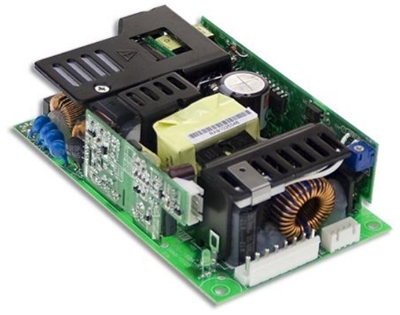

Mean Well: Open Frame Switching Power Supply (RPD-160 Series)

Features:

  • OPTION: 5VSB and Enable function with RPSG Models

  • Output(s): CH1: 5.0V @ 12.00A, CH2: 24.0V @ 3.60

  • Power (Convection): 100.2 Watts

  • Power (20.5 CFM): 150.4 Watts

  • Voltage Adj. Range: CH1: 5~ 5.5V

  • Dimensions (Inches): 5.00” x 3.00” x 1.36"

  • Operational Efficiency: 84.00%

  • Operating Temperature: -20 ~ +70°C

  • Medical Safety Approvals (UL/EN60601)

  • Universal AC input / Full range with Active PFC

  • Short circuit / Overload / Over voltage Protection Circuits

  • High Density 3 x 5 Package

  • Free air convection for 110W and 160W with 20.5 CFM forced air

  • <0.75W No-Load Power Consumption with optional PS-ON control

  • Power Good / Fail Signal

  • Remote Sense on Single 5-15V Models only

  • 3 year warranty

  • Weight: 0.33 Kg
