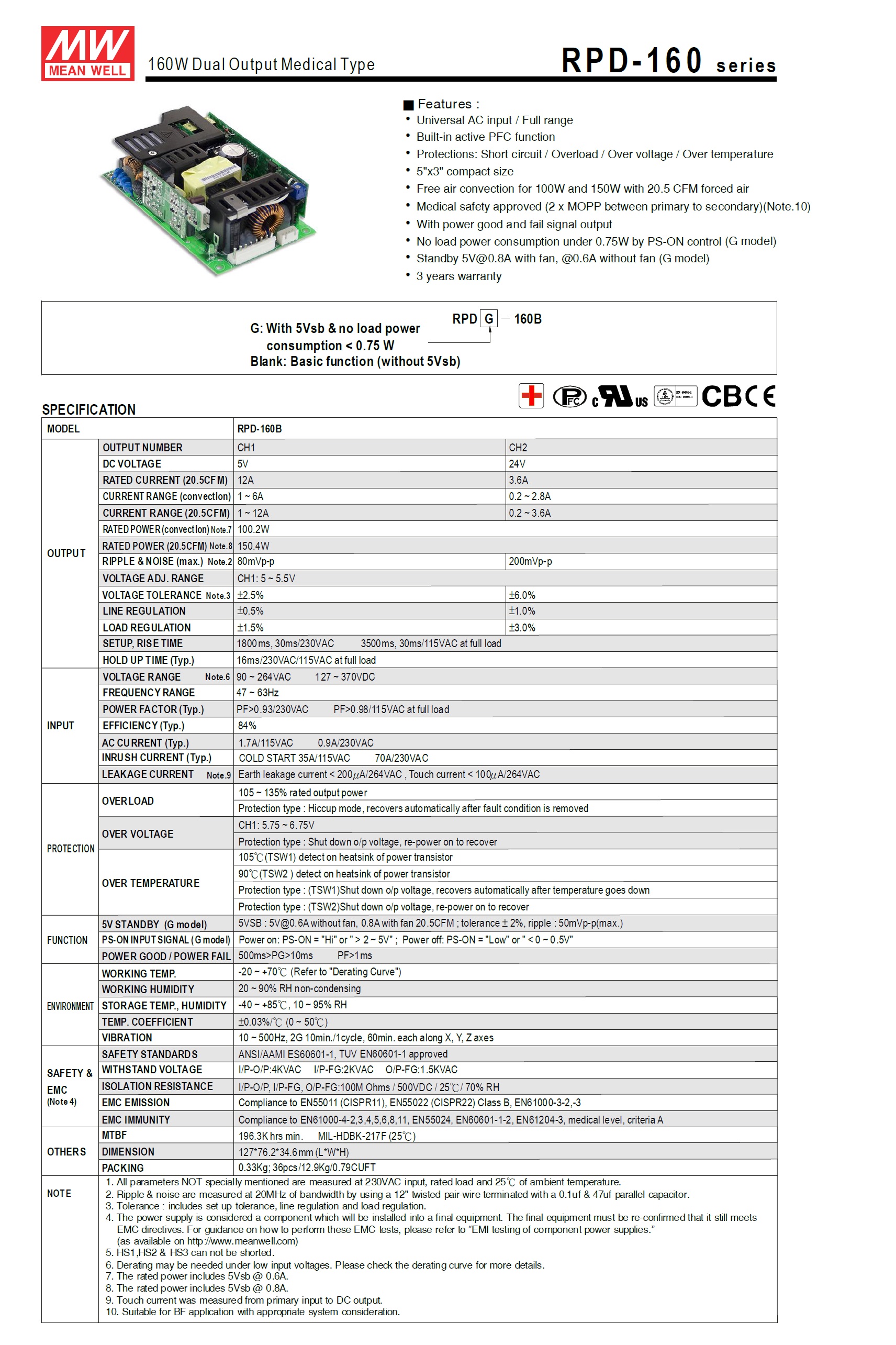

RPDG-160B Features:

• Output(s): CH1: 5.0V @ 12.00A, CH2: 24.0V @ 3.60
• Power: 100.2 Watts
• Voltage Adj. Range: CH1: 5 ~ 5.5V
• Dimensions (Inches): 5.00” x 3.00” x 1.65"
• Operational Efficiency: 84.00%
• Operating Temperature: -20 ~ +70°C
• Medical Safety Approvals (UL/EN60601)
• Universal AC input / Full range with Active PFC
• Short circuit / Overload / Over voltage Protection Circuits
• High Density 3 x 5 Package
• Free air convection for 110W and 160W with 20.5 CFM forced air
• <0.75W No-Load Power Consumption with optional PS-ON control
• Power Good / Fail Signal
• Remote Sense on Single 5-15V Models only
• 3 years warranty
• Weight: 0.33 Kg

OPTION: 5VSB and Enable function with RPSG Models
