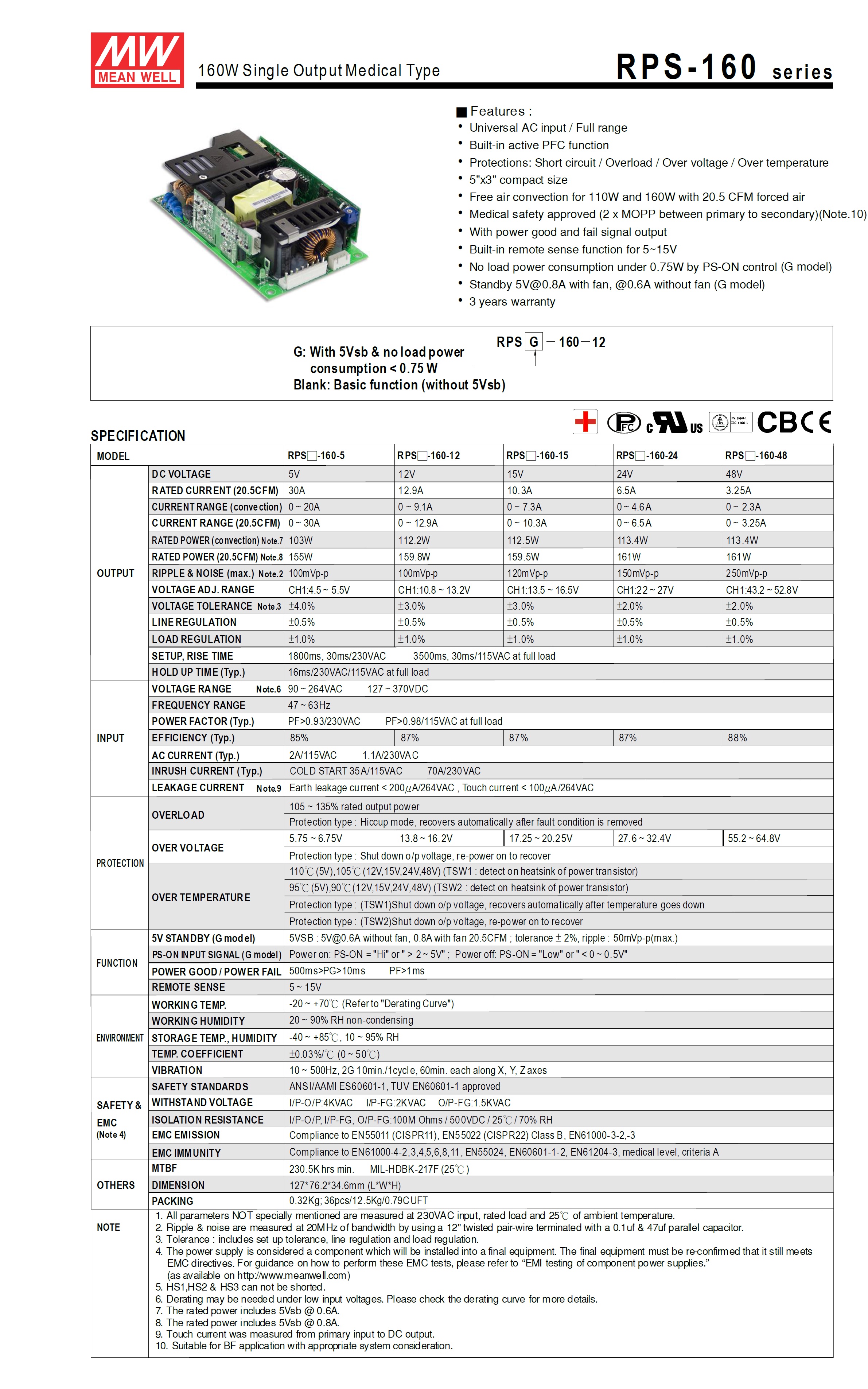

RPSG-160-12 Features:

• Output(s): 12.0V @ 12.90A
• Power: 112.2 Watts
• Voltage Adj. Range: CH1: 10.8 ~ 13.2V
• Dimensions (Inches): 5.00” x 3.00” x 1.22"
• Operational Efficiency: 87.00%
• Operating Temperature: -20 ~ +70°C
• Medical Safety Approvals (UL/EN60601)
• Universal AC input / Full range with Active PFC
• Short circuit / Overload / Over voltage Protection Circuits
• High Density 3 x 5 Package
• Free air convection for 110W and 160W with 20.5 CFM forced air
• <0.75W No-Load Power Consumption with optional PS-ON control
• Power Good / Fail Signal
• Remote Sense on Single 5-15V Models only
• 3 years warranty
• Weight: 0.32 Kg

OPTION: 5VSB and Enable function with RPSG Models
