Mean Well Open Frame Switching Power Supply : RPTG-160A
Mean Well Open Frame Switching Power Supply : RPTG-160A

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: RPTG-160A
.

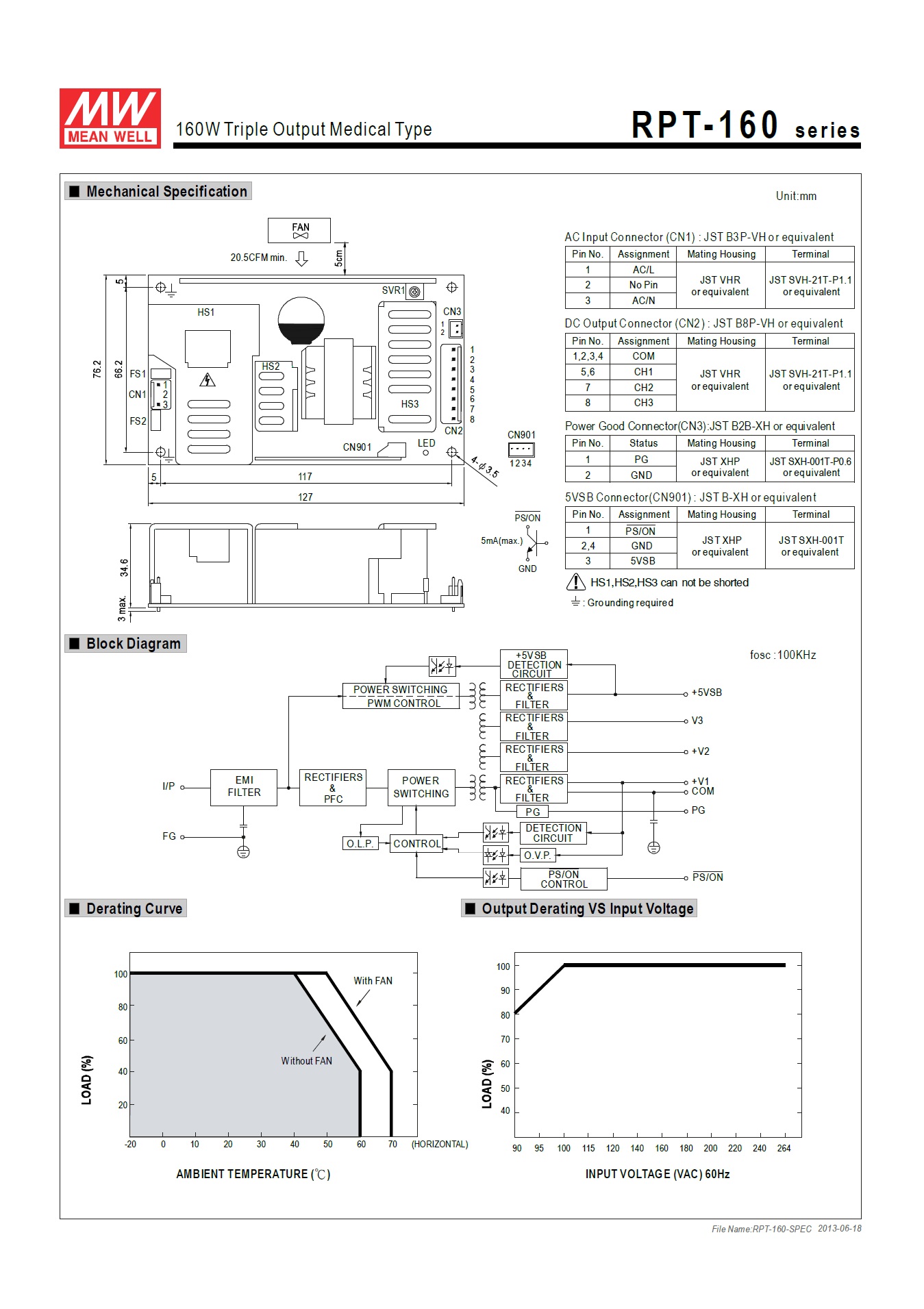

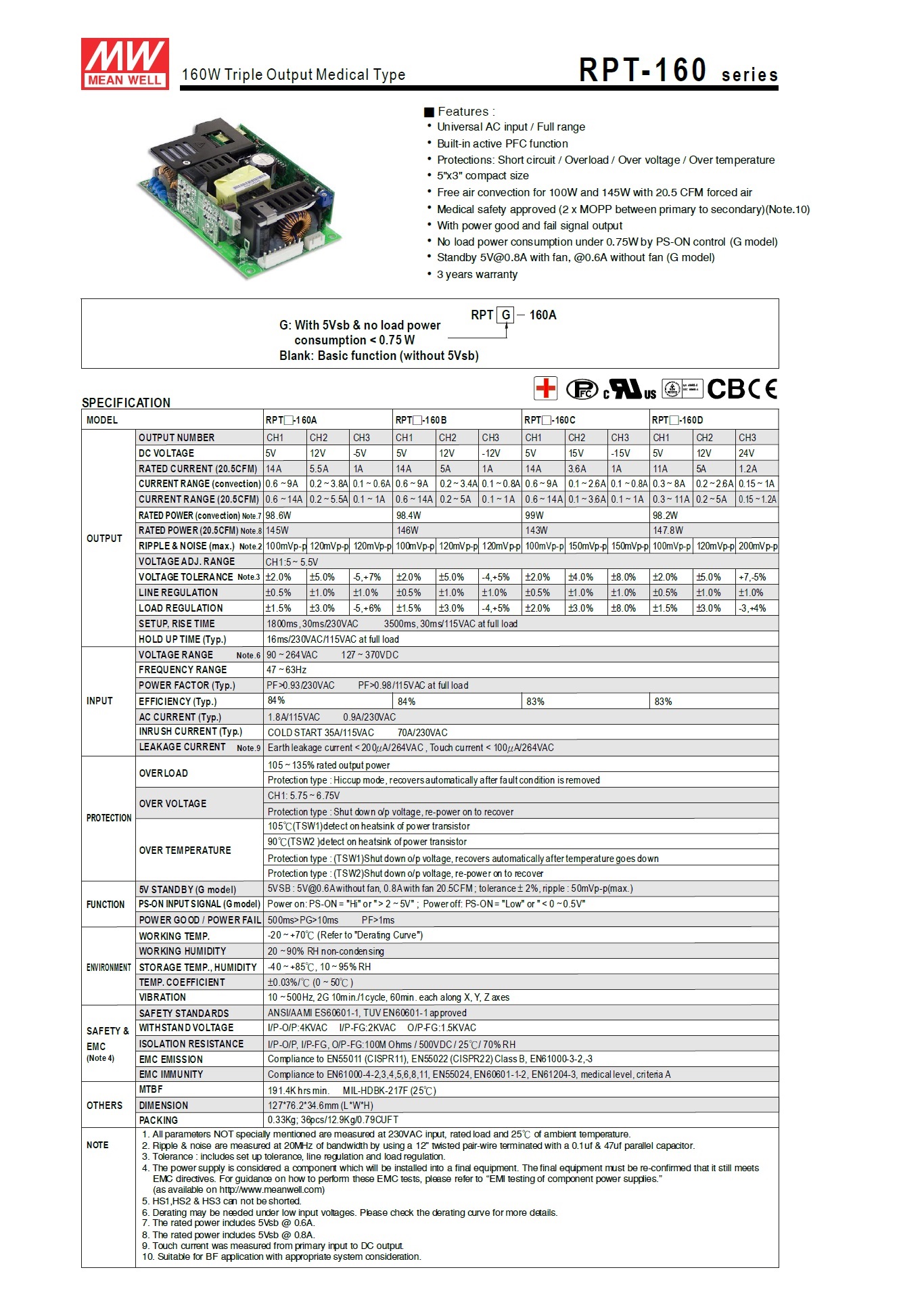

Description Specifications and Drawings


RPTG-160A Features:

  • Output(s): 5.0V @ 14.00A, CH2: 12.0V @ 5.50, CH3: -5.0V @ 1.00
  • Power: 98.6 Watts
  • Voltage Adj. Range: CH1: 5 ~ 5.5V
  • Dimensions (Inches): 3.00” x 5.00” x 1.36"
  • Operational Efficiency: 84.00%
  • Operating Temperature: -20 ~ +70°C
  • Medical Safety Approvals (UL/EN60601)
  • Universal AC input / Full range with Active PFC
  • Short circuit / Overload / Over voltage Protection Circuits
  • High Density 3 x 5 Package
  • Free air convection for 110W and 160W with 20.5 CFM forced air
  • <0.75W No-Load Power Consumption with optional PS-ON control
  • Power Good / Fail Signal
  • Remote Sense on Single 5-15V Models only
  • 3 years warranty
  • Weight: 0.33 Kg
OPTION: 5VSB and Enable function with RPSG Models
