Mean Well: Enclosed Switching Power Supply (RQ-50 Series)
Mean Well: Enclosed Switching Power Supply (RQ-50 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: RQ-50




.

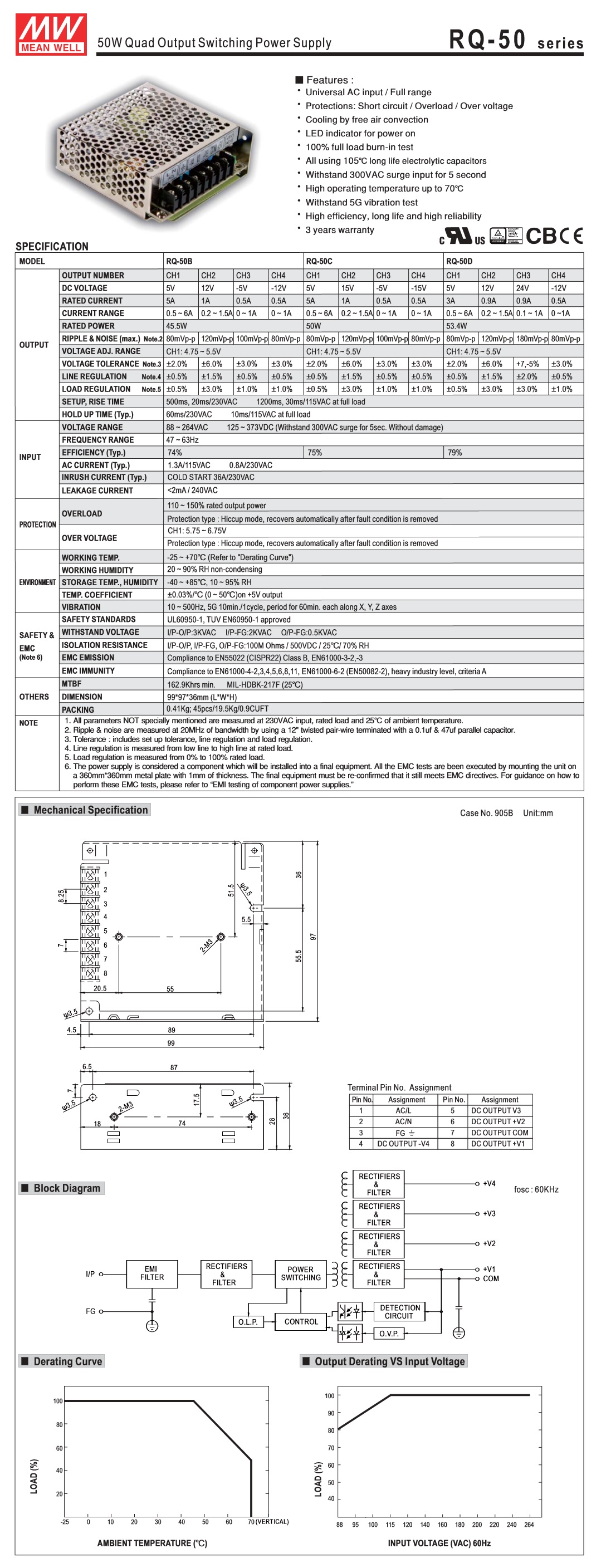

Description Specifications and Drawings


Mean Well: Enclosed Switching Power Supply (RQ-50 Series)

Features:

  • No load power consumption <0.5W

  • Uses 105ºC long life electrolytic capacitors

  • Protections: Short circuit/ Overload/ Over voltage/ Over Temp.

  • Meets EMS EN50082-2/EN61000-6-2 heavy industry level (35~150W)

  • Withstands 300VAC surge input for 5 sec.

  • High operating temperature up to 70ºC

  • Withstands 5G vibration test

  • Miniature size, high power density

  • High efficiency, long life and high reliability

  • LED indicator for power on

  • 100% full load burn-in test

  • Suitable for critical applications

  • 3 year warranty

  • Operating Temperature: -25~+70°C

  • Dimensions (Inches): 3.89” x 3.81” x 1.41”

  • Weight (Kg): 0.41

Model No.: RQ-50B (CH1), RQ-50B (CH2), RQ-50B (CH3), RQ-50B (CH4), RQ-50C (CH1), RQ-50C (CH2), RQ-50C (CH3), RQ-50C (CH4), RQ-50D (CH1), RQ-50D (CH2), RQ-50D (CH3), RQ-50D (CH4)
