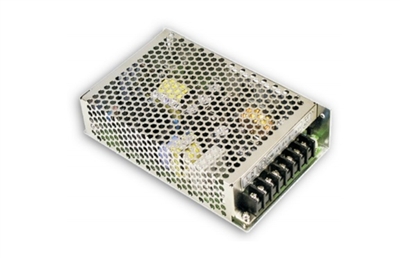

Mean Well: Enclosed Switching Power Supply (RQ-85 Series)
Mean Well: Enclosed Switching Power Supply (RQ-85 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: RQ-85




.

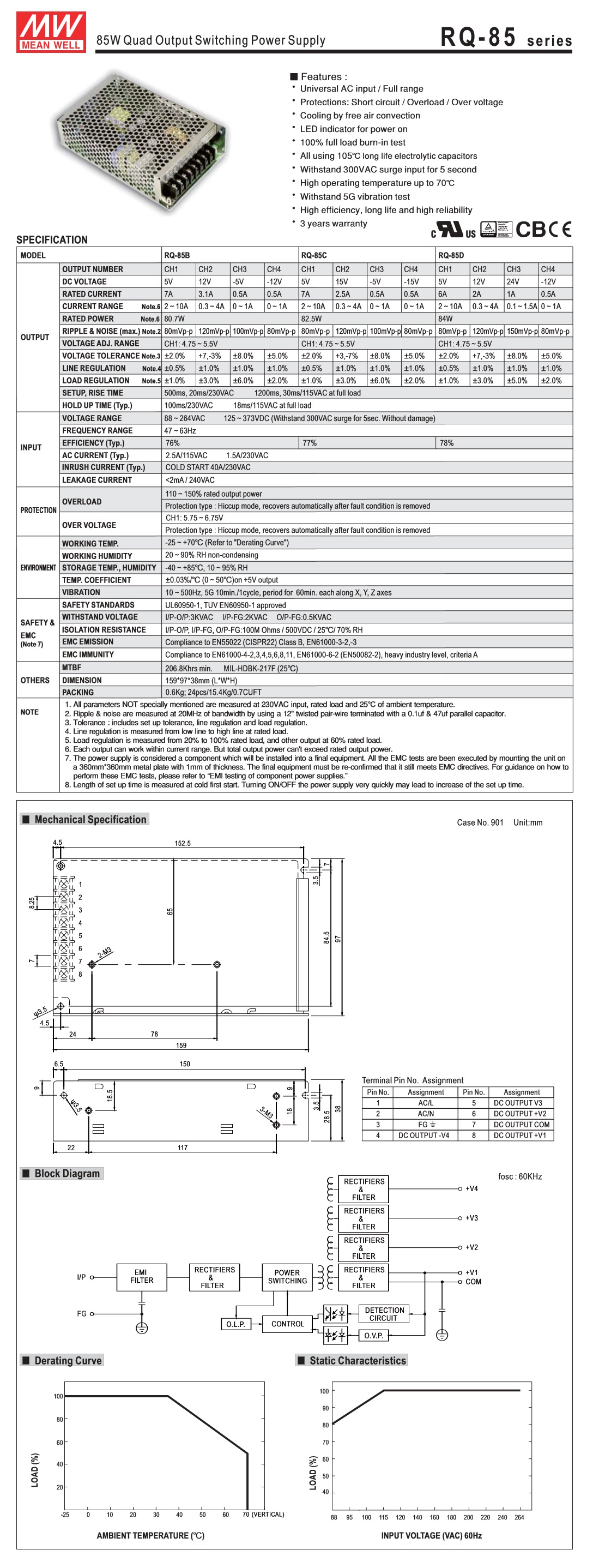

Description Specifications and Drawings


Mean Well: Enclosed Switching Power Supply (RQ-85 Series)

Features:

  • No load power consumption <0.5W

  • Uses 105ºC long life electrolytic capacitors

  • Protections: Short circuit/ Overload/ Over voltage/ Over Temp.

  • Meets EMS EN50082-2/EN61000-6-2 heavy industry level (35~150W)

  • Withstands 300VAC surge input for 5 sec.

  • High operating temperature up to 70ºC

  • Withstands 5G vibration test

  • Miniature size, high power density

  • High efficiency, long life and high reliability

  • LED indicator for power on

  • 100% full load burn-in test

  • Suitable for critical applications

  • 3 year warranty

  • Operating Temperature: -25~+70°C

  • Dimensions (Inches): 6.25” x 3.81” x 1.49”

  • Weight (Kg): 0.6

Model No.: RQ-85B (CH1), RQ-85B (CH2), RQ-85B (CH3), RQ-85B (CH4), RQ-85C (CH1), RQ-85C (CH2), RQ-85C (CH3), RQ-85C (CH4), RQ-85D (CH1), RQ-85D (CH2), RQ-85D (CH3), RQ-85D (CH4)
