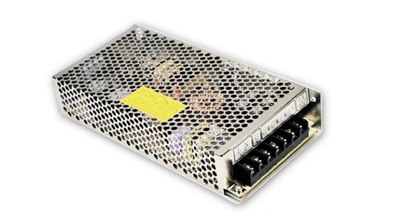

Mean Well: Enclosed Switching Power Supply (RS-150 Series)
Mean Well: Enclosed Switching Power Supply (RS-150 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: RS-150


Model No.:

.

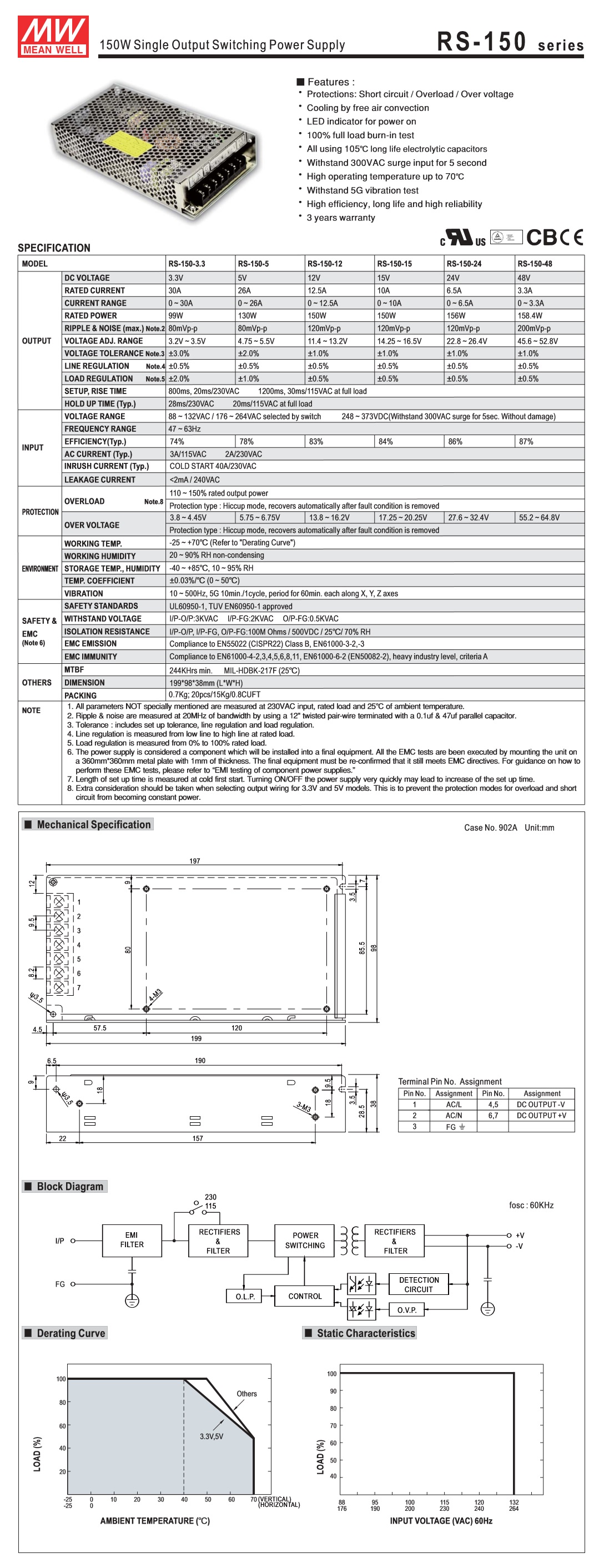

Description Specifications and Drawings


Mean Well: Enclosed Switching Power Supply (RS-150 Series)

Features:

  • No load power consumption <0.5W

  • All using 105ºC long life electrolytic capacitors

  • Protections: Short circuit/ Overload/ Over voltage/ Over Temp.

  • Meet EMS EN50082-2/EN61000-6-2 heavy industry level (35~150W)

  • Withstand 300VAC surge input for 5 sec.

  • Withstand 5G vibration test

  • Miniature size, high power density

  • High efficiency, long life and high reliability

  • LED indicator for power on

  • 100% full load burn-in test

  • Suitable for critical applications

  • 3 year warranty

  • High operating temperature: -25~+70°C

  • Dimensions (Inches): 7.83” x 3.86” x 1.50”

  • Weight (Kg): 0.7

Model No.: RS-150-3.3, RS-150-5, RS-150-12, RS-150-15, RS-150-24, RS-150-48
