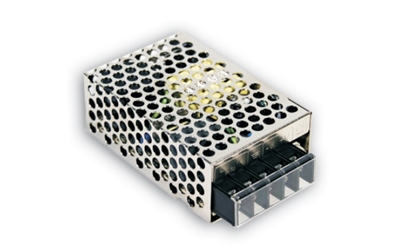

Mean Well: Enclosed Switching Power Supply (RS-25 Series)
Mean Well: Enclosed Switching Power Supply (RS-25 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: RS-25


Model No.:

.

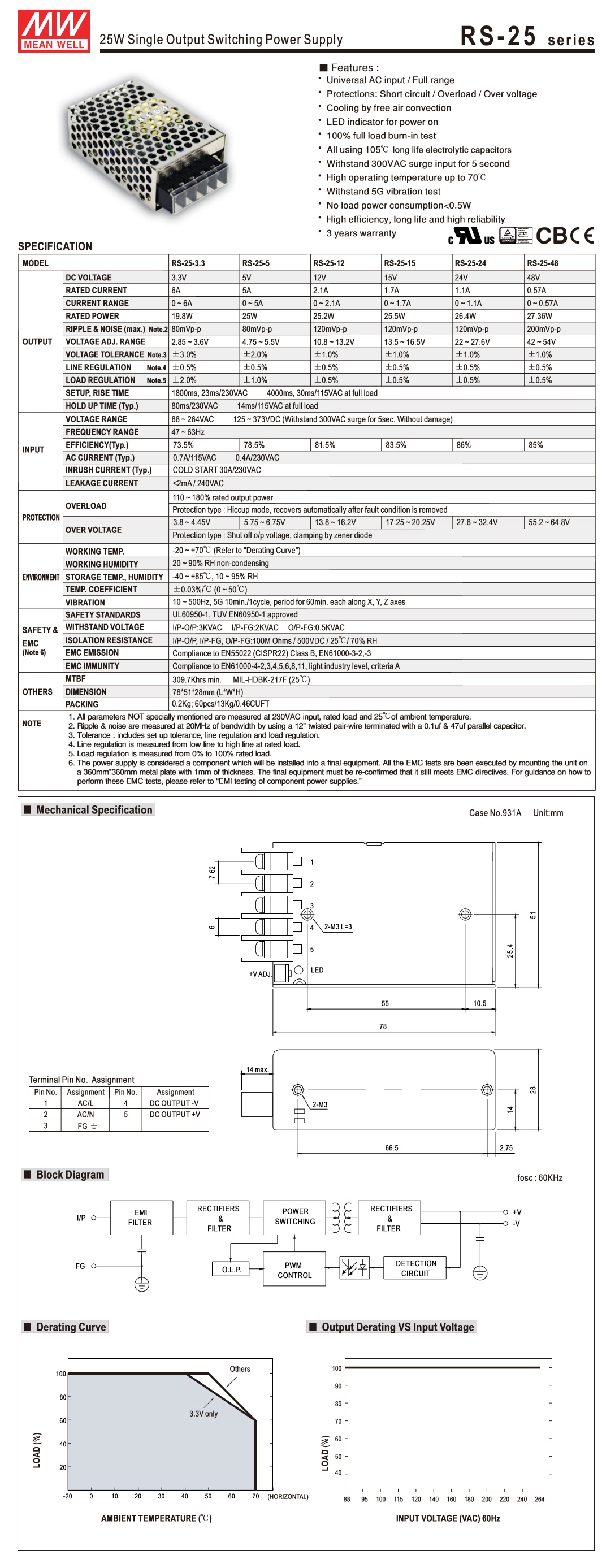

Description Specifications and Drawings


Mean Well: Enclosed Switching Power Supply (RS-25 Series)

Features:

  • No load power consumption <0.5W

  • Uses 105ºC long life electrolytic capacitors

  • Protections: Short circuit/ Overload/ Over voltage/ Over Temp.

  • Meets EMS EN50082-2/EN61000-6-2 heavy industry level (35~150W)

  • Withstands 300VAC surge input for 5 sec.

  • High operating temperature up to 70ºC

  • Withstands 5G vibration test

  • Miniature size, high power density

  • High efficiency, long life and high reliability

  • LED indicator for power on

  • 100% full load burn-in test

  • Suitable for critical applications

  • 3 year warranty

  • Operating Temperature: -20~+70°C

  • Dimensions (Inches): 3.07” x 2.00” x 1.10”

  • Weight (Kg): 0.2


Model No.: RS-25-3.3, RS-25-5, RS-25-12, RS-25-15, RS-25-24, RS-25-48
