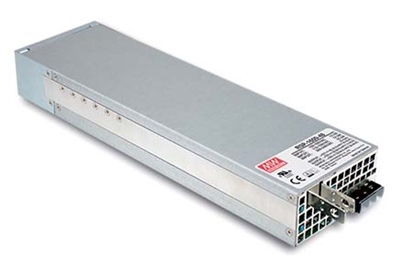

Mean Well: Enclosed Switching Power Supply (RSP-1600 Series)
Mean Well: Enclosed Switching Power Supply (RSP-1600 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: RSP-1600


Model No.:


.
Description Specifications and Drawings


Mean Well: Enclosed Switching Power Supply (RSP-1600 Series)

Features:

  • Low profile power supply with active PFC function: 1U: 75W ~ 2000W, 2U: 2400W / 3000W

  • Output voltage programmable: 750W/1000W/1500W/1600W/2000W/2400W/3000W

  • Constant current level programmable: 750W/1600W

  • Built-in parallel (active current sharing) function: 1000W ~ 3000W

  • Universal AC input/full range (Withstand 300VAC surge input for 5 seconds)

  • Built-in active PFC function

  • High efficiency up to 93%

  • Forced air cooling by built-in DC fan

  • Output voltage and constant current level programmable

  • Active current sharing up to 9600W (5+1)

  • Built-in remote "on-off" control/remote sense/auxiliary power/DC OK signal/OTP alarm signal

  • Protections: Short Circuit/Overload/ Over Voltage/ Over Temperature

  • Optional PMBus protocol

  • Watts: 75W~3000W

  • 5 Year warranty


Model No.:
RSP-1600-12, RSP-1600-24, RSP-1600-27, RSP-1600-36, RSP-1600-48
