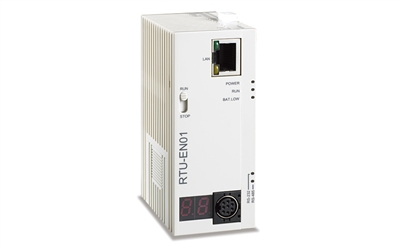

Delta: Industrial Fieldbus Solution (RTU-EN01 Series) Delta Electronics provides complete solutions for drive, motion and control type of industrial automation products. Apart from general Modus serial communication, we further offer advanced CANopen, DeviceNet, Ethernet, EtherNet/IP and PROFIBUS fieldbus solutions for complex and harsh industrial sites and demands for high speed as well as stable and highly cost-effective choices of applications. Ethernet Communication Devices (RTU-EN01 Series) Combines the most popular Ethernet and industrial products Crosses the boundary of traditional types of transmissions Offers 10/100M bps high-speed transmission and highly efficient monitoring
A Modbus TCP slave Connectable to 8 DVP-S series analog I/O modules Connectable to 256 points of digital I/O modules The RS-485 port is connectable to max. 32 Modbus slaves Smart PLC if-then function Smart Monitor Supports webpage setup & on-line monitoring Serial Virtual COM available
Transmission method: IEEE 802.3, IEEE 802.3u Transmission interface: RJ-45 MDI/MDIX, no jumper cable required Baud rate: 10/100M bps, auto-detection Network protocols: ICMP, IP, TCP, UDP, DHCP, NTP, Modbus TCP, HTTP Power supply voltage: 24 VDC (-15 to 20%) Power consumption: 2 W Insulation voltage: 500 V
Transmission method: RS-485 Connector: Removable Serial baud rate: 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200 bps Data type: Modbus ASCII/RTU
|
|
|
 |
|
 |
|
