Nanotec: SC2818L1504-A/B – STEPPER MOTOR – NEMA 11
Nanotec: SC2818L1504-A/B – STEPPER MOTOR – NEMA 11



Price: (Members Only)


Availability: Lead time is 11-16 weeks
Order #: SC2818L1504


Model No.:


Qty:
Description Specifications and Drawings


Nanotec Electronic GmbH & Co KG

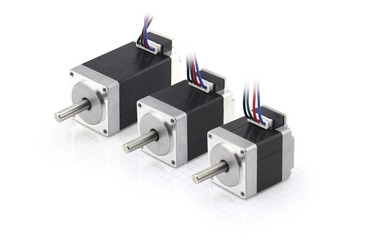

HYBRID STEPPER MOTOR – NEMA 11

Stepper motor with very high torque in relation to its size. 28 mm flange, 1.8° step angle and 9–18 Ncm holding torque. Length: 33–52.5 mm.

High-torque stepper motor with integrated connector in size NEMA 11 (28 mm). Compact motor with very high torque. Available in three lengths. A plug-in connection cable is included in the scope of delivery.

NEMA11

Current per Winding - 1.5 A

Rotor Inertia - 18 gcm²

Inductance per Winding - 1.9 mH

Length "A" - 2.07 in

Size - 1.1 in

Holding Torque - 25.49 oz-in

Resistance per Winding - 1.9 Ohm

Resolution - 1.8 °/step

Weight - 0.14 kg
