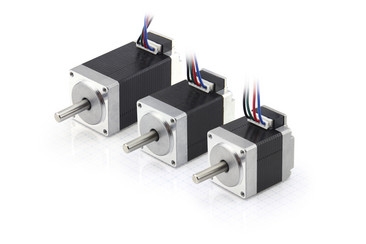

Stepper motor with very high torque in relation to its size. 28 mm flange, 1.8° step angle and 9–18 Ncm holding torque. Length: 33–52.5 mm.
High-torque stepper motor with integrated connector in size NEMA 11 (28 mm). Compact motor with very high torque. Available in three lengths. A plug-in connection cable is included in the scope of delivery.
• NEMA11
• Current per Winding - 0.6 A
• Rotor Inertia - 12 gcm²
• Inductance per Winding - 1 mH
• Length "A" - 1.3 in
• Size - 1.61 in
• Holding Torque - 19.12 oz-in
• Resistance per Winding - 7.3 Ohm
• Resolution - 1.8 °/step
• Weight - 0.14 kg
