HYBRID STEPPER MOTOR – NEMA 11

Stepper motor with very high torque in relation to its size. 28 mm flange, 1.8° step angle and 9–18 Ncm holding torque. Length: 33–52.5 mm.

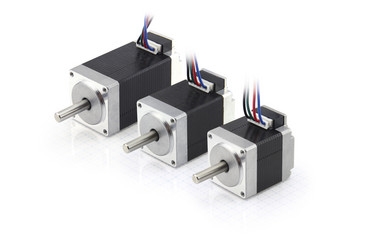

High-torque stepper motor with integrated connector in size NEMA 11 (28 mm). Compact motor with very high torque. Available in three lengths. A plug-in connection cable is included in the scope of delivery.

• NEMA11

• Current per Winding - 0.67 A

• Rotor Inertia - 9 gcm²

• Inductance per Winding - 5.76Mh

• Length "A" - 1.3 in

• Size - 1.1 in

• Holding Torque - 9 Ncm

• Resistance per Winding - 6.2 Ohm

• Resolution - 1.8 °/step

• Weight - 0.11 kg
