Nanotec: SC3518 – STEPPER MOTOR – NEMA 14
Nanotec: SC3518 – STEPPER MOTOR – NEMA 14



Price: (Members Only)


Availability: Usually Ships in 3 to 5 Days
Order #: SC3518


Model No.:


Qty:
Description Specifications and Drawings


Nanotec Electronic GmbH & Co KG

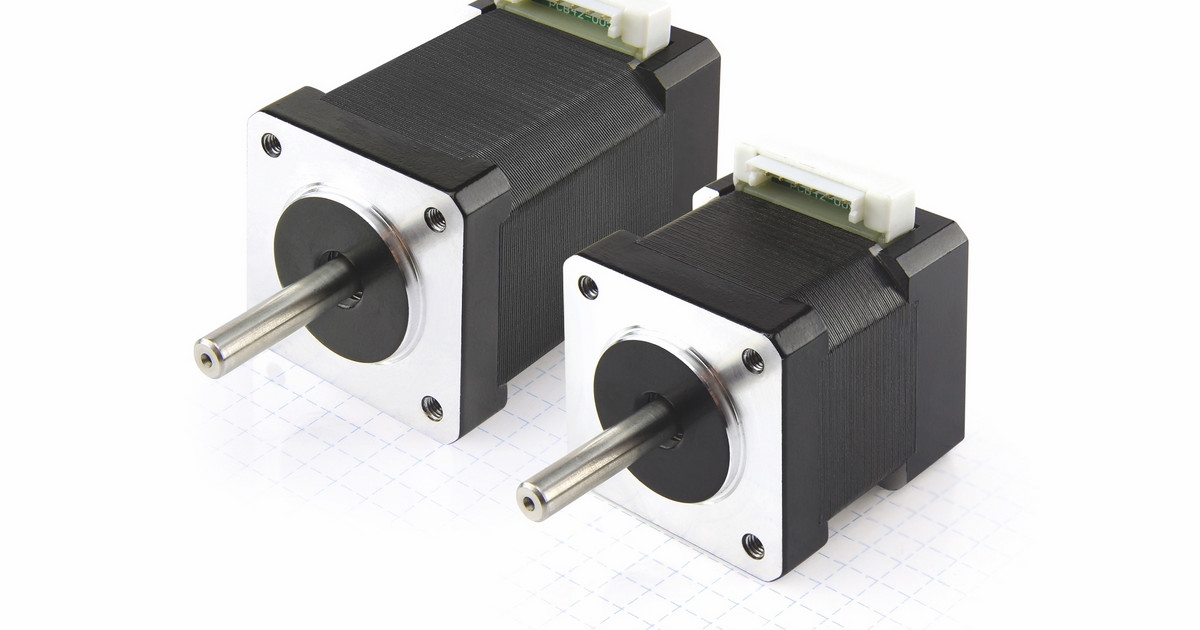

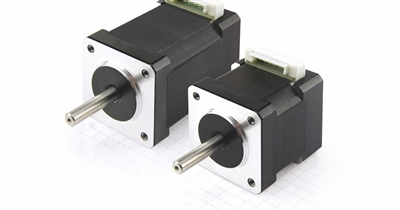

HYBRID STEPPER MOTOR – NEMA 14

High-torque stepper motor with integrated connector in size NEMA 14 (35 mm) with 1.8° step angle and a torque range between 0.18 and 0.32 Nm, depending on the motor length. The connector allows simple cable adaptation for customized applications. The two outer pins of the connector are connected to the motor housing. Together with the shielded cable, this creates a shield connection with excellent EMC performance. Available with a shaft end for open loop or sensorless control or with integrated optical encoder (NOE1) with up to 2000 increments/revolution.

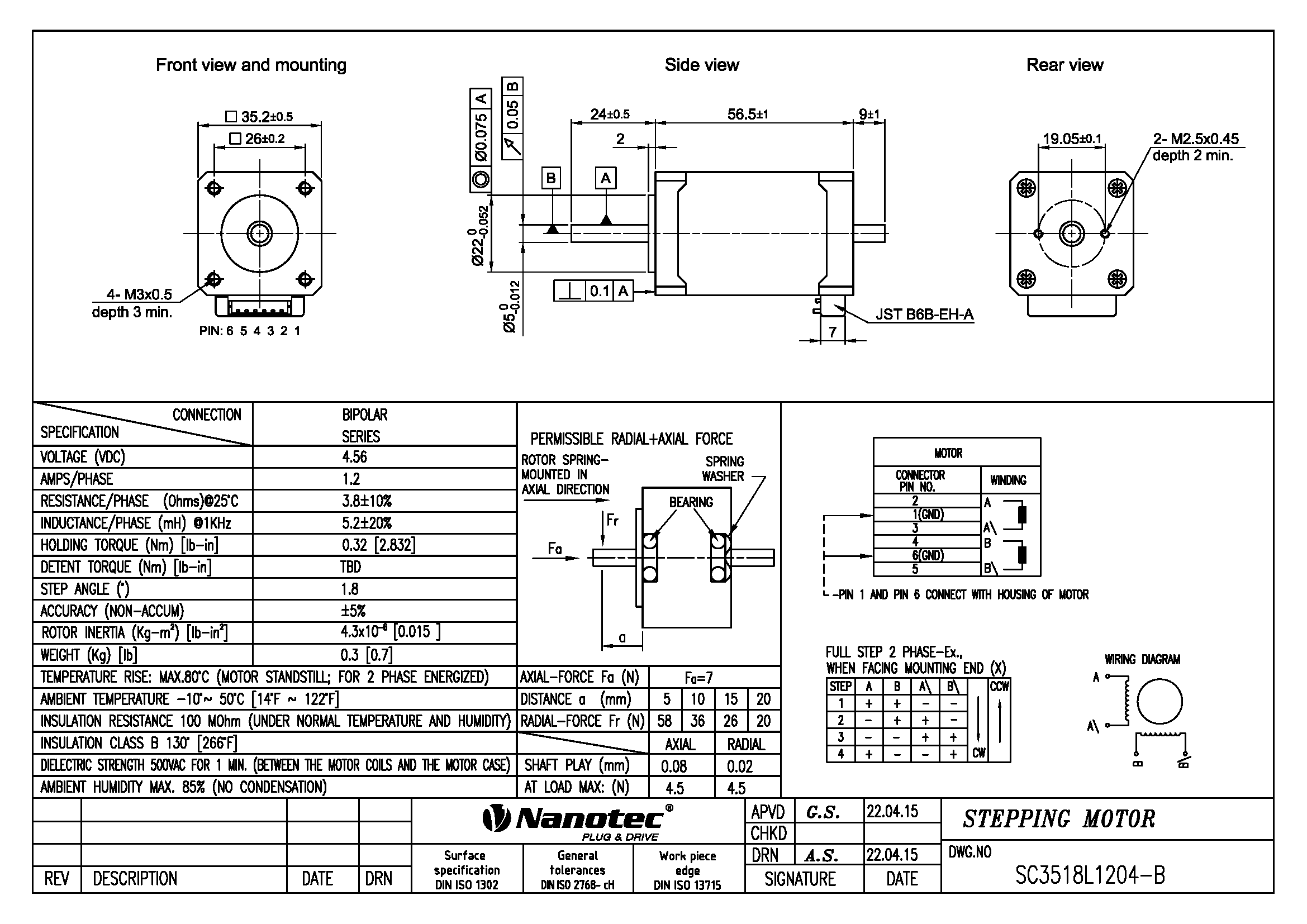

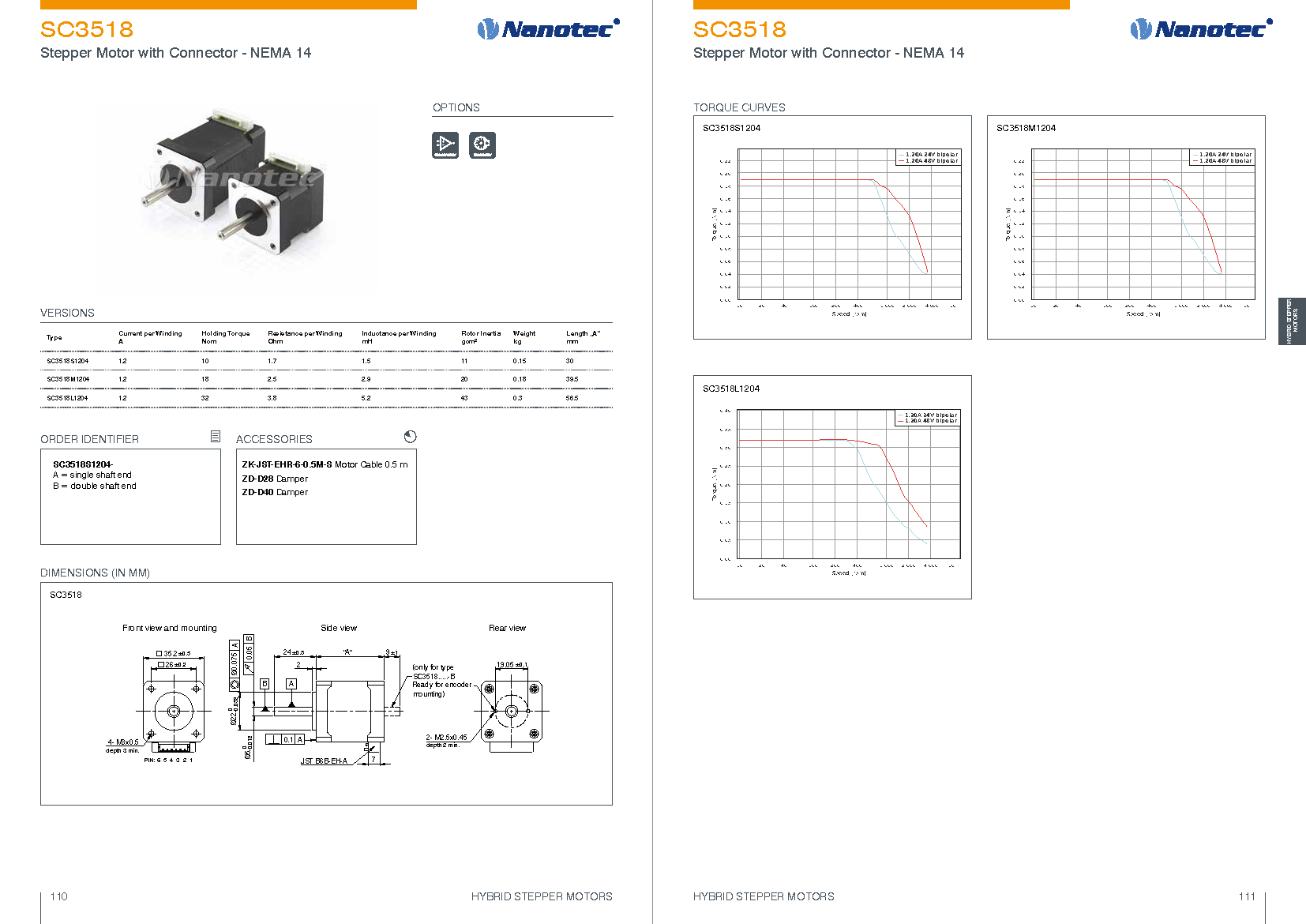

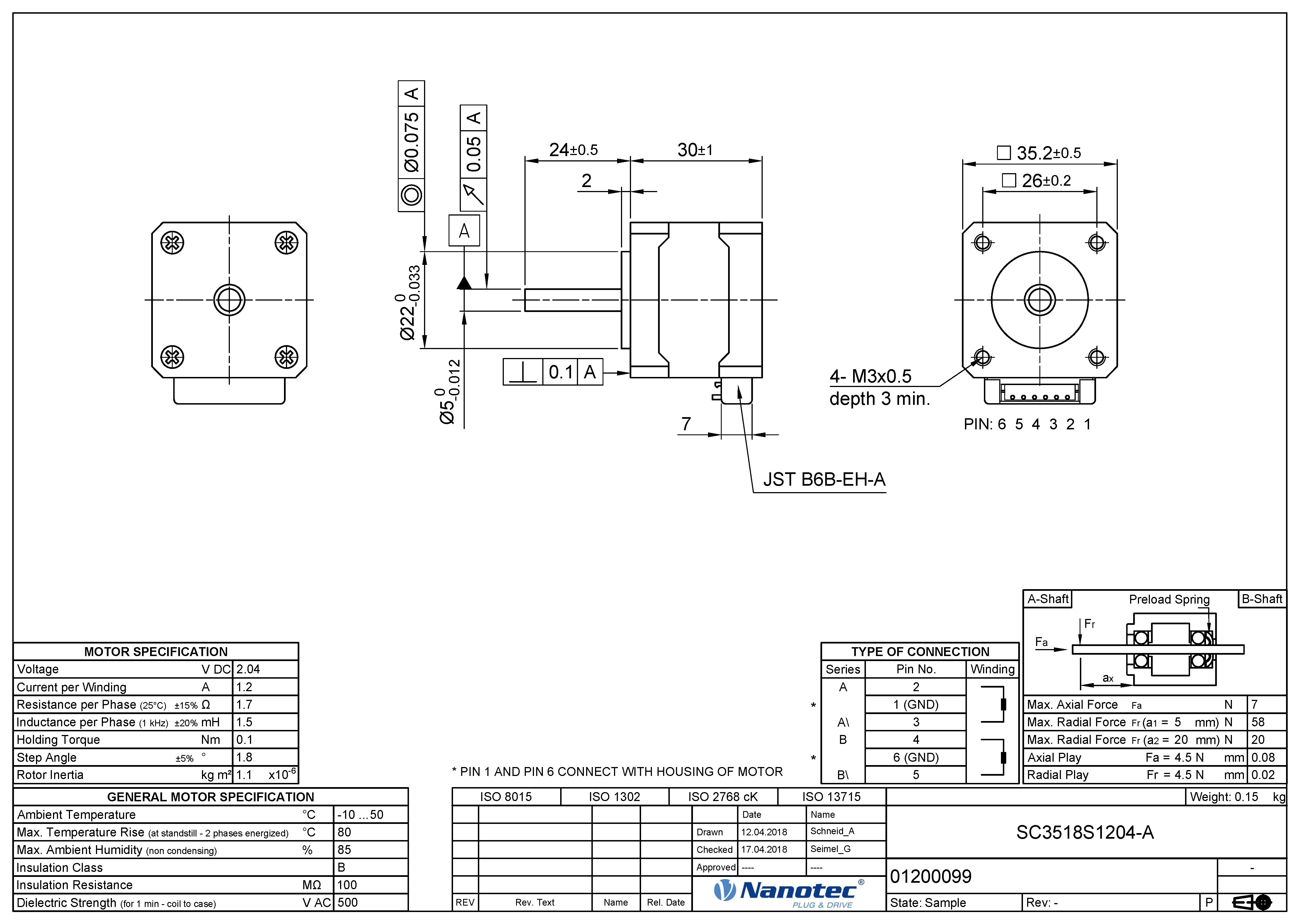

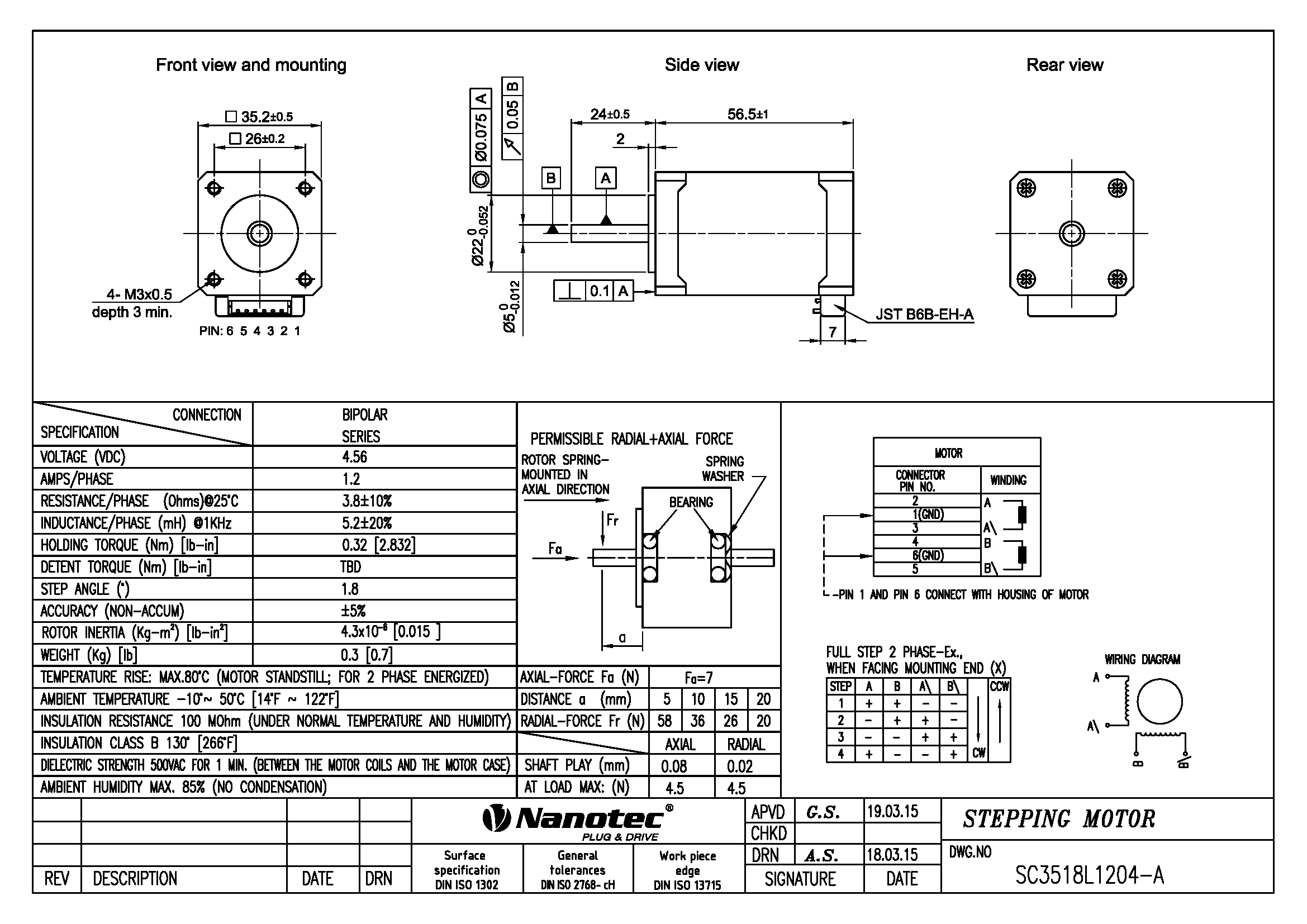

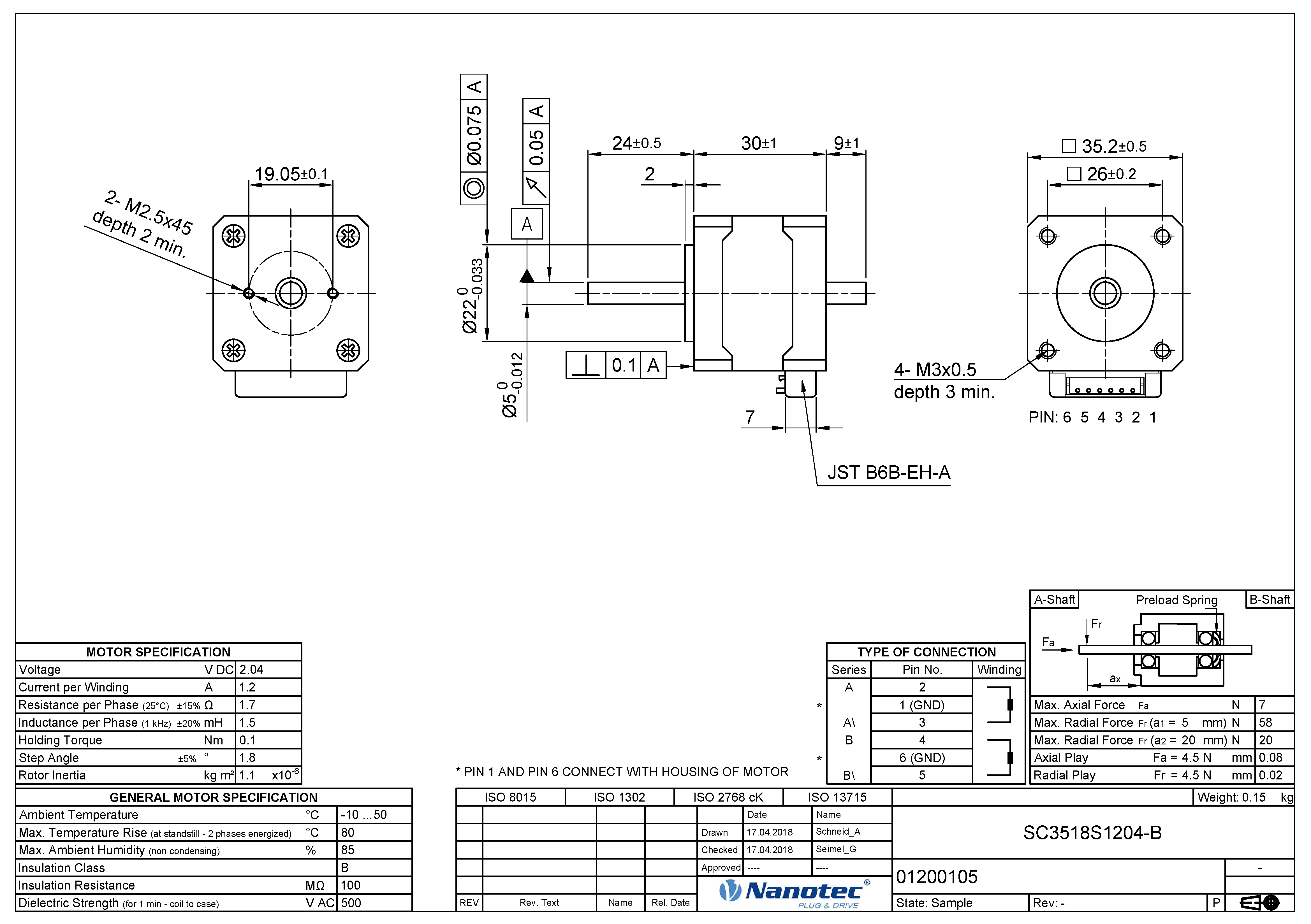

SC3518S1204-A, SC3518S1204-B, SC3518M1204-A, SC3518M1204-B, SC3518L1204-A, SC3518L1204-B

  • Size1.38 in
  • NEMA14
  • Holding Torque14.16 oz-in - 45.32 oz-in
  • Current per Winding1.2 A
  • Length "A"1.18 in - 2.22 in
