Nanotec: SC6018 – STEPPER MOTOR – NEMA 24
Nanotec: SC6018 – STEPPER MOTOR – NEMA 24



Price: (Members Only)


Availability: Usually Ships in 3 to 5 Days
Order #: SC6018


Model No.:

Qty:

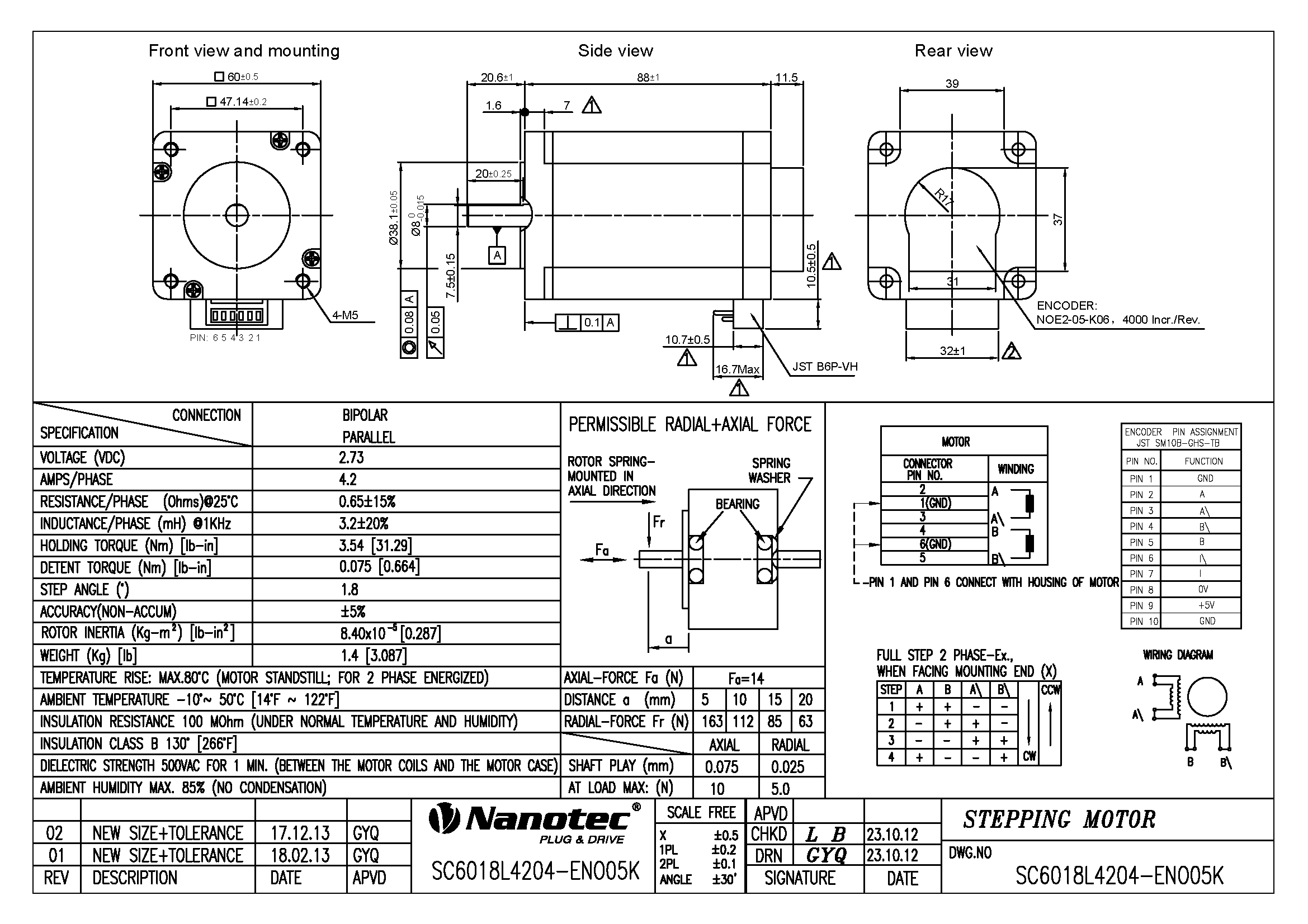

Description Ordering Information Specifications and Drawings


Nanotec Electronic GmbH & Co KG

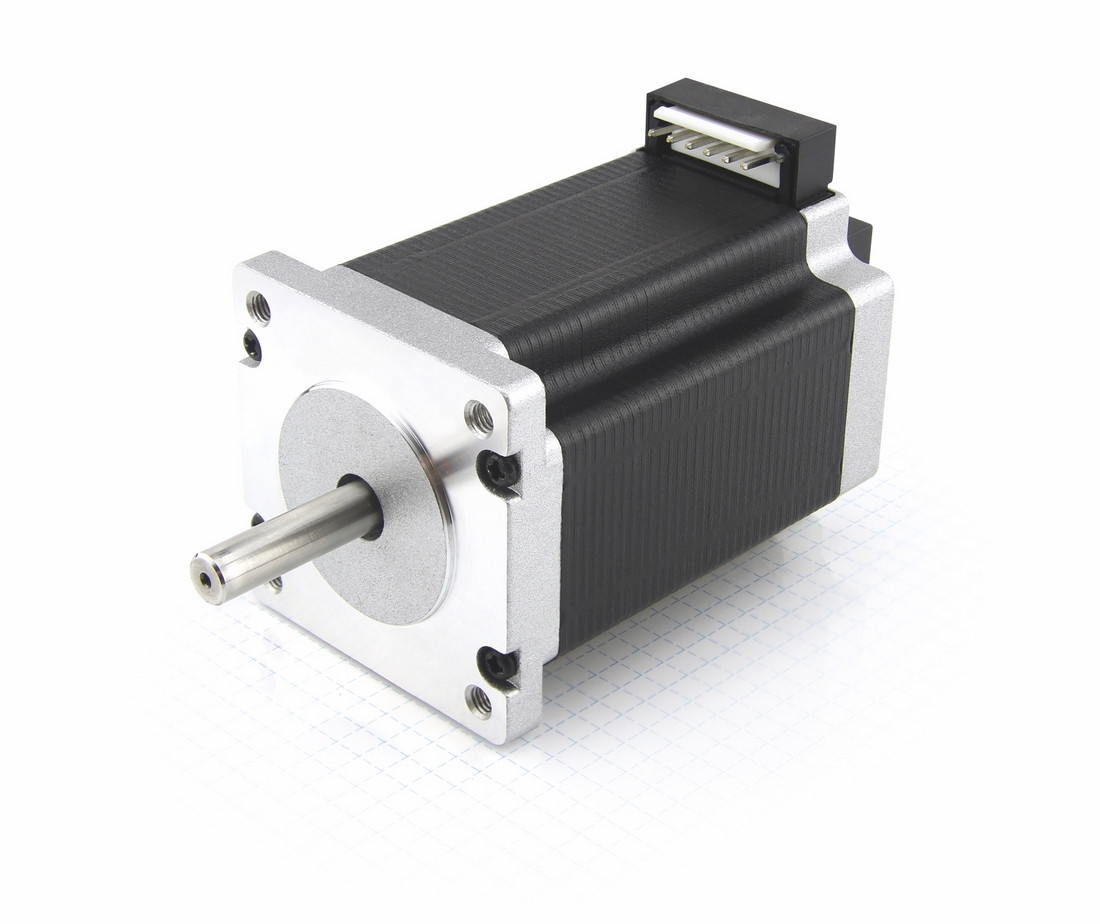

HYBRID STEPPER MOTOR – NEMA 24

Stepper motor with flattened shaft (D shaft) and integrated encoder. 60 mm flange, 1.8° step angle and 354 Ncm holding torque. Length: 88 mm.

SC6018L4204-ENO05K, SC6018L4204-ENO24K

• NEMA 24

• Current per Winding - 4.2 A

• Length "A" - 3.46 in

• Size - 2.36 in

• Resolution - 1.8 °/step

• Weight - 1.4 kg
