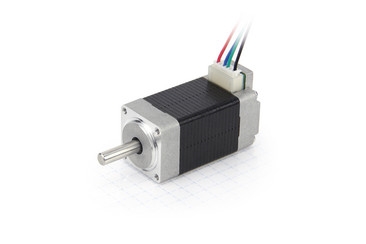

Nanotec: SCA2018S0604-A/B – STEPPER MOTOR – NEMA 8
Nanotec: SCA2018S0604-A/B – STEPPER MOTOR – NEMA 8



Price: (Members Only)


Availability: Usually Ships in 1 to 2 Weeks
Order #: SCA2018S


Model No.:


Qty:

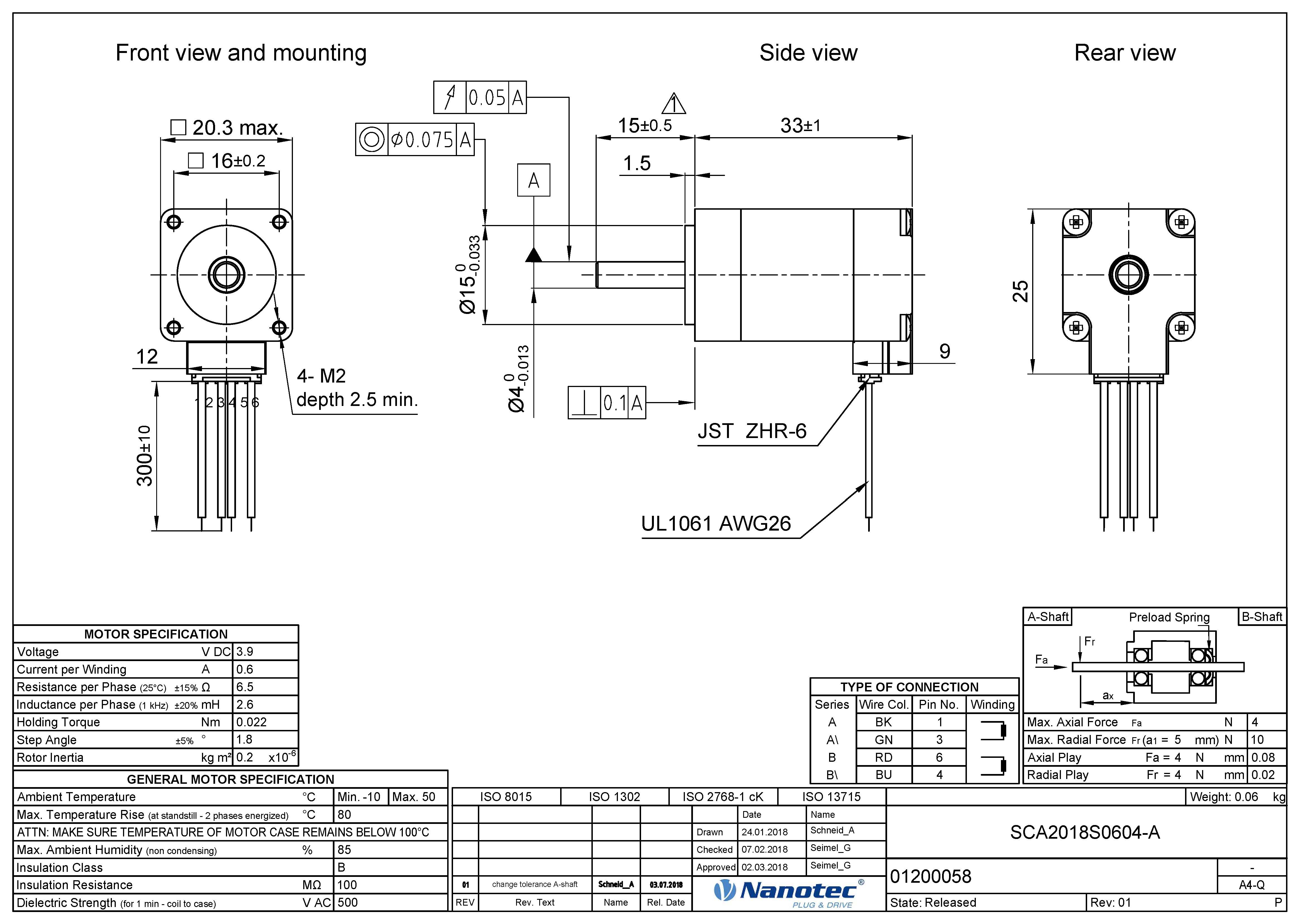

Description Specifications and Drawings


Nanotec Electronic GmbH & Co KG

HYBRID STEPPER MOTOR – NEMA 8

Very small high-torque stepper motor in size NEMA 8 (20 mm). The integrated connector makes it easy to connect different types of cables or replace an existing motor. The SCA2018 boasts in excess of 30% more torque than conventional motors of the same size.

Available in two lengths, each with one or two motor shafts. To increase the torque and the resolution, this motor can be combined with a gearbox of the GPLL22 series or the GPLE22 series. The version with B shaft can also be ordered with an NOE1 encoder (optional).

NEMA8

Current per Winding - 0.6 A

Rotor Inertia - 2 gcm²

Inductance per Winding - 2.6 Mh

Length "A" - 1.3 in

Size - 0.787 in

Holding Torque - 2.2 Ncm

Resistance per Winding - 6.5 Ohm

Resolution - 1.8 °/step

Weight - 0.06 kg
