![Nanotec Electronic GmbH & Co KG](https://us.nanotec.com/typo3conf/ext/nanotec/Resources/Public/Images/logo.svg)
HYBRID STEPPER MOTOR – NEMA 23
Stepper motor with 15–30 % more torque than its predecessor ST5918. 56 mm flange, 1.8° step angle and 50–230 Ncm holding torque. Length: 40.5–76.5 mm.

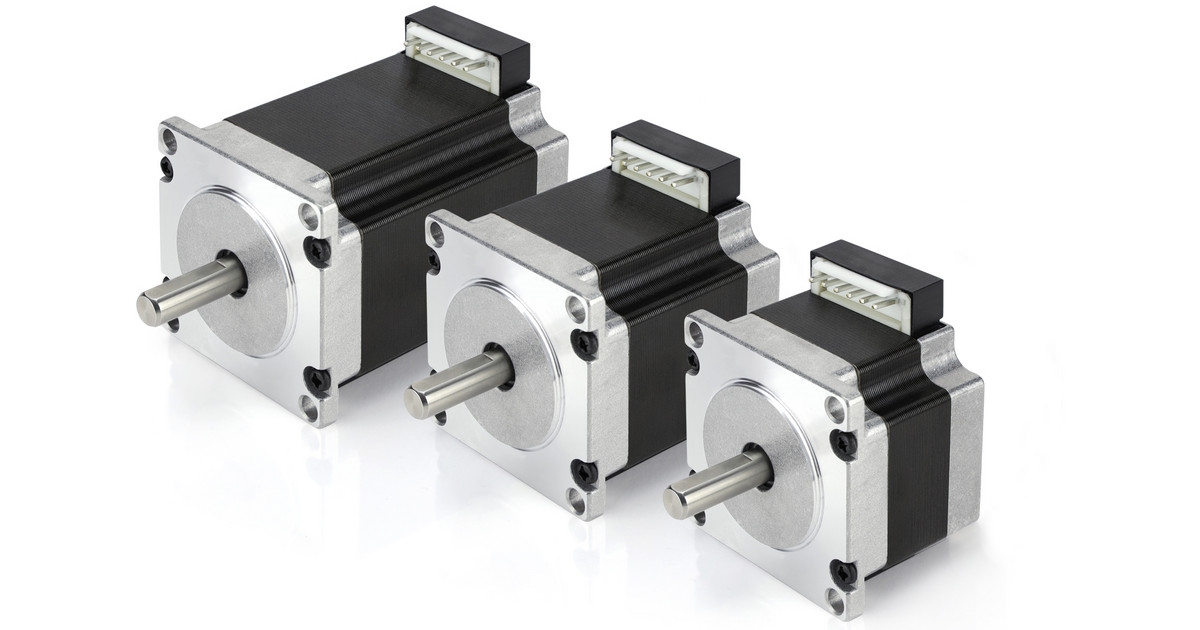

High-torque stepper motor with integrated connector in size NEMA 23 (56 mm). The SCA5618 is available in three lengths and with two different windings. The A shaft comes in two versions: with D-Cut and 24mm length (A) and without D-Cut with 20.6mm length (A2). - Holding torque up to 2.3 Nm
- 1.8° step angle
- Integrated connector
-
Size2.2 in
-
NEMA23
-
Holding Torque84.97 oz-in - 325.71 oz-in
-
Current per Winding2.8 A - 4.2 A
-
Length "A"1.59 in - 3.01 in

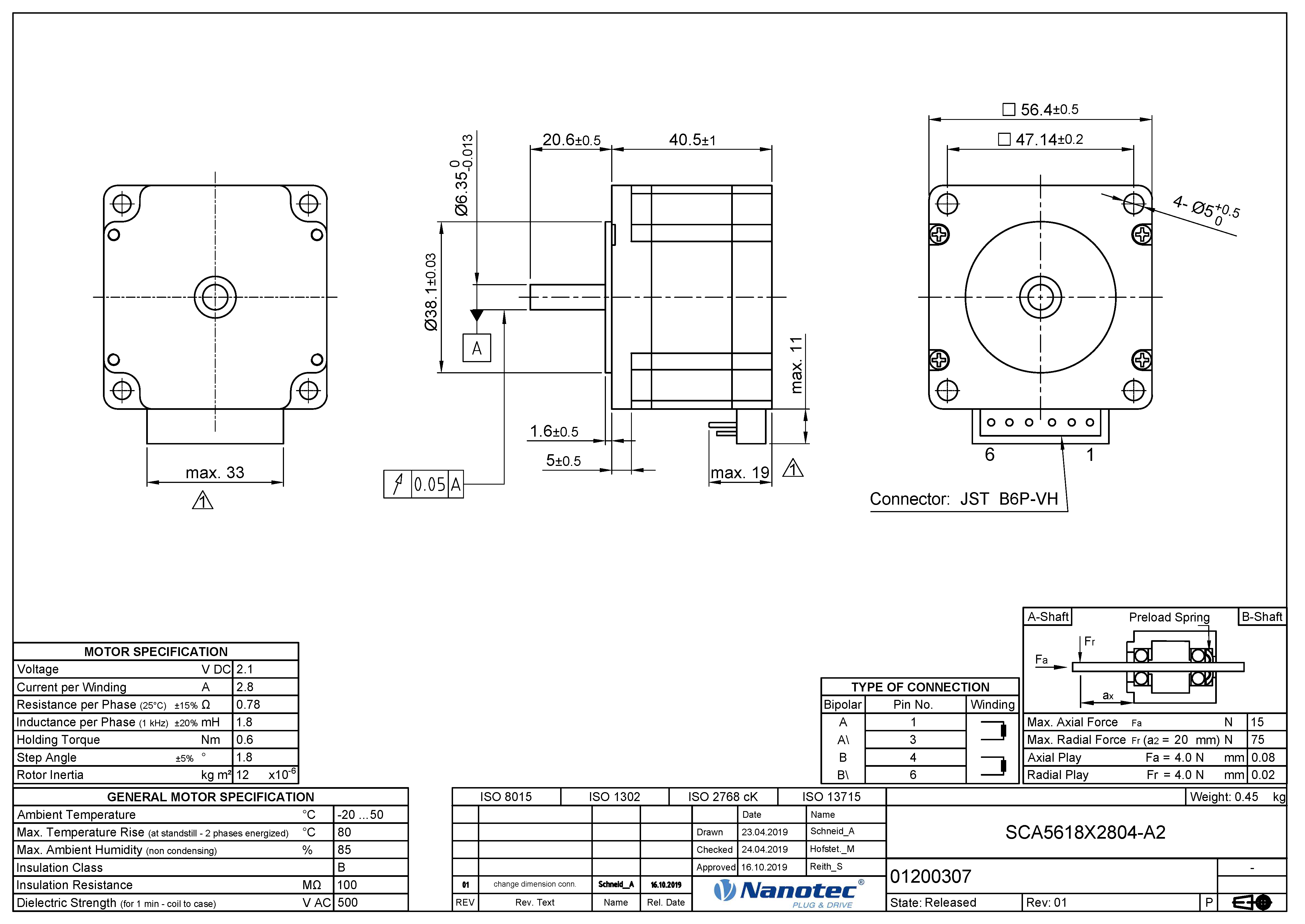

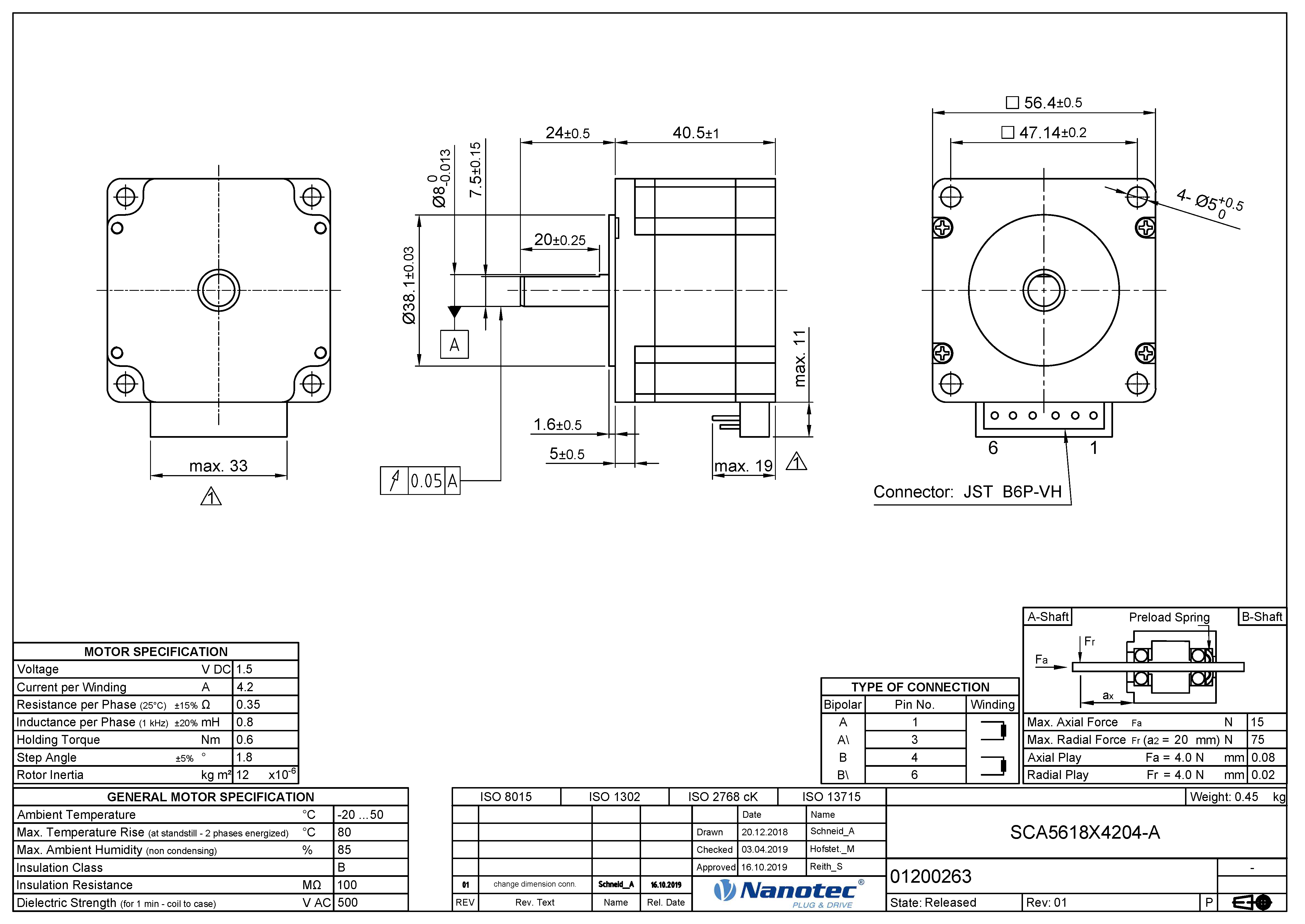

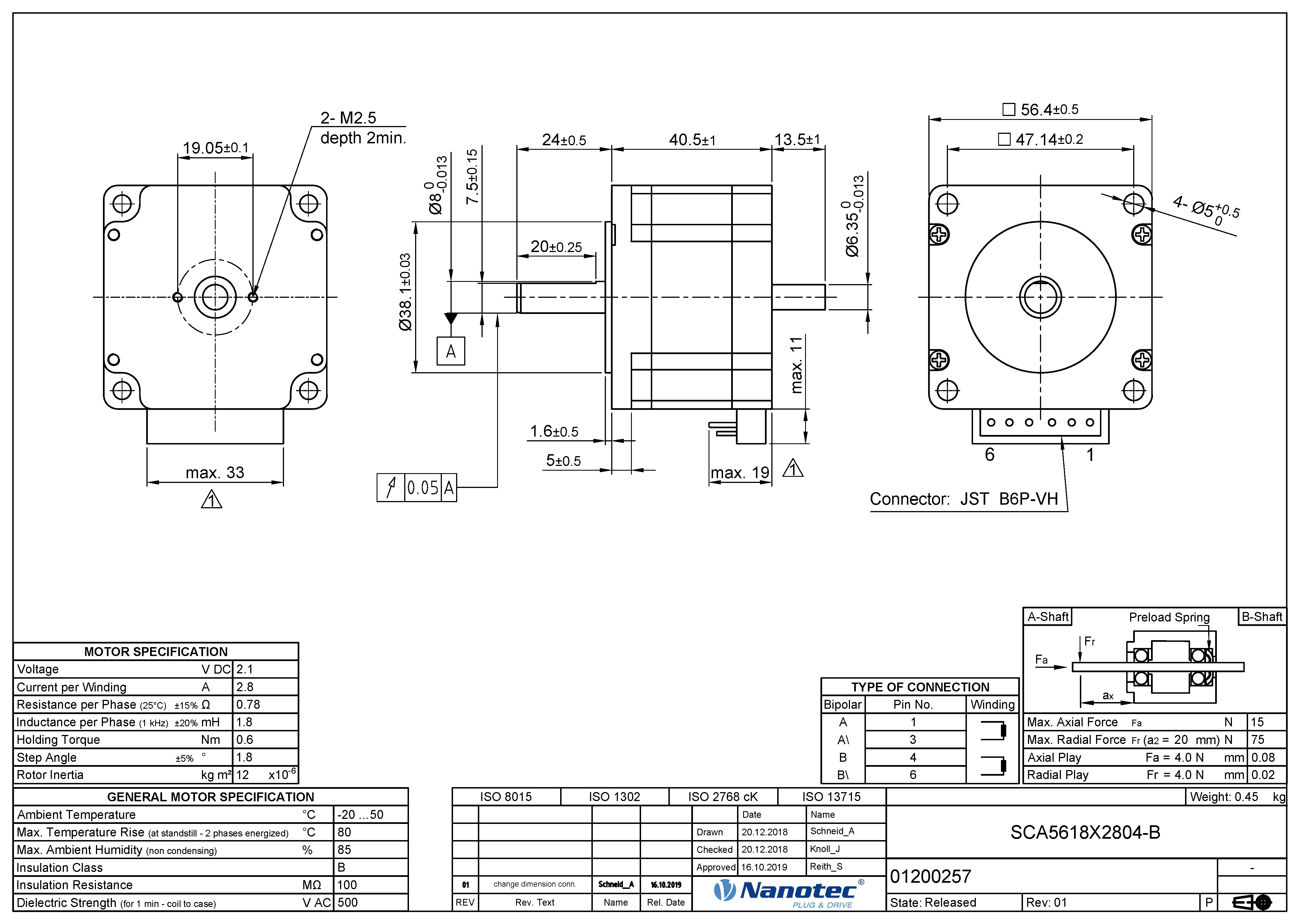

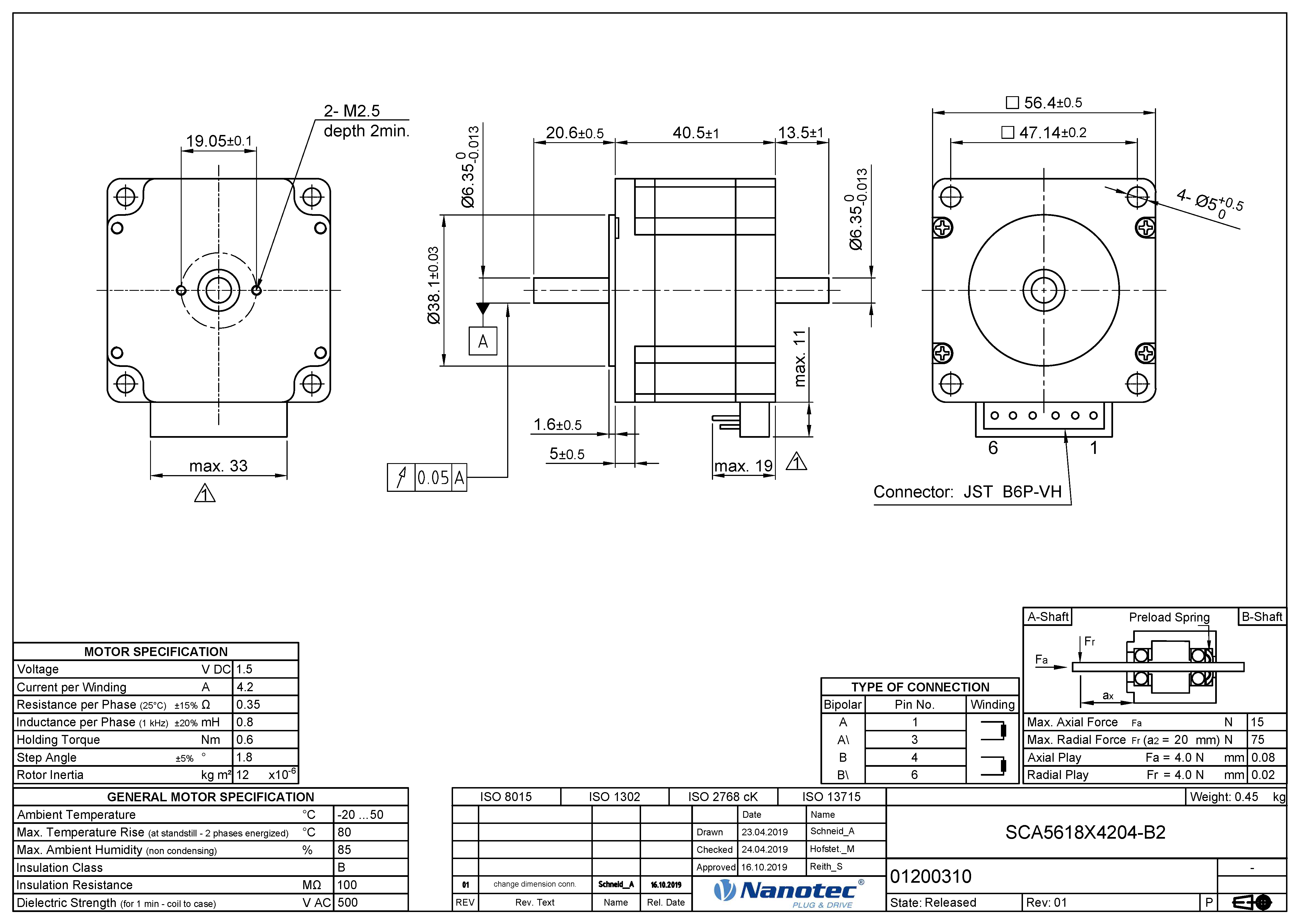

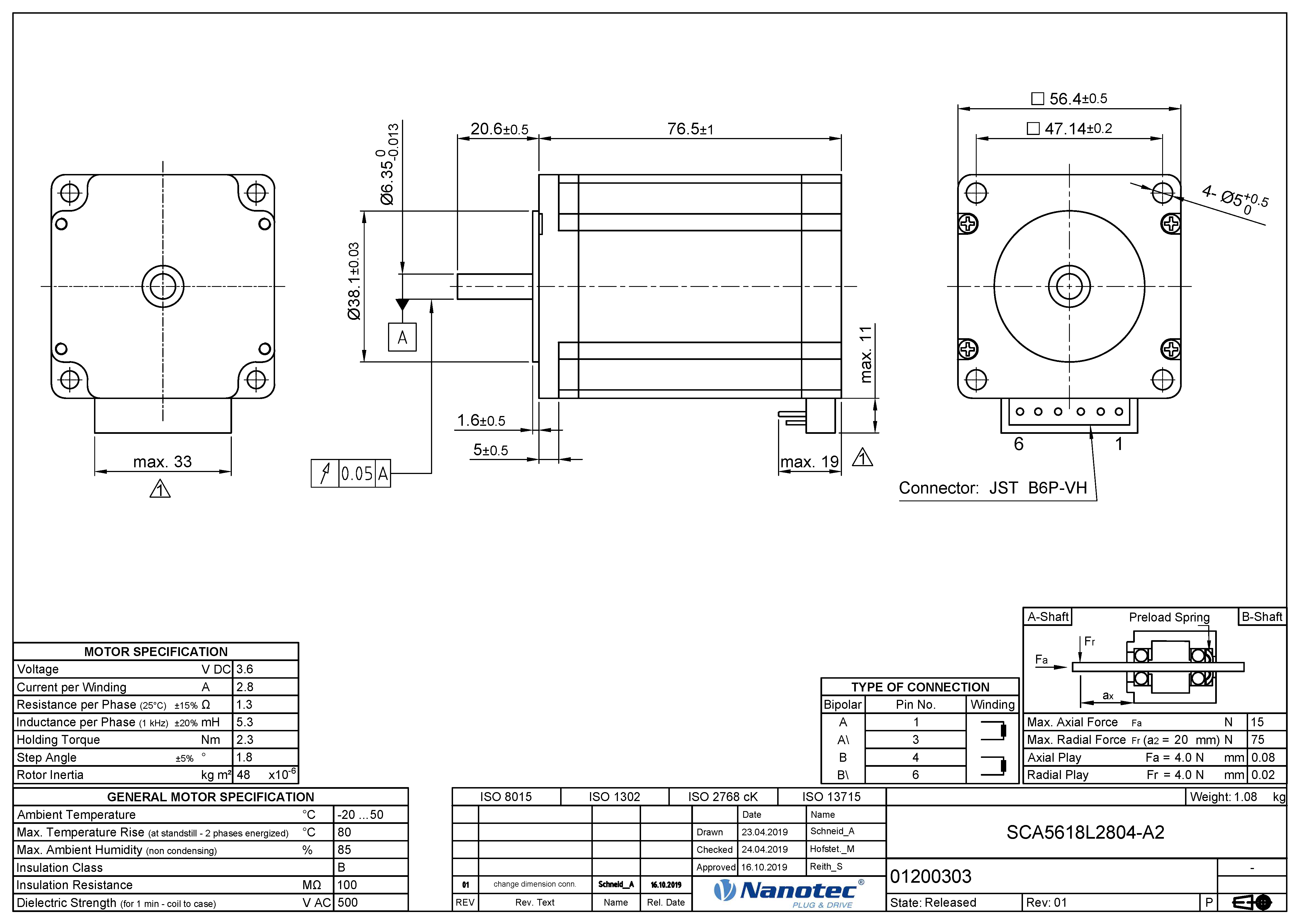

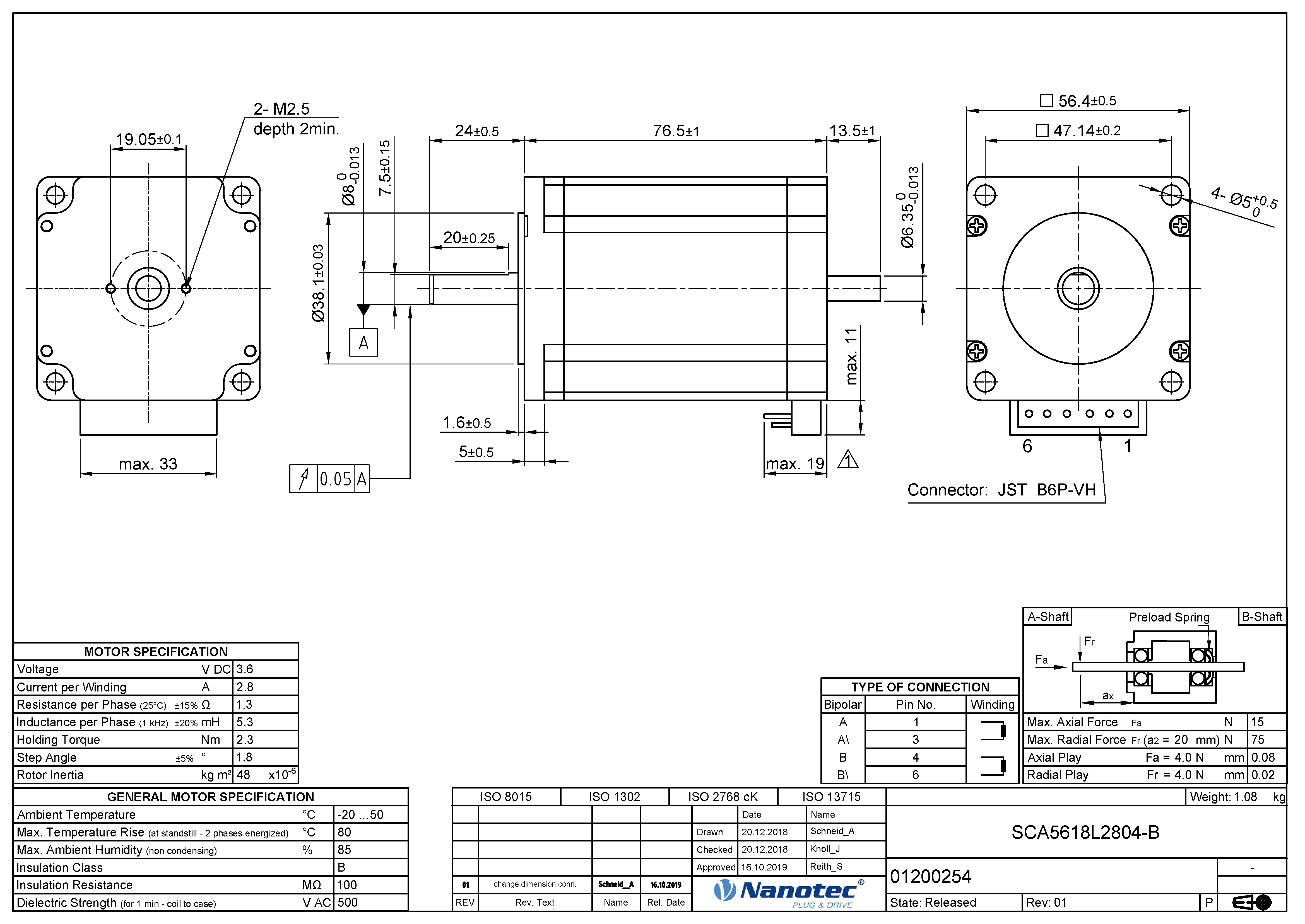

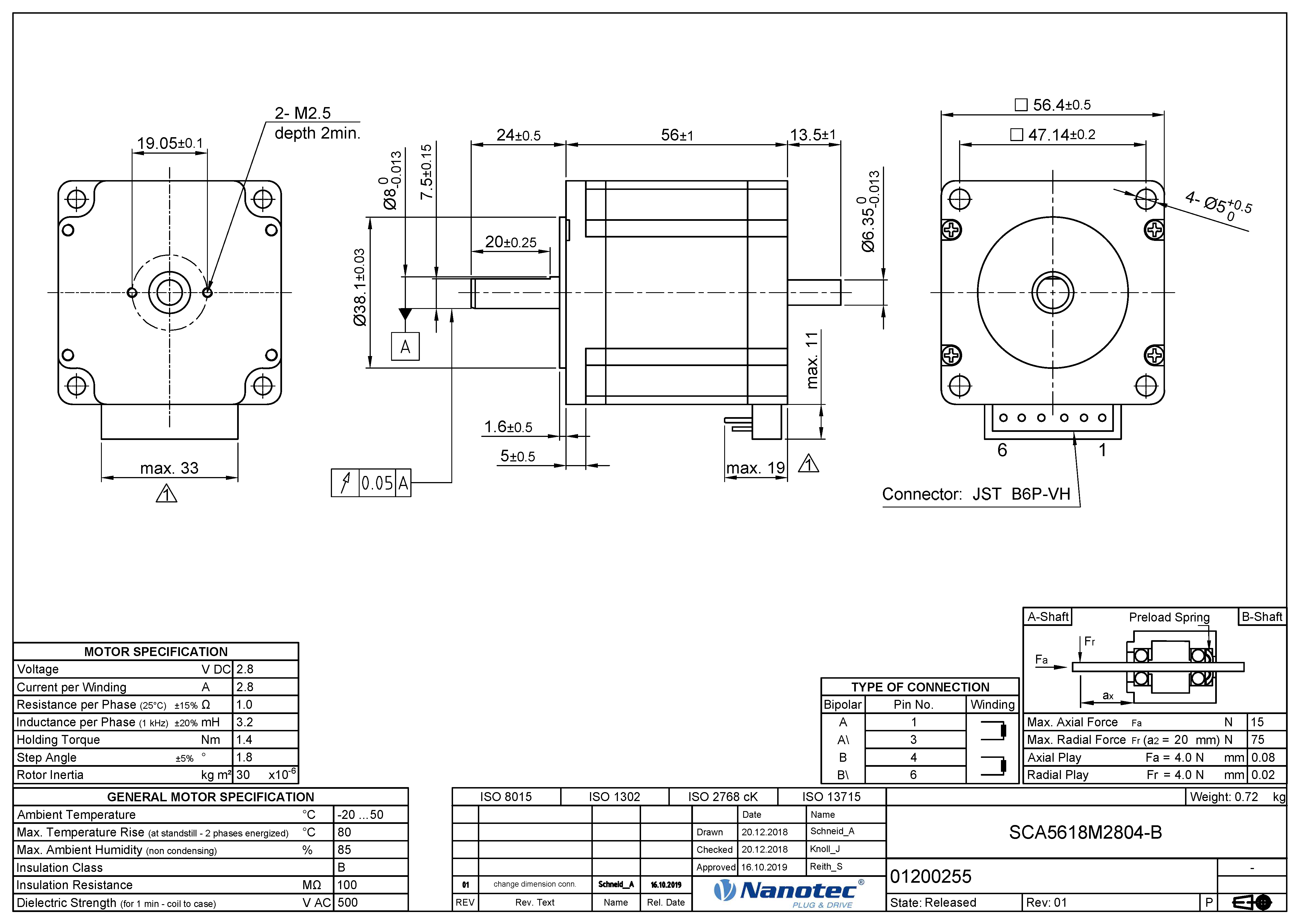

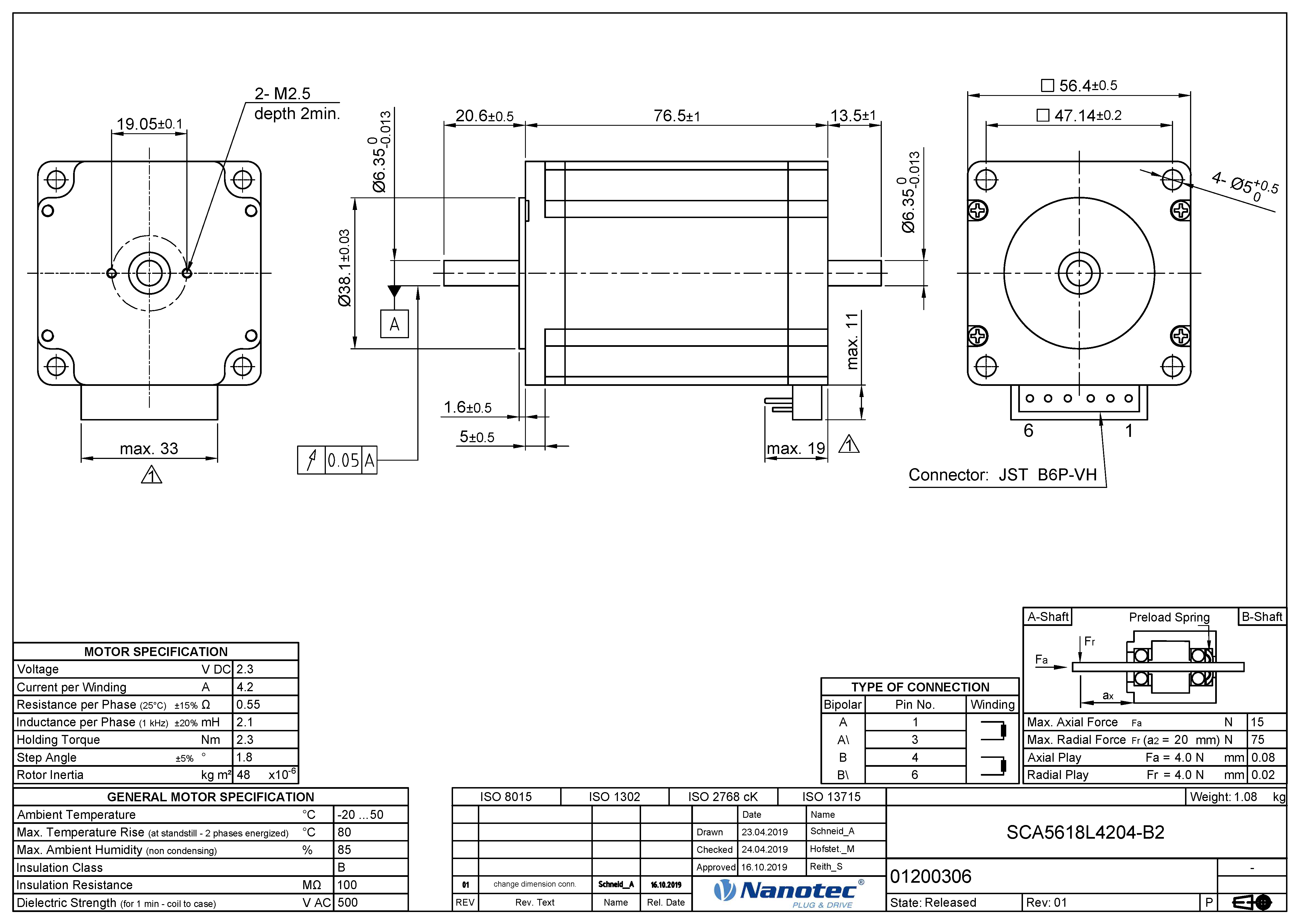

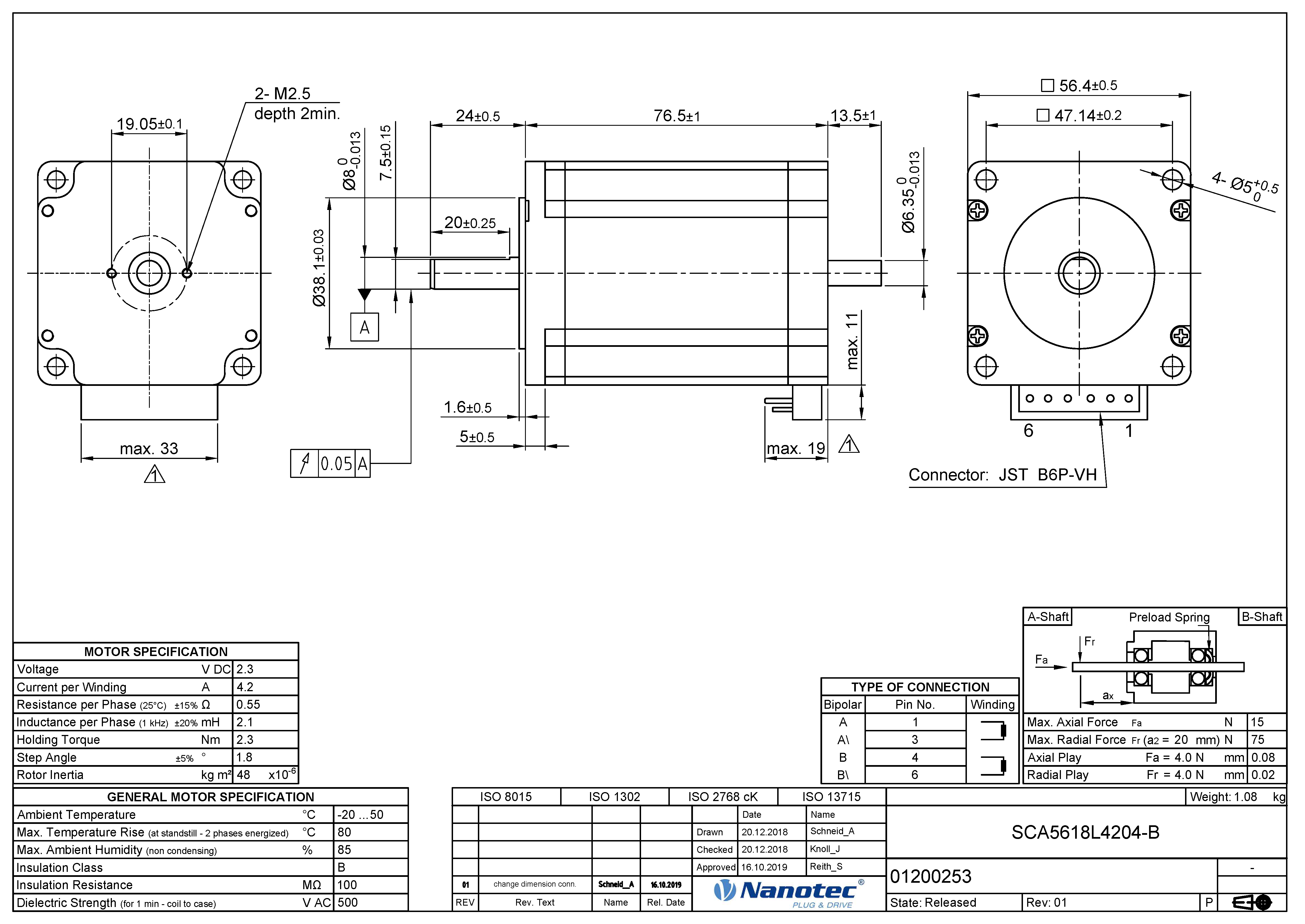

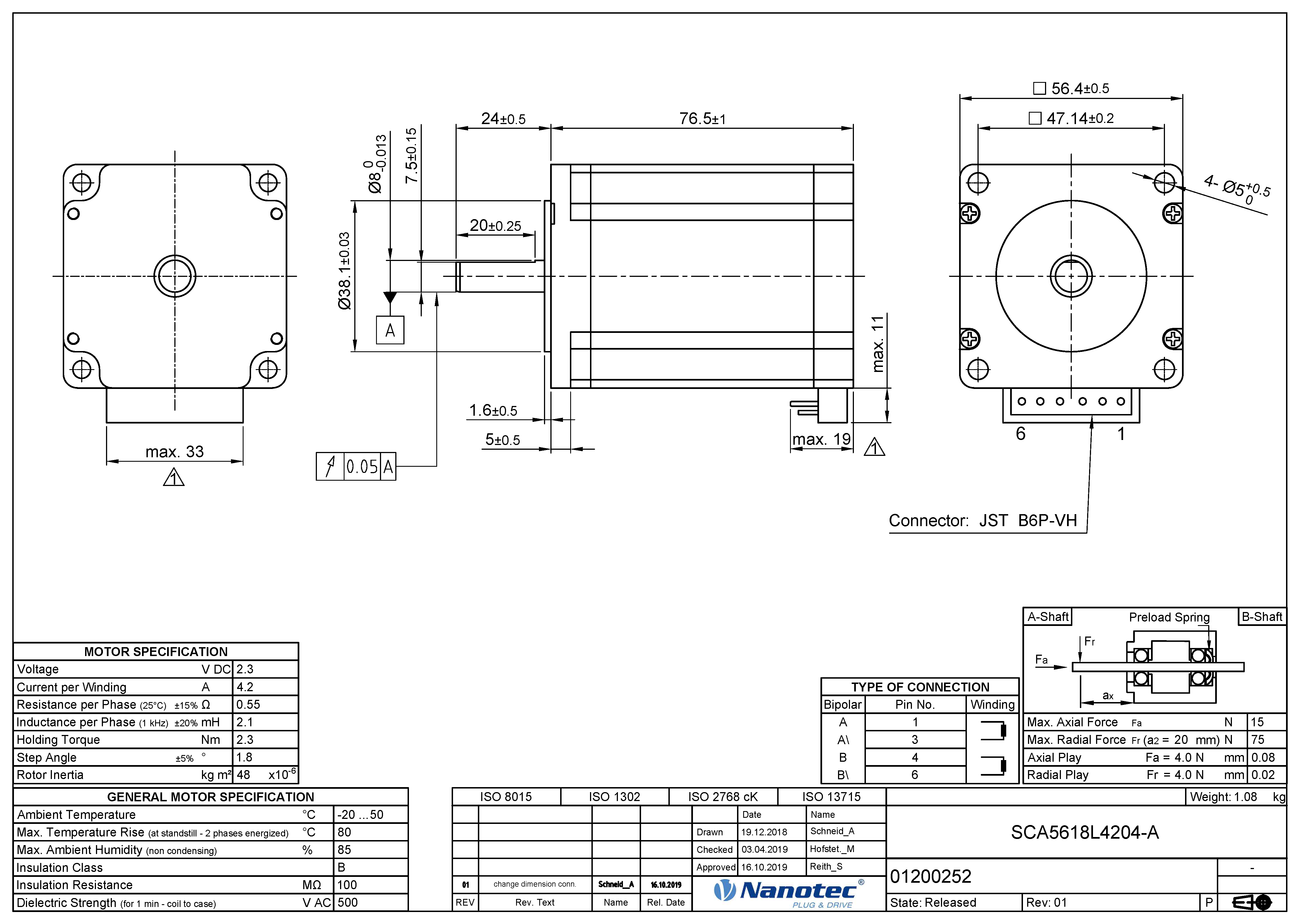

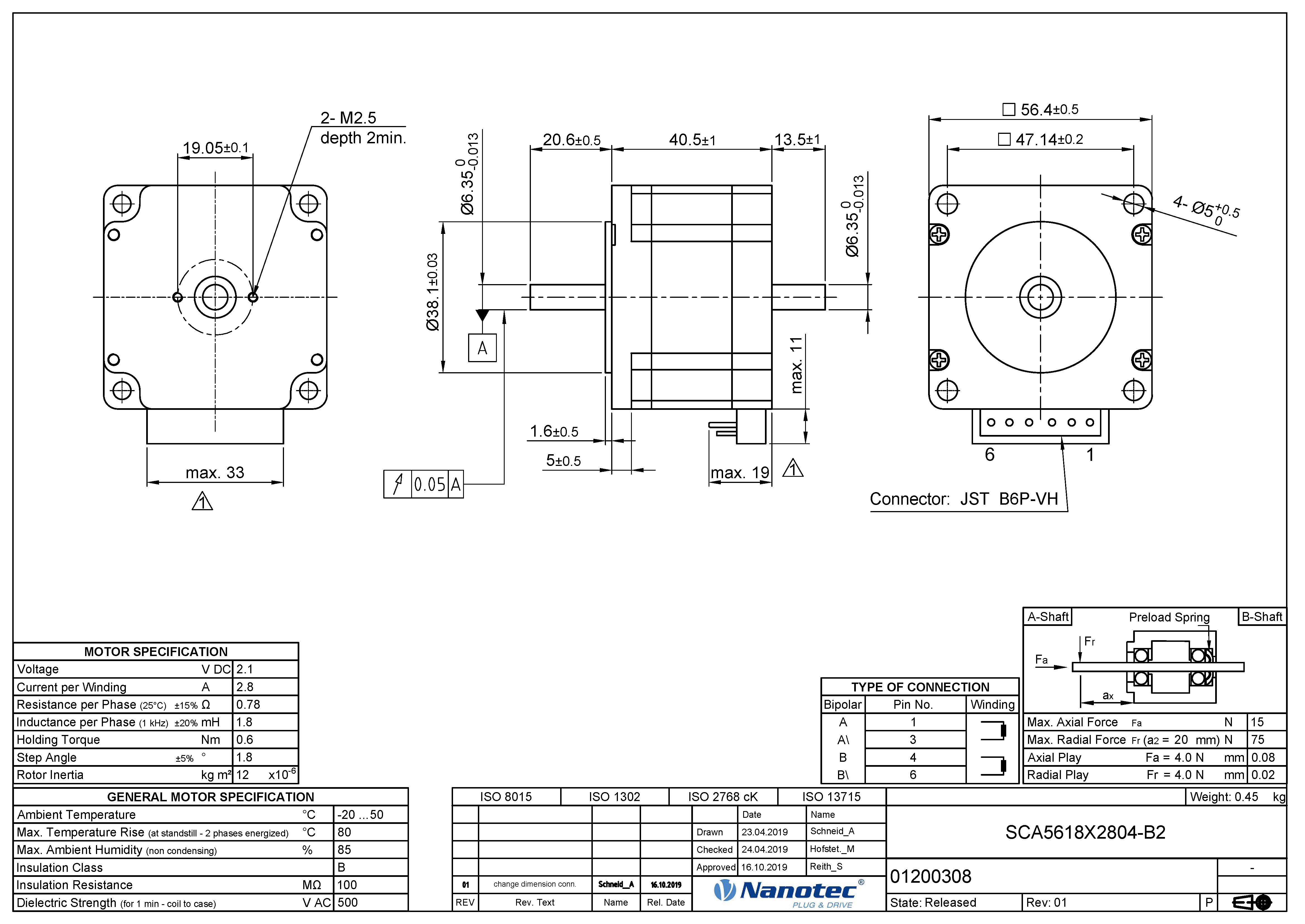

SCA5618X4204-A, SCA5618X4204-B, SCA5618X4204-A2, SCA5618X4204-B2,

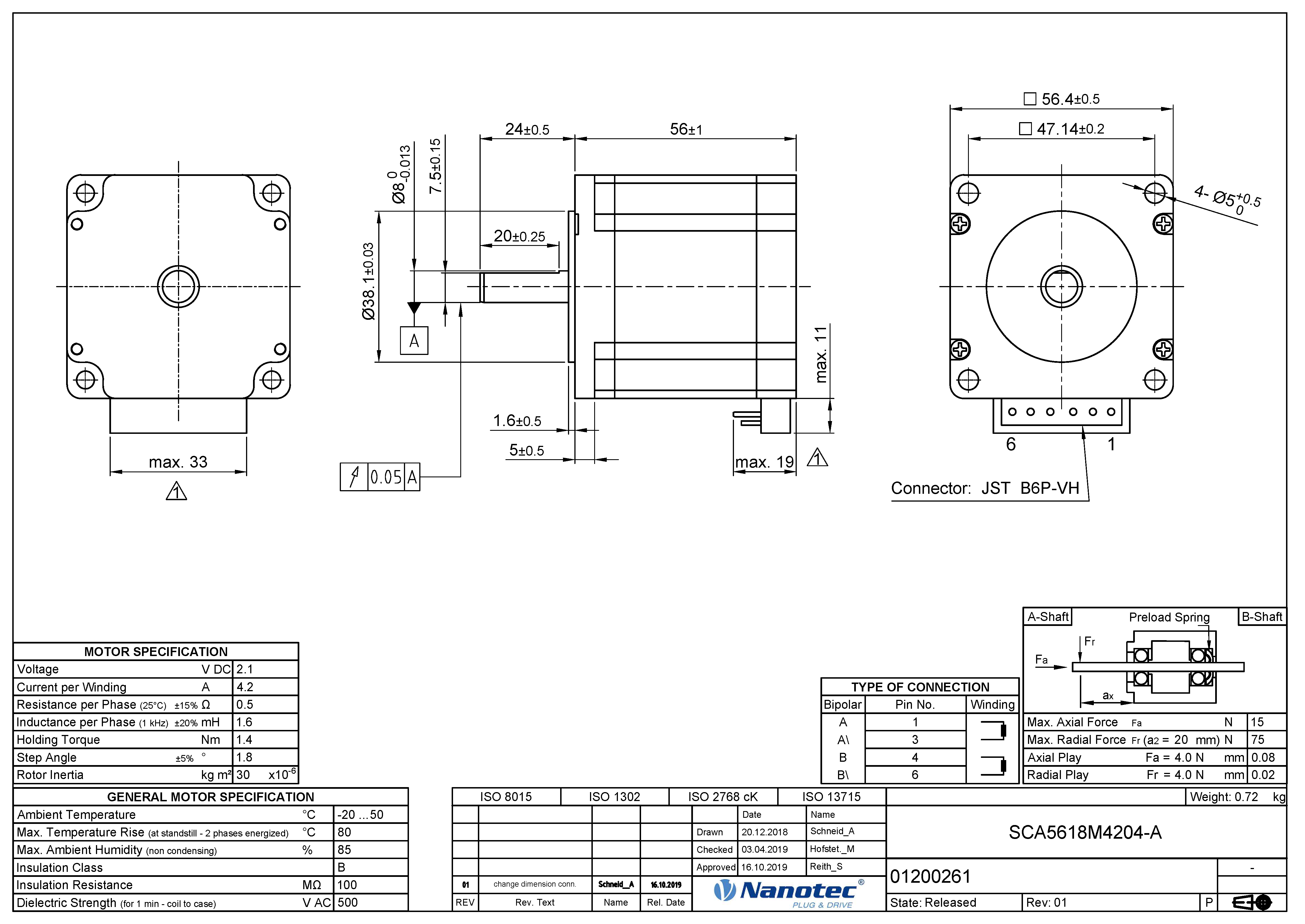

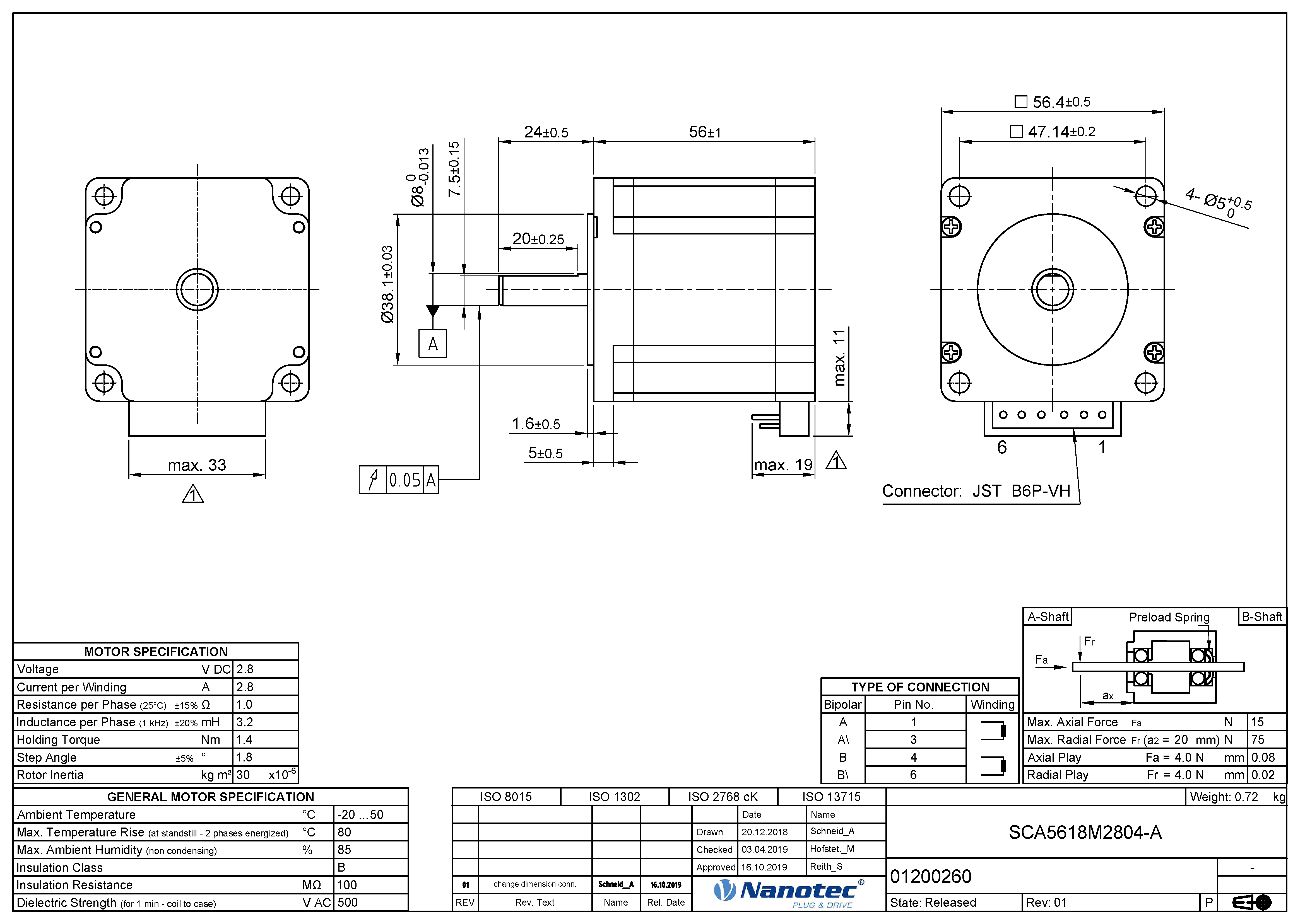

SCA5618M2804-A, SCA5618M2804-B, SCA5618M2804- A2, SCA5618M2804-B2, SCA5618M4204-A,

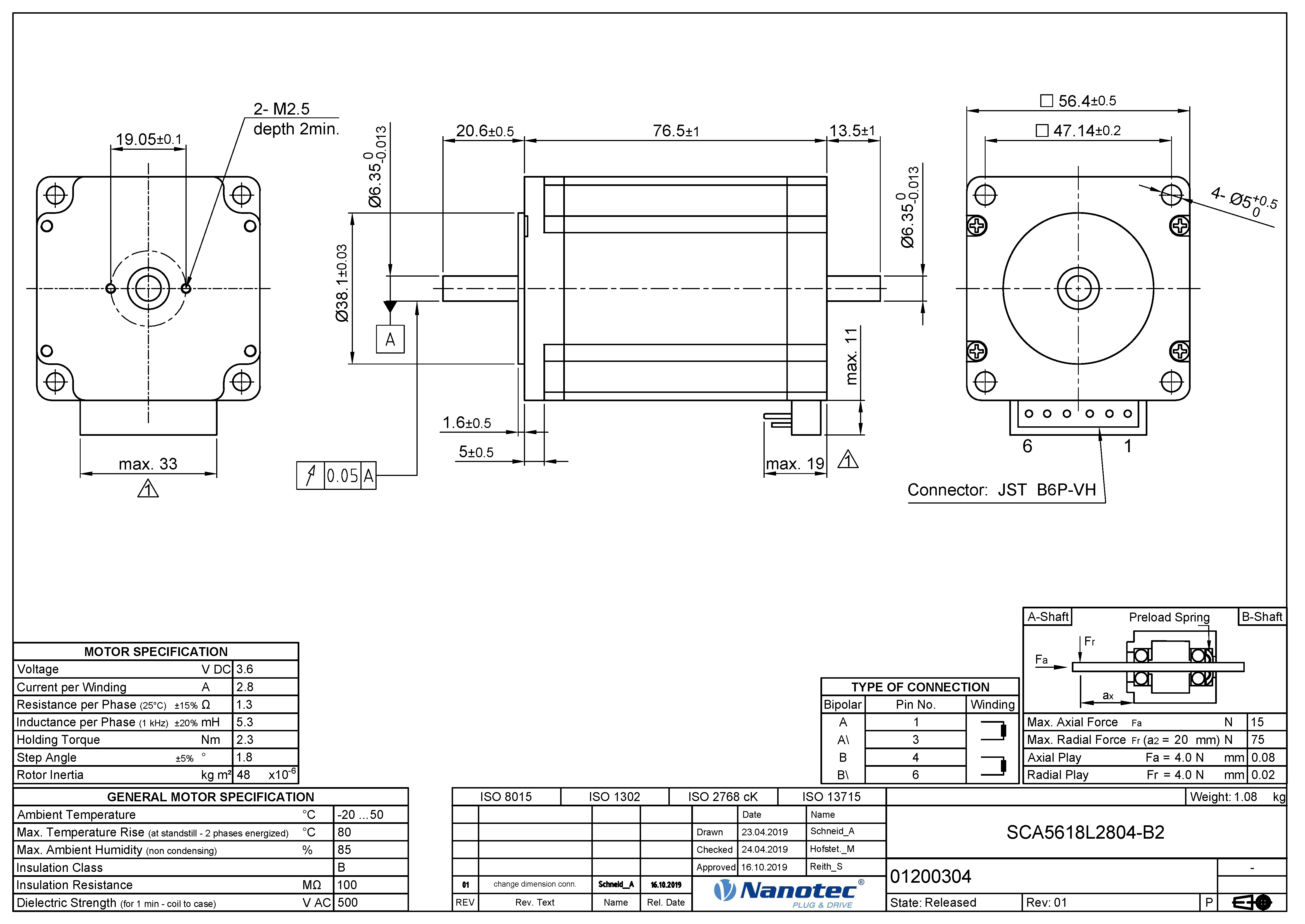

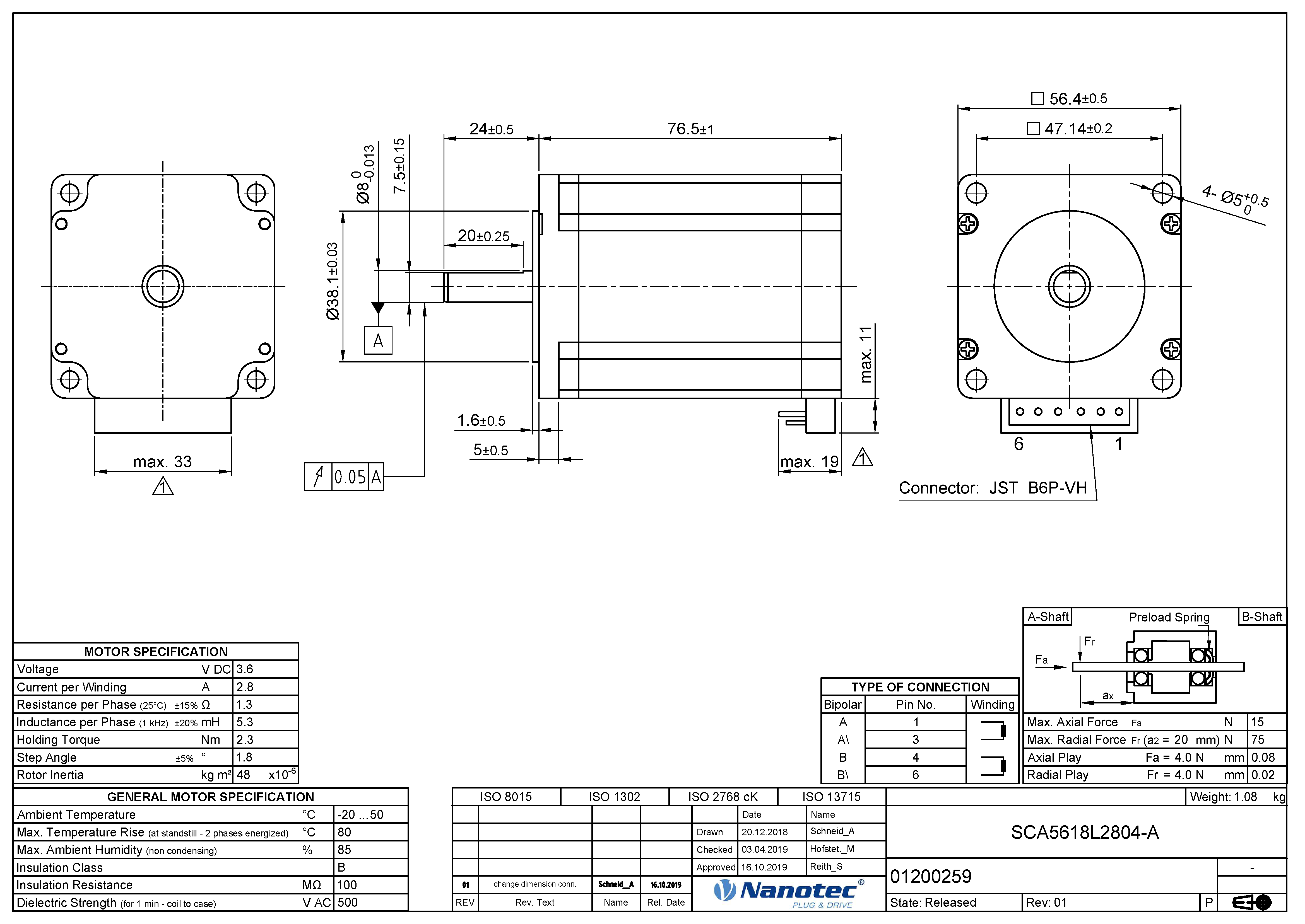

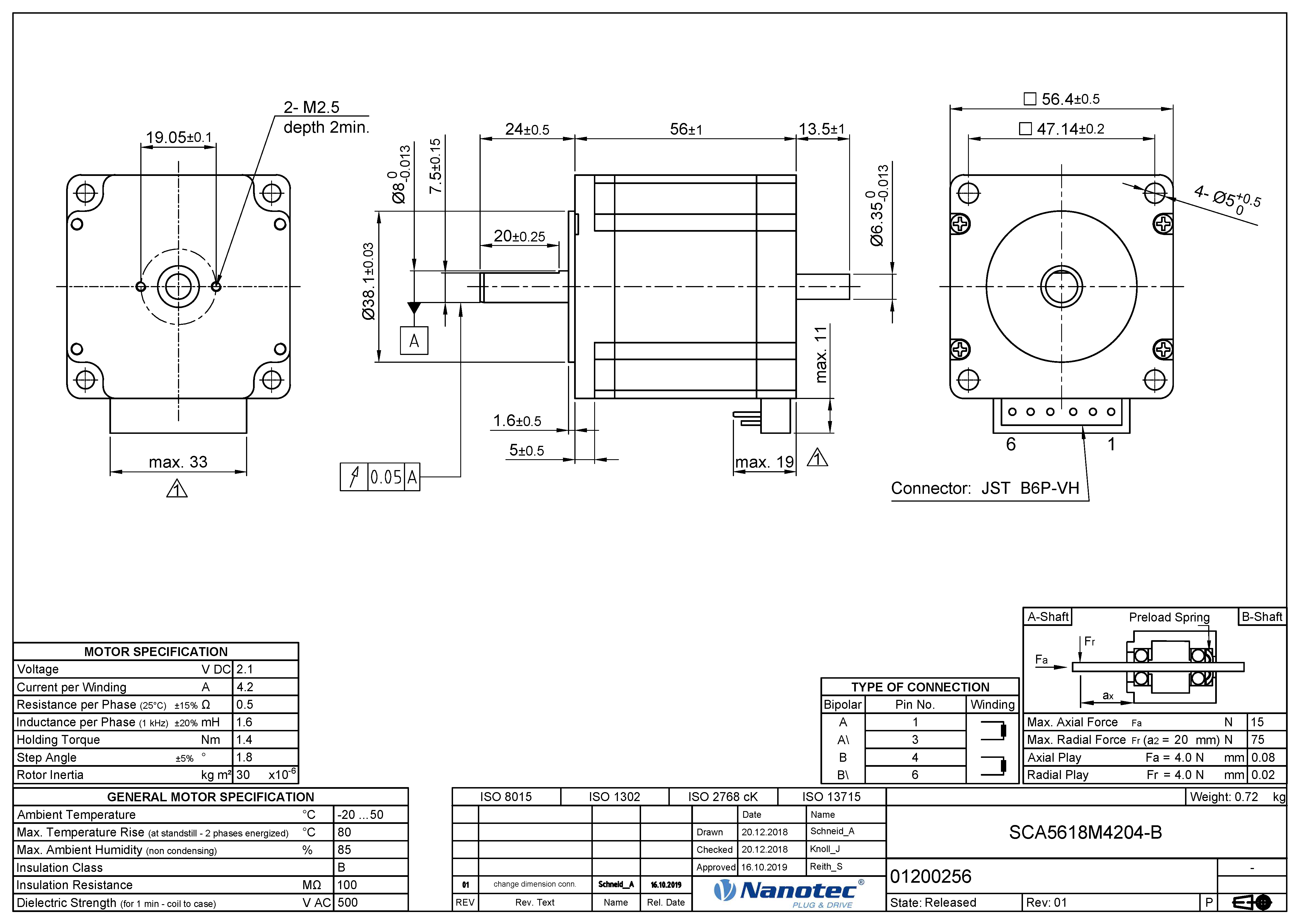

SCA5618M4204-B, SCA5618M4204-A2, SCA5618M4204-B2, SCA5618L2804-A, SCA5618L2804-B,

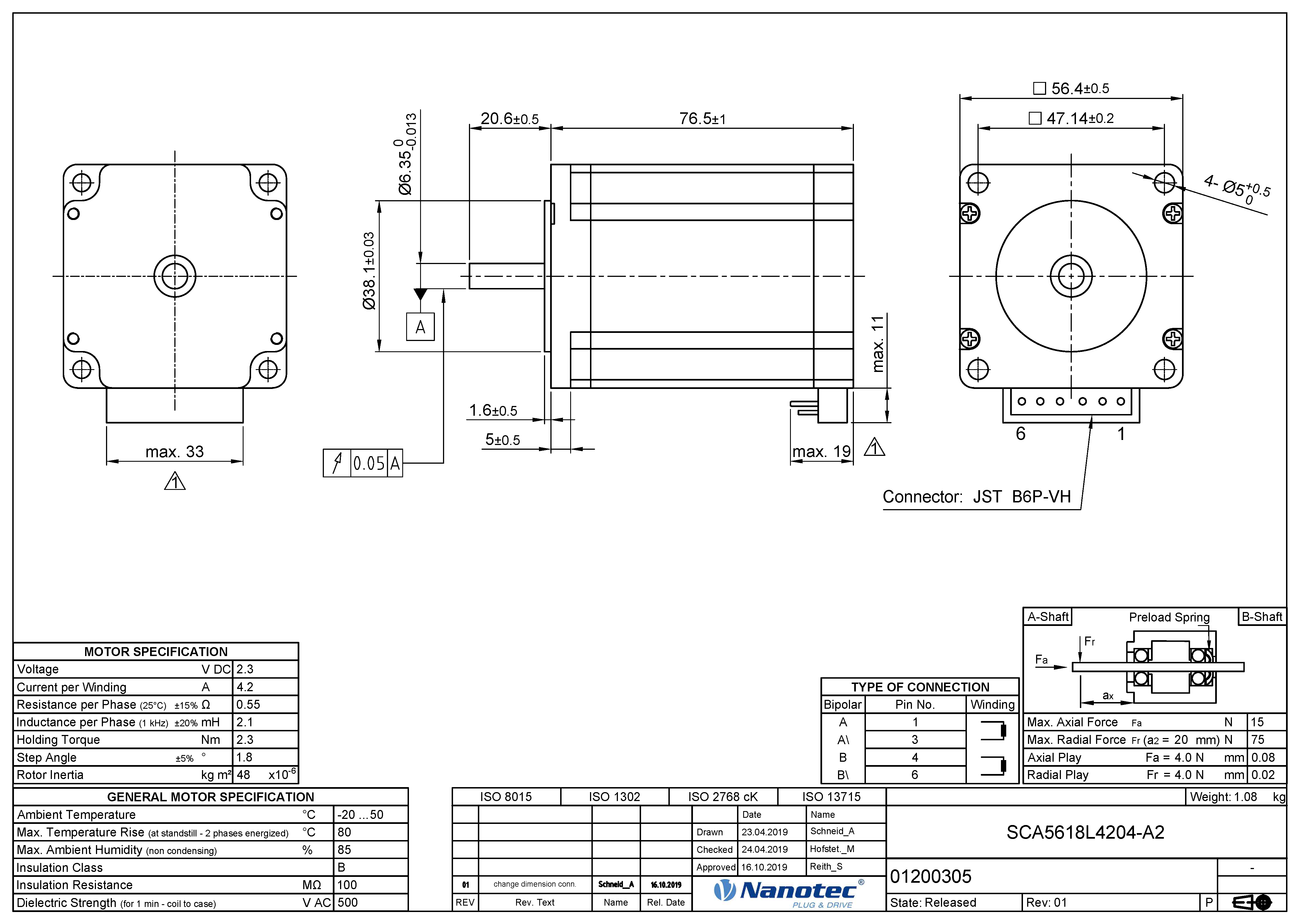

SCA5618L2804-A2, SCA5618L2804-B2, SCA5618L4204-A, SCA5618L4204-B, SCA5618L4204-A2,
SCA5618L4204-B2
|
|
